BGA Rework Station of HONTON HT-R392 Black Color,220V for Laptop Motherboard

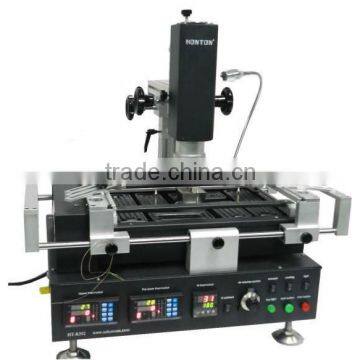

BGA Rework Station of HONTON HT-R392 Black Color,220V for Laptop Motherboard thumbnail-1

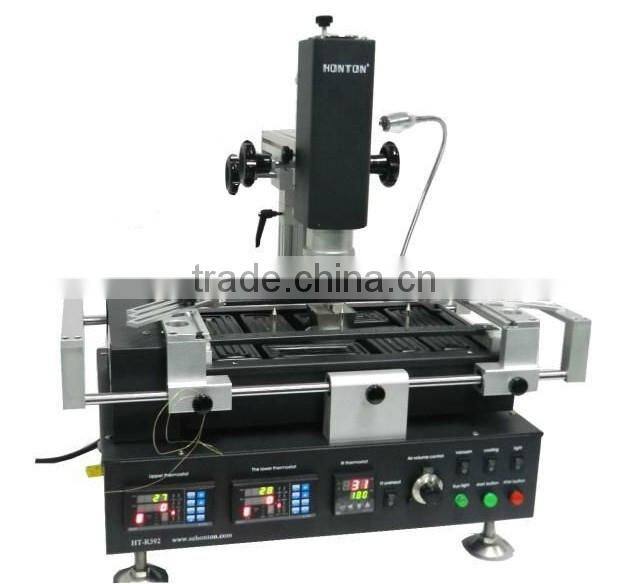

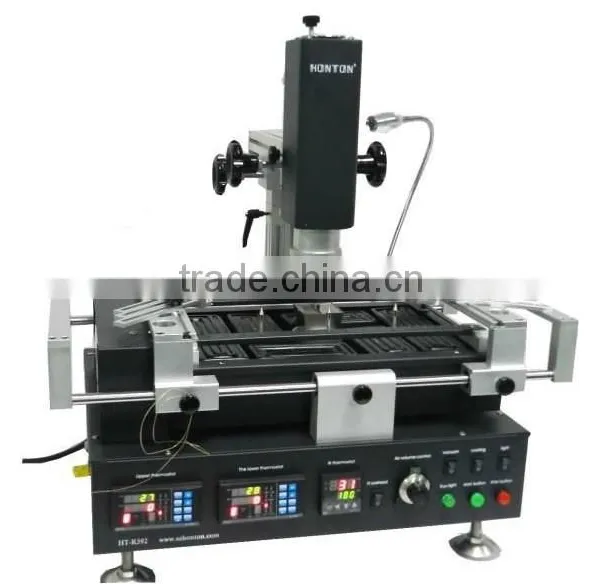

BGA Rework Station of HONTON HT-R392 Black Color,220V for Laptop Motherboard photo-1
US$ 1 - 690 MOQ: 1 Unit
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
HONTON
Model Number:
R392
Contact Supplier Request Quote Chat Now
Guangzhou Telesailor Electronics Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
GuangZhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name HONTON
Model Number R392
Voltage 220V/110V
Current 50/60 Hz
Dimensions 550*420*500mm
Weight 25KG
Usage Repair PCB Board
Certification CE Certificate
After-sales Service Provided Overseas service center available

BGA rework station of HONTON HT-R392 Black color,220V for laptop motherboard





































HT-R392 Hot Air BGA Rework Station

can be connected with computer for to watch external temperature in the computer.

It uses 3 temperature area independent control, temperature control more accurate. For big heat capacity PCB and other high requirements, lead-free solder can easily handle, max up to 320x375mm, v-shaped fissure card slot PCB positioning. HT-R392 BGA rework station is suitable for laptop computer motherboard, desktop computer motherboard, etc. Large circuit board maintenance, and mobile phone motherboard such small small-sized chip maintenance. features a pre heat feature and an upgraded pcb support system


                HT-R392 Hot Air BGA Rework Station Features: 3 Stage Rework Station



    • HT-R392 is 3 temperature area products.
    • HT-R392 fluctuation sirocco all USES high-grade temperature control meter.
    • HT-R392 fluctuation hot air heating, infrared preheating.
    • With high precision temperature control instrument imported raw materials (PLC). J heater precise control of BGA desoldering process.
    • The machine uses 3 temperature area independent control, temperature control more accurate.
    • The first temperature area. The second temperature area all can set 8 paragraph litre (drop) temperature + 8 section temperature control, can also store 10 team temperature curve.
    • The third temperature area USES far infrared heating board preheat, independent temperature control, ensure the welding process of PCB can comprehensively preheating,
    • The machine has the computer communication function, the built-in PC serial port, external temperature measuring interface, equipped with software, computer control can be realized.
    • Imported high-precision thermocouples, realize the temperature of precision detection.
    • Using upper heating and bottom heating temperature curve way walk alone, cross-flow rapid cooling fan, guarantee the principle in PCB welding process, won't be out of shape.
    • Desoldering and welding finished with alarm functions, equipped with vacuum pen, convenient desoldering suction trip after BGA.
    • PCB positioning of the card slot, v-shaped fissure of flexible and convenient portable universal fixtures, to protect PCB.
    • For big heat capacity PCB and other high requirements, lead-free solder can easily handle.
    • Sirocco can rotate 360 degrees arbitrary time-and-labor-saving, easily replaced. Equipped with a variety of sizes sirocco can be customized tip special requirements.
    • Suitable for laptop computer motherboard, desktop computer motherboard, etc. Large circuit board maintenance, and mobile phone motherboard such small small-sized chip maintenance
    • 1x HT-R390 Hot Air BGA Rework Station
    • 5x Nozzles (25x25, 29x 29, 34x34, 40x40, 50x50)
    • 1x Aluminium plate for BGA IC reballing
    • 1x Data Cable
    • 1x Manual
