Specifications
1)Hot air BGA rework station2)Free from the direct airflow impact from air conditione ,heater or
ventilator

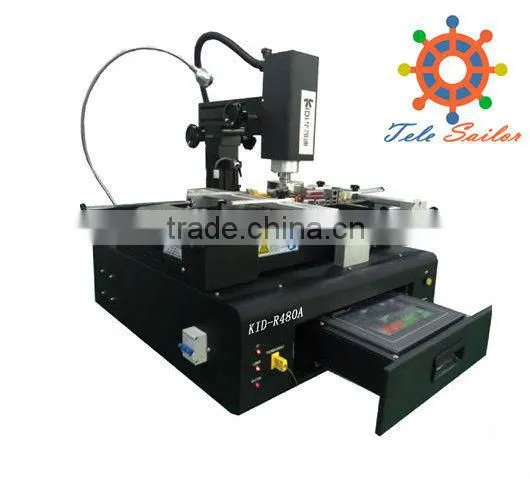

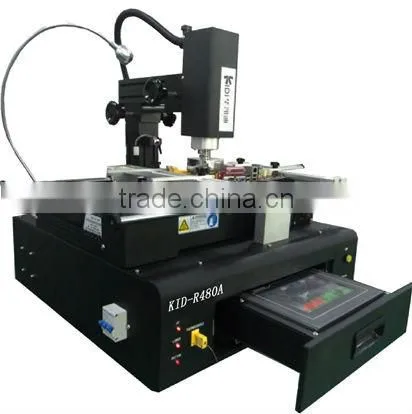

BGA Hot Air BGA Rework station of KID R480A
Features:
1) control circuit optimization design, make the power output and control system adopts photoelectric isolation technique, anti-interference capability and safety .
2)ARM32 bit microprocessor and industrial color hd 7 inches of touch screen integration design, system operation speed faster and more stable
3)The upper and lower fan speed from 0 ~ 100% arbitrary adjustable, for small BGA need breeze particularly convenient during welding
4)Good heating material produces high temperature breeze, precise control of BGA removal and welding process
5)Mobile heating head, can be about before and after any move, convenient operation
6)Touch screen man-machine interface, real-time temperature curve display, it can display set curve and temperature curve
7)Hd touch screen, the operation is convenient to watch directly
8)Top and bottom air respectively according to the temperature setting accurate temperature control, bottom infrared temperature heating temperature area, reasonable temperature control configurations that return
9)BGA weld zone support frame, can fine the supporting height to limit welding area local subsidence
10)Strong cross flow fan, fast cooling down heating zone
11)Multi-function PC B positioning support, PCB plate location, convenient, and at the same time, apply the opposite sex plate installation location
12)Hand-held vacuum pen to be sucked BGA
13)Equipped with a variety of different size alloy hot air nozzle, easy to change, but according to actual requirements custom-made
14)Equipped with laser para device
15)This machine can be in different areas and different environment temperature automatically generate SMT standard temperature remove curve, manual set up machine song
Device disposition :
PCD board size :W20*D20~ W470*D420mm
Support Chip size : 2*2~60*60mm
Buttom heater : Infrared 2400W
Buttom Hot air heater : Hot air 800W
Up Hot air heater : Hot air 600W
Power :220V 50/60Hz
Mashine size : L675*W630*H650mm
