Specifications
BGA rework station1.can send out a specific wavelength of the far infrared.
2.canoutput the wide range of heat ,Temperature

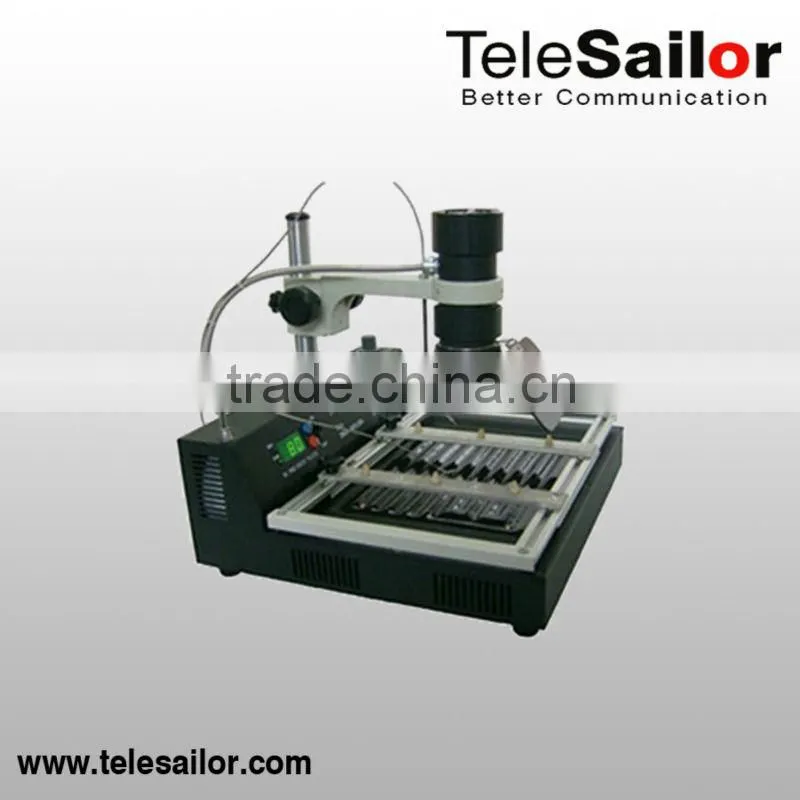

BGA rework station T870A
Features
1.Adopt infrared weld technology which independent exploration.
2.Use infrared heat,easy to cut through,heat proportion piercing tradition weld machine with sirocco.
3.Easily operate.Just need one day training.Can operation this machine.
4.Don't need weld tools.This machine can weld all the component of 35x35-50x50mm.
5.This machine has 800W heating system.widely to240x180mm.
6.Infrared heating don't have sirocco flow. Don't impact perimeter small component.Can suitable for all of the component,especially Micro BGA component.
7.Definitely can satisfy the computer, the notebook, the electricity swims and so on the BGA sealing off/repairs to request.Specially especially suits to the computer north and south bridge.
Technic parameter
Work floor size |
360X240mm |
Rated voltage and frequency |
AC220-230v 60/50Hz |
Complete machine power |
1000W |
Infra-red lamp body power |
150W |
Preheating chassis power |
800W |
Infra-red lamp body heating size |
Φ70mm(50x50mm) |
Preheating chassis preheating size |
240x180mm |
Infra-red lamp body temperature adjustable |
200°C-350°C |
Preheating chassis temperature adjustable |
60°C-200°C |
Instrument inventory
Welding table main body |
1 |
|
Infra-red lamp body |
1 |
|
Temperature sensor |
1 |
|
Board support of the circuit |
1 |
|
Power line |
1 |
|
user's manual(Compact disc) |
1 |
|
|
|
|
