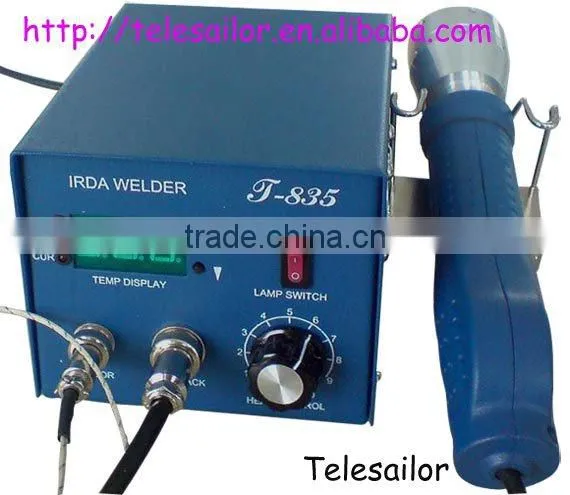

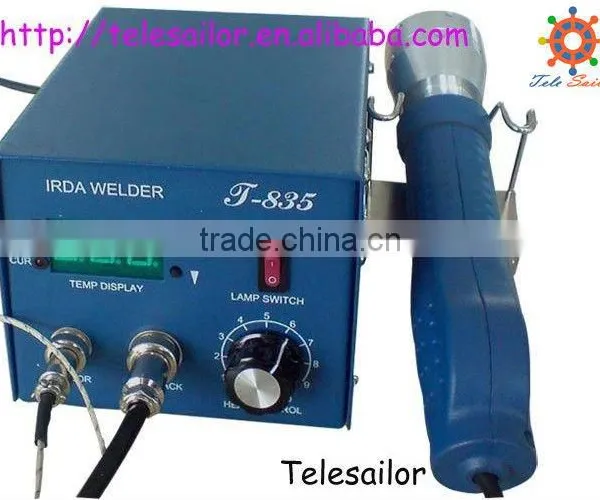

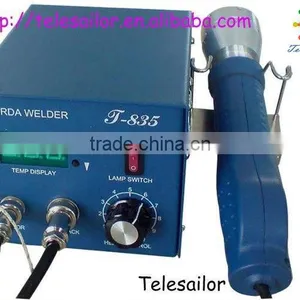

BGA IRAD Welde Station T835 With Hot Air Gun ,Digital Display
US$ 215 - 230
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Telesailor
Model Number:
T835
Payment & Shipping
Payment Methods:
Port of Shipment:
GuangZhou
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
The BGA Rework Station T835 With Preheating Oven T8120US$ 289 - 305MOQ: 1 Set -
T870A Rework StationUS$ 300 - 400MOQ: 1 Set
-
The BGA Irda Rework Station of T890US$ 890 - 940MOQ: 1 Piece
-
The BGA Rework Station of Preheating Oven for T8120US$ 74 - 80MOQ: 1 Piece
-
BGA IRDA Welder of Preheating Oven for HP-T8120US$ 118 - 130MOQ: 1 Piece
Place of Origin
Guangdong, China
Brand Name
Telesailor
Model Number
T835
Voltage
220V 110V
Rated Duty Cycle
50HZ/60Hz
Dimensions
30*29*19
Weight
3.5KG
Usage
Suitable to repair mobile phone ,computer
Specifications
1)welding machine BGA rework station .2)Infrared soldeing station adopt infrared
3) satisfy of phone, computer,notebooks etc
BGA IRDA WELDER T835
Products Features
1. The machine selects the infrared highly effective component to give off heat which independent exploration, adopt advanced PID intelligent controlling warm heating technology, controls warm precisely.
2. Can achieve to heat PCB board and component which contains lead or not,especially suit to BGA,SMD.
3. Use infrared heat, easy to cut through, heat proportion, don’t have sirocco flow. Don’t shift the small component on the PCB board,ensure the welding quality.
4. This machine has 600W heating system, widely to 120x120mm.Can use with the handhold infrared welder T-835.
5. Easily operate, can operate it through easy training.
Main Parameter
Work floor size |
200x240mm |
Rated voltage and frequency |
AC220-230v/AC110V 60/50Hz |
Complete machine power |
800W |
Preheating chassis power |
600W |
Preheating chassis size |
120x120mm |
Preheating chassis temperature adjustable |
0-450°C |
2. Technical parameter
Rated voltage and frequency |
AC220v/AC110v/50-60Hz |
Complete machine power |
300W |
Infra-red lamp power |
100W |
Infra-red lamp heating size |
Φ35mm |
Adjustable temperature of Infra-red lamp |
0°C-350°C |

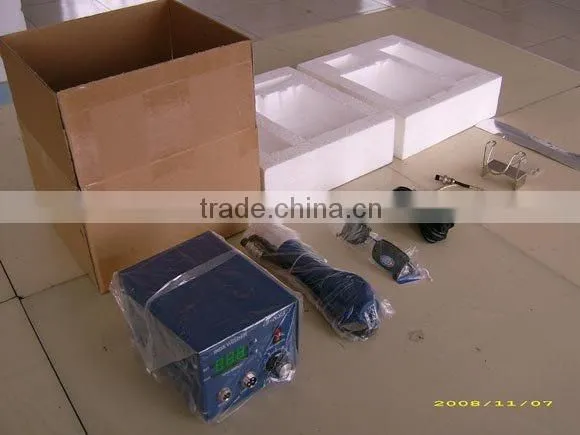

3. Main Parts
Name |
Model |
Quantity |
Welding table |
T-835 |
1 |
Infra-red lamp |
1 |
|
Temperature sensor |
K-degree |
1 |
Infra-red lamp holder |
1 |
|
Power cable |
0.75x1.8m |
1 |
user manual(Compact disc)) |
1 |
