shantui dozer 220hp for sale
- 100 Set / Sets per Month
- Shanghai Tianjin
- T/T L/C Credit Card PayPal
- Used 320 bulldozer Shantui SD32
- Price of used large bulldozer Shantui SD22
- Second-hand Shantui 220 bulldozer SD22 price
- Used Shantui SD22 bulldozers for sale
- new bulldozer CT32 rubbish HYDRAULIC crawler dozer for construction machine new DOZER
- new bulldozer CT32 HYDRAULIC crawler dozer for construction machine new DOZER
Product Details
Place of Origin: | Shandong, China | Brand Name: | SHANTUI | Model Number: | SD22 |
Condition: | New | Moving Type: | Crawler Bulldozer | Machine Weight: | 23.4t |
Dimension(Long * Breadth * High): | 5750X3725X3395 | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Shantui bulldozer sd22,SD22 bulldozer transmission spare parts for sale
shantui bulldozer sd22,SD22 bulldozer transmission spare parts for sale

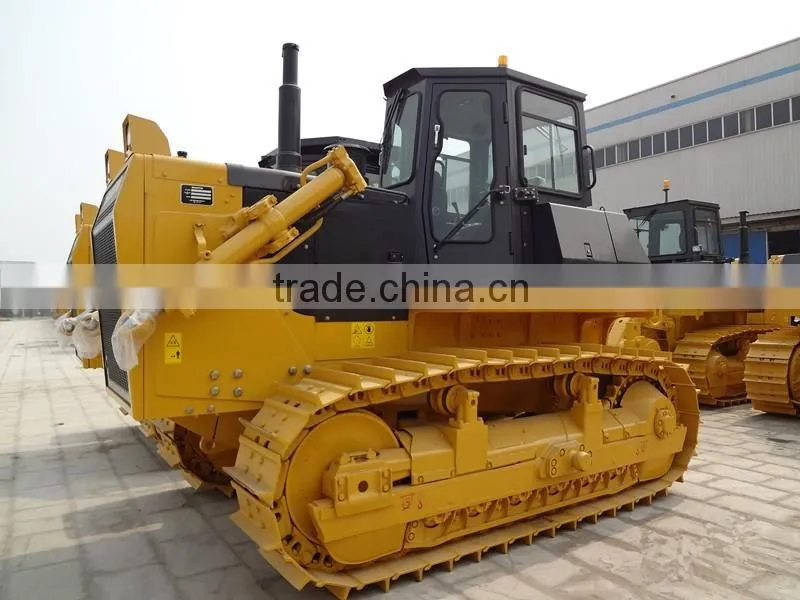

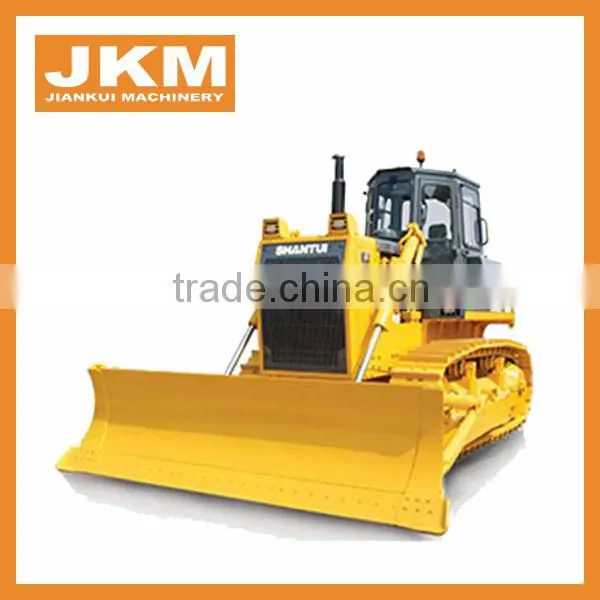

The SD22 bulldozer is the new generation of the TY220. It's equipped with a hexahedron damping cab, which features a beautiful design, wide visibility, and comfortable operation, as well as a highly efficient charged engine, which has excellent power, reliability and a long service life. It is also equipped with an improved hydraulic drive system with hydraulic control technology, front-extending anti-rolling frame and an advanced structure, providing reliable quality and convenient and flexible operation. The SD22 uses Shantui's patented central lubrication technology, central pressure measurement and automatic track tensioning, as well as a GPS satellite positioning system. With options such as straight tilt, angle, U type and semi-U type blades, single/triple shank rippers and a mechanical winch, the SD22 has various capabilities allowing it to adapt to and work in a wide range of earth moving projects.
ITEM | UNIT | SD22 |
L×W×H (Ripper not included) | mm | 5750×3725×3395 |
Operating weight (Ripper not included) | t | 23.4 |
Engine | - | Cummins NT855-C280S10 |
Weichai WD12G240E26 | ||
Rated power | kW/rpm | 162/1800 |
Gradeability | ° | 30 |
Blade type | - | Straight tilt blade U-blade |
Semi-U blade Angle blade | ||
Blade width | mm | Straight tilt blade 3725×1315 |
U blade 3800×1343 | ||
Semi-U blade 3725×1374 | ||
Angle blade 4365×1055 | ||
Dozing capacity | m3 | Straight tilt blade 6.4 |
U blade 7.5 | ||
Semi-U blade 7.0 | ||
Angle blade 4.7 | ||
Ma× drop below ground of blade | mm | 540 |
Lift height of blade | mm | 1210 |

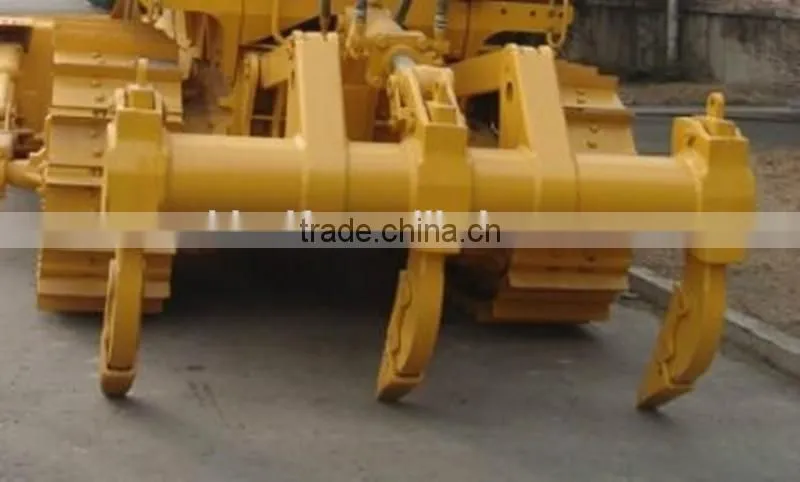

Ripper type | Single ripper Three-shank ripper | |
Ripping depth of ripper | mm | Single ripper 695 |
Three-shank ripper 666 | ||
Lifting height of ripper | mm | Single ripper515 |
Three-shank ripper 555 | ||
Number of carriers (each side) | - | 2 |
Number of track rollers (each side) | - | 6 |
Number of track shoes (each side) | - | 38 |
Width of track shoe | mm | 560 |
Track gauge | mm | 2000 |
Ground length and ground pressure | mm/MPa | 2730-0.077 |
Pitch | mm | 216 |
Forward speed | km/h | 0–3.6 |
0–6.5 | ||
0–11.2 | ||
Reverse speed | km/h | 0–4.3 |
0–7.7 | ||
0–13.2 |
--Jining Infront Construction Machinery Co., Ltd is specialised in construction machinery and spare parts. And has rich experience in exproting under the support of the goverment.
-- Main products: undercarriage parts, engine parts, hydraulic parts, transmission ass’y, torque convertor ass’y, GET parts, structural
-- High quality competitive price: High quality products at competitive price are guaranteed. Every year great number of them are exported to Asia, Europe, America, Africa etc.
More Original spare parts
- Hydraulic Spare Parts
Main Valve, Main Pump, Solenoid Valve, Boom/Arm/Bucket Cylinder, Final Drive, Travel Motor, Swing Machinery, Swing Motor…
- Engine Spare Parts
Turbocharger, Oil Pump, Fuel Injection Pump, Water Pump, Alternator, Starting Motor…
- Fuel Tank And Related Parts
Strainer, Sensor, Fuel Tank, Water Separator,…
- Operator’S Cab Spare Parts
Cab, Monitor, Controller, Engine Controller, Seat, Air Conditioner, Air Compressor…
- Work Equipment
Tube, Cylinder, Arm, Bucket Cylinder, Link, Bucket Link, Bushing, Bucket, Tooth, Adapter Cutter…
- Electrical System
Cable, Battery, Alternator, Light, Relay, Monitor, Starting Motor, Air Conditioner, Controller…
- Cooling System
Radiator Core, Oil Cooler, After Cooler, Condenser, Air Cooler, Radiator…
- Undercarriage Spare Parts
Track Shoe, Track Link, Track Roller, Carrier Roller, Sprocket, Front Idler …
