Name:
Magnetic Switch
Magnetic sensor

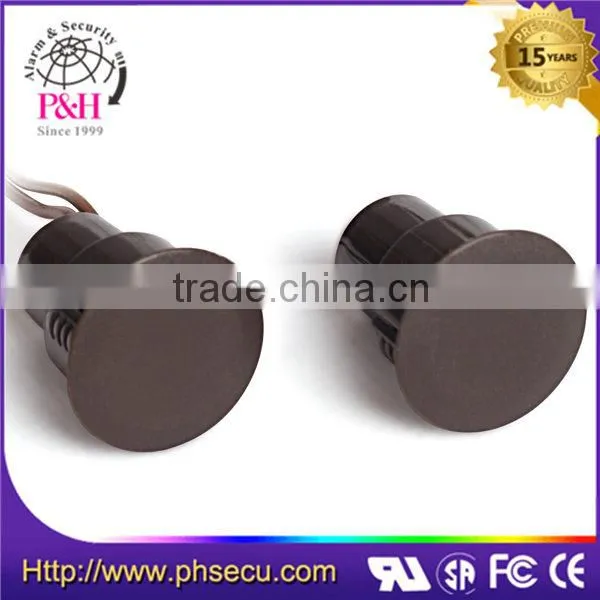

Self-locking housing door magnetic contact switch
Features
1. 3/4 inch diameter press fit contact
2. Suitable for steel door install
3. Self-locking housing
4. Longer leads available
5. Magnet : NdFeB
5. Size: Dia24*25L mm
6. Color : white, brown, grey
7. ABS Housing
Characteristic
Japanese UL listed OKI Reed
Open Loop or SPDT is available if required
Deactivated Rhodium Plated Reed
Technical Data:
Recessed Mounted:
Model |
Loop Type |
Reed Form |
Operating Gap Inch (mm) |
Max Contact Resistance (Ohm) |
Max Rating Current (mA) |
Max Switching Voltage (VDC) |
ER133 |
closed |
NO |
1/2(10±5) |
0.2 |
500 |
100 |
ER135 |
closed |
NO |
3/4(18±5) |
0.2 |
500 |
100 |

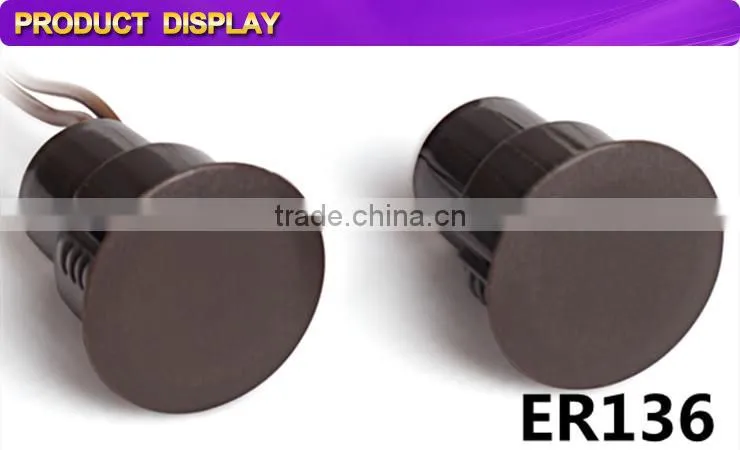

ER136 |
closed |
NO |
1.5(40±10) |
0.2 |
500 |
100 |
ER140 |
closed |
NO |
3/4(20±5) |
0.2 |
500 |
100 |
ER141 |
closed |
NO |
3/4(20±5) |
0.2 |
500 |
100 |
ER142 |
closed |
NO |
3/4(20±5) |
0.2 |
500 |
100 |
ER143 |
closed |
NO |
3/4(20±5) |
0.2 |
500 |
100 |
ER144 |
closed |
NO |
3/4(20±5) |
0.2 |
500 |
100 |
THE MAGNETIC CONTACTS FOR YOUR CHOOSE:
Overhead Mounted:
Surface Mounted:
Recessed Mounted:
Four Care You Need!
You care for produce!
--We supply high quality products by using qualified materials and sophisticated equipment
You care for price!
--We offer reasonable price by improving the technology and management
You care for service!
--We provide all-sided services by our efficient teams
You care for innovation!
--We issue 4 to 8 new products per year
As a market-driven and customer -centric company.P&H strive to create products and services that enhance human life by continually developing innovative technologies centering on the fields of Alarm and Security.
