Help CenterWired Door and Window Magnetic Contact Switch
Related Products
Name
Overhead door magnetic switch with OKI reed

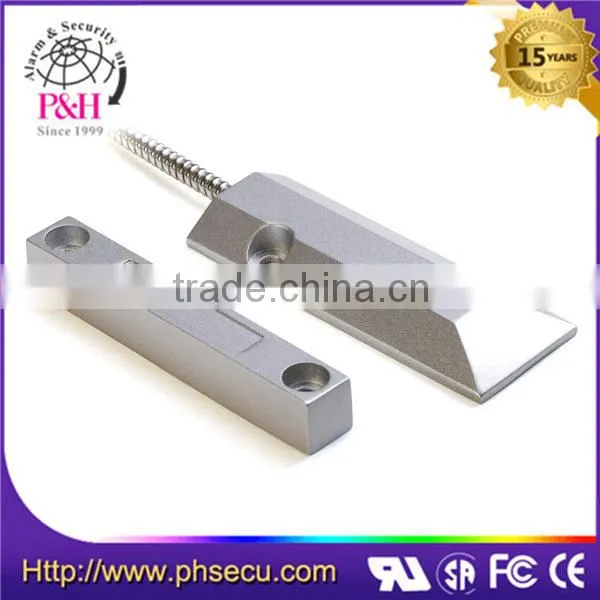

Wired door and window magnetic contact switch
Features
1. Switch & magnet concealed in polished alloy-zinc ot alloy-aluminum die-cast housing
2. 20 inch (50cm) centre leads with nd 15 inch (38cm) armored cable
3. Miniature floor mount
4. Magnet : NdFeB
5. Color : grey
6.Reed: OKI®
7. Long cable available on request
Characteristic
Japanese UL listed OKI Reed
Open Loop or SPDT is available if required
Deactivated Rhodium Plated Reed
Technical Data:
Overhead Mounted:
Model |
Loop Type |
Reed Form |
Operating Gap Inch (mm) |
Max Contact Resistance (Ohm) |
Max Rating Current (mA) |
Max Switching Voltage (VDC) |

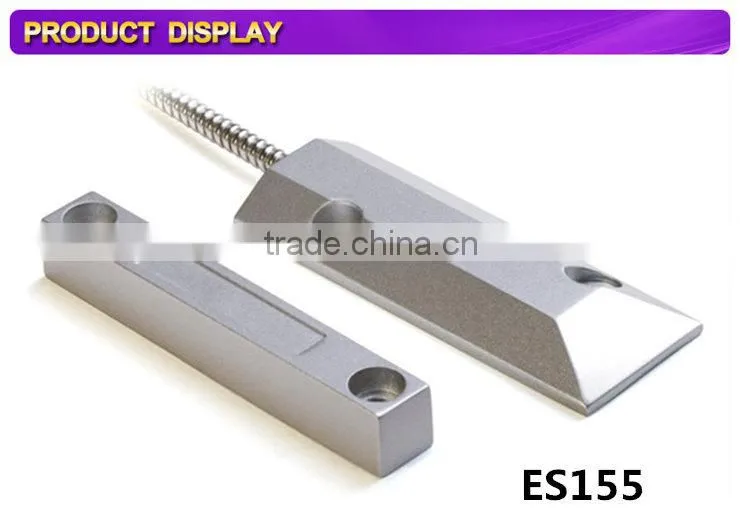

ES155 |
closed |
NO |
3(70±5) |
0.2 |
500 |
100 |
ES156 |
closed |
NO |
1.5(40±10) |
0.2 |
500 |
100 |
ES158 |
closed |
NO |
2(50±10) |
0.2 |
500 |
100 |
THE MAGNETIC CONTACTS FOR YOUR CHOOSE:
Overhead Mounted:
Surface Mounted:
Recessed Mounted:
