Name
Detector
HS51P-2 2-wire Smoke and Heat Detector
HS51P-4 4-wire Smoke and Heat Detector

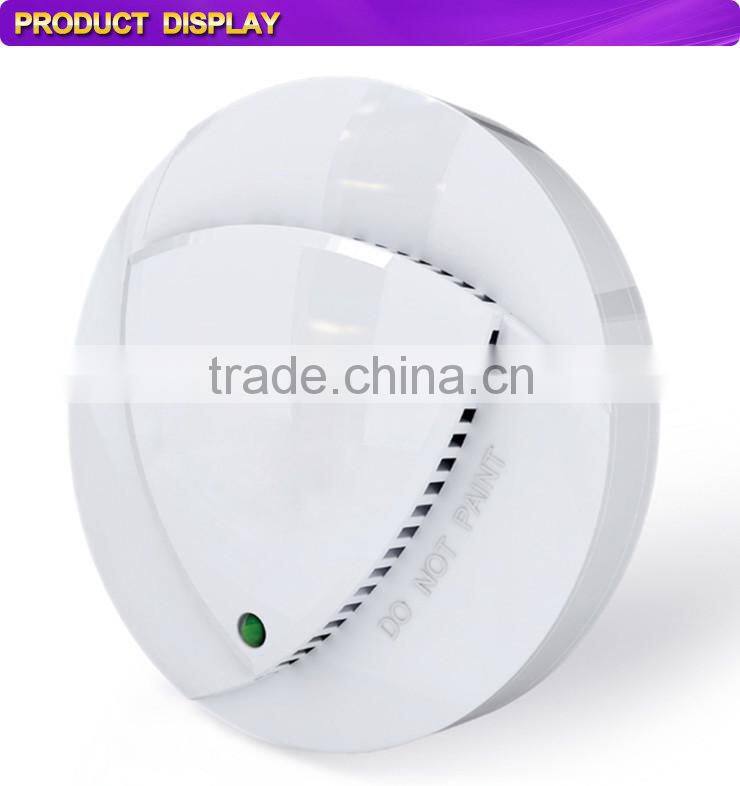

Photoelectric smoke and heat alarms
Features
Designed to comply with UL539 standards
2 wire or 4 wire optional
Fixed temperature 57ºC,135F heat sensor
Non-polar power input
Extended warranty
Easy Installation and maintenance
Characteristic
Removable labyrinth for easy cleaning
Twist-off mounting for fast installation
Technical Data:
Model | HS51P-2 | HS51P-4 |
Operating Voltage | DC9~35V | |
Standby Current | 55uA | 12mA(NC), 2mA(NO) |
Alarm Current | 22mA@DC12V, 40mA@DC24V | 3mA(NC), 15mA(NO) |
Alarm Output | Remote LED indicator | Relay output (N.O/ N.C) and LED flash |
Smoke Alarm Density | 2.06%/ft | |
Alarm Temperature | 57ºC (135F) | |
Detecting Area | 80 square meter (with the installation height of 6m-12m), and 60 square meter (with the installation height less than 6m) | |
Installation Method | Ceiling Mounted | |
Operating Temperature | -10°C ~ +55°C | |
Operating Humidity | Less than r equal to 95%RH | |
Dimensions | 100mm(Dia)x46mm(H) | |
