Name
HS51P-2 2-wire Smoke and Heat Detector
HS51P-4 4-wire Smoke and Heat Detector

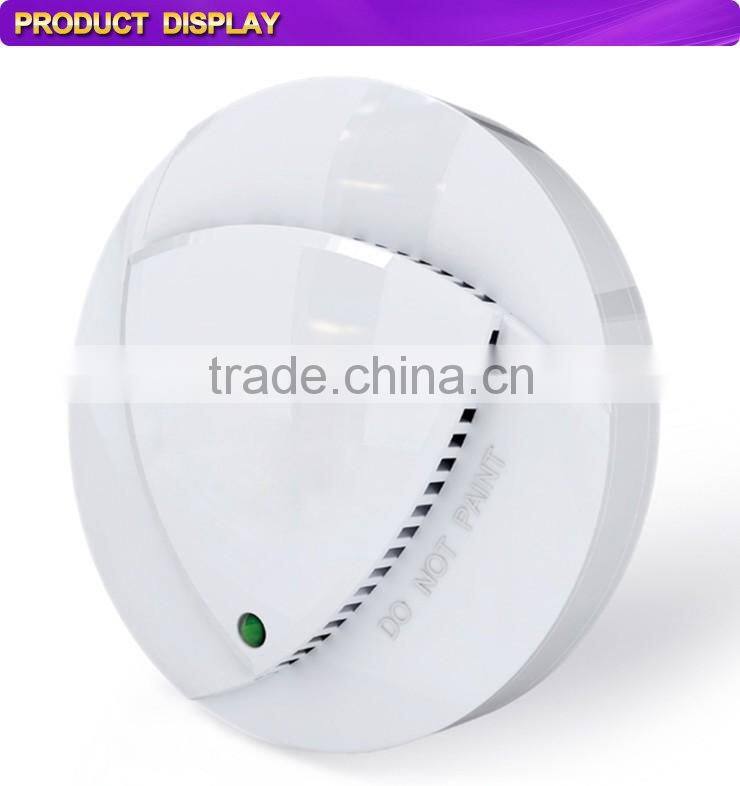

Fire alarm combined smoke and heat detector
Features
Designed to comply with EN54 standards
2 wire or 4 wire optional
Fixed temperature 57ºC,135F heat sensor
Non-polar power input
Extended warranty
Easy Installation and maintenance
Characteristic
Removable labyrinth for easy cleaning
Twist-off mounting for fast installation
Technical Data:
Model |
HS51P-2 |
HS51P-4 |
Operating Voltage |
DC9~35V |
|
Standby Current |
55uA |
12mA(NC), 2mA(NO) |
Alarm Current |
22mA@DC12V, 40mA@DC24V |
3mA(NC), 15mA(NO) |
Alarm Output |
Remote LED indicator |
Relay output (N.O/ N.C) and LED flash |
Smoke Alarm Density |
2.06%/ft |
|
Alarm Temperature |
57ºC (135F) |
|
Detecting Area |
80 square meter (with the installation height of 6m-12m), and 60 square meter (with the installation height less than 6m) |
|
Installation Method |
Ceiling Mounted |
|
Operating Temperature |
-10°C ~ +55°C |
|
Operating Humidity |
Less than r equal to 95%RH |
|
Dimensions |
100mm(Dia)x46mm(H) |
|
