Name

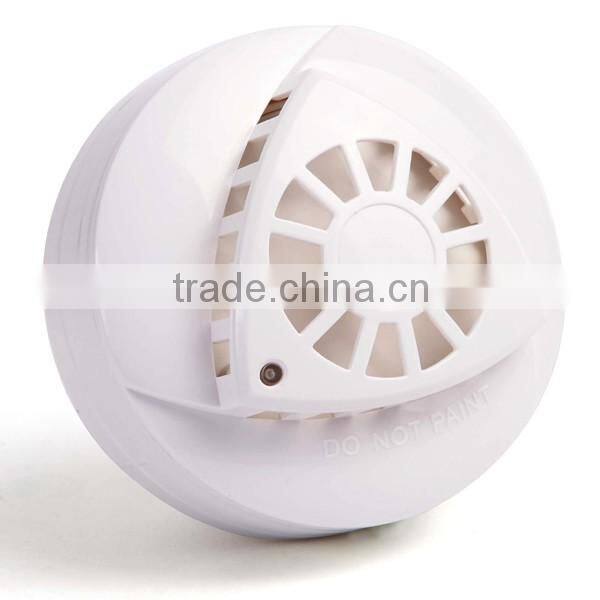

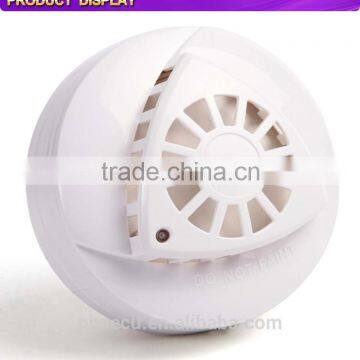

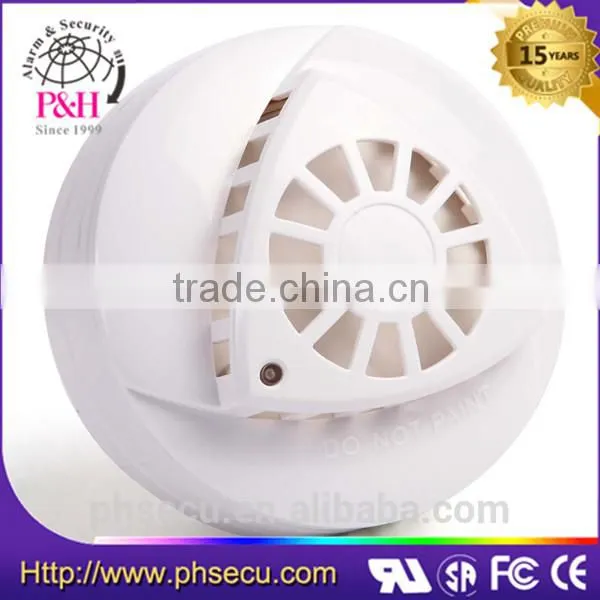

Conventional Heat Detector
2 wire 24V Fire Alarm Intelligent Fixed Infrared Heat Detector & Base
Features
1. Remoted LED indicator output( 2 wire)
2.Low Power consumption
3. Non-polar input power supply
4. Easy Installation and maintenance
5.Extended warranty
Technical Data
| Model | H63-2 | H63-4 |
| Voltage Range | DC9-35V | |
| Standby Current | 50uA | |
| Alarm Current | 25mA@24V | 22mA@12V, 40mA@24V |
| Alarm Output | Remote LED output | Relay output & LED Flash |
| Installation Method | Ceiling Mounted | |
| Operating Temperature | -10°C ~ +50°C | |
| Operating Humidity | Less than or equal to 90%RH | |
| Dimensions | 100mm(Dia)*48mm(H) | |
Ordering Information
| Model | Details | |
| H63-2-FH | 2 wire Fixed Temperature (57℃,135F) heat detector | |
| H63-2-RH | 2 wire Rate of Rise (8-15℃/min) heat detector | |
| H63-4-FH | 4 wire Fixed Temperature (57℃,135F) heat detector | |
| H63-4-RH | 4 wire Rate of Rise (8-15℃/min) heat detector | |
