Wholesale Infrared Photoelectric Beam Detector
- Shenzhen
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | P&H | |
| Model Number | EM100-B, EM100-B | Usage | Other, Security protection |
Product Description
Name

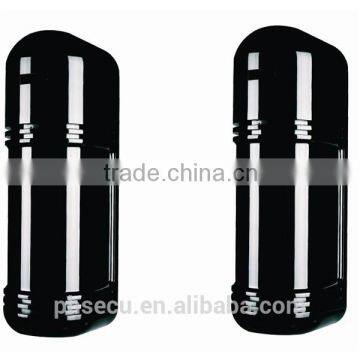

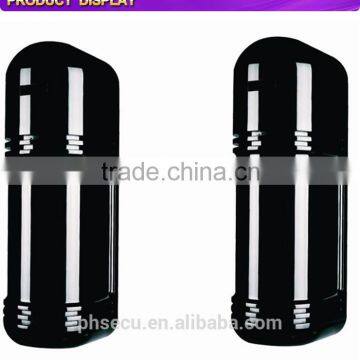

Photoelectric Beam Detector
Infrared Triplicte Photoelectric Beam Detector
Features

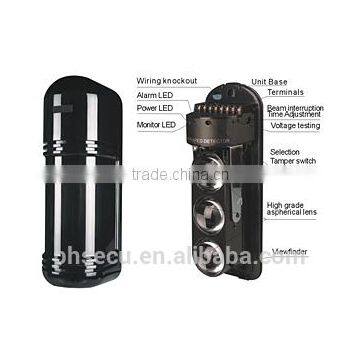

Triplicte Photoelectric Detector EM-B50/75/100/150/200/250
Triplicate synchronized pulsed beams designed for greater stability
Design Durability
Frost and dew protection
High grade aspherical lens
99.5% beam blocking stability
Adjustable beam interruption period
Quick optical and voltage alignment to speed up positioning
A.G.C (Automatic Gain Control) Circuit
Technical Data
Specifications Model | EM100-B100 | EM100-B150 | EM100-B200 | EM100-B250 |
Detection Method | Infrared photoelectric | |||
Range Outdoor | 100m | 150m | 200m | 250m |
Range Indoor | 300m | 450m | 400m | 750m |
Beam Characteristics | Pulsed infrared dual beams | |||
Interruption period | 50~700msec(selectable) | |||
Power input | DC12~24V/AC11~18V | |||
Current consumption | 80mA max | 90mA max | 100mA max | 100mA max |
Alarm period | 2sec(±1)nominal | |||
Alarm output | Form C relay(AC/DC30V 0.5A max) | |||
Tamper switch | N.C. Opens when cover is removed | |||
Operating temperature | -25℃ to +55℃ | |||
Environment humidity | 95%max | |||
Alignment angle | ±10°vertical, ±90°horizontal | |||
Mounting | Wall or pole | |||
Weight | 2168g(Both transmitter and receiver) | |||
Appearance | PC Resin(Black) | |||
IP Rating | IP65 | |||
