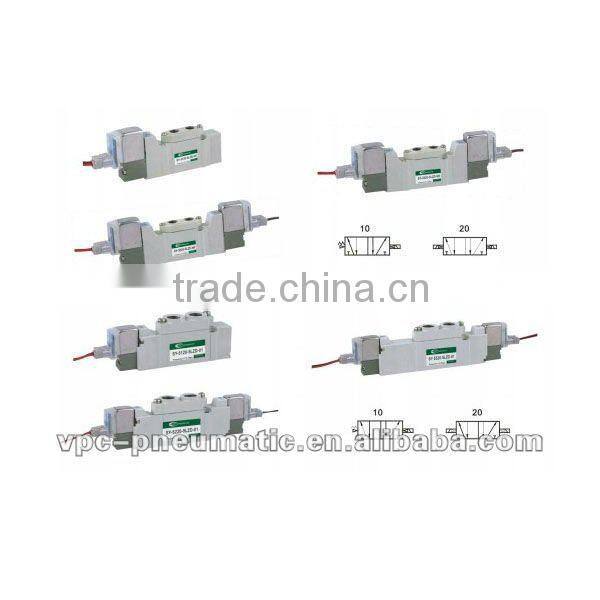

SY Series 5 Ports Solenoid Valve, SMC Type Solenoid Valve, Rubber Seal, Life Cycle 50 Million
US$ 10 - 100
MOQ: 10 Pieces
Key Specifications
Get Latest Price
Type:
Valves
Place of Origin:
Zhejiang, China
Model Number:
SY3000
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO/SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
SY Series 3 Ports Solenoid Valve Used in Plastic Drop Machinery, Packing MachineryUS$ 10 - 100MOQ: 10 Pieces -
VPC European Series Normal Closed 2 Position 2 Port Brass 2 Way Solenoid ValveUS$ 10 - 200MOQ: 10 Pieces
-
3V Series Pneumatic Directional 2 Position 3 Port Single Control Solenoid ValveUS$ 10 - 200MOQ: 10 Pieces
-
2W Series Small Oriffice Solenoid ValveUS$ 5 - 15MOQ: 10 Pieces
-
2W (UW) Series 2 Position 2 Port Direct Acting Solenoid ValveUS$ 5 - 100MOQ: 10 Pieces
Type
Valves
Place of Origin
Zhejiang, China
Model Number
SY3000
Brand Name
VPC
Specifications
SY Series Solenoid ValveQuick action
Small dimention, big flow
Low-consumption power
With good resistance to abrasion
Summary:
SY Series Solenoid Valve can replace the SMC type. They are very compact and good appearance, low consumption, small dimention, big flow, with good resistance to abrasion and long service life.
Specifications:
| Fluid | Air |
| Ambient & Fluid Temperature | Max. 50°C |
| Lubricate | Not Required |
| Hand Control | The screwdriver according to enter locking |
| Cushion | 150/30S2(8.3~2000Hz) |
| Seal | Guards against the dust |
Solenoid Specifications:
| Electrical Entry | Lead Wire,L- Type pluy connector | |
| Standard Voltage | AC | 110V |
| DC | 24V,12V | |
| Allowable Voltage Range | ±10% | |
| Power Consumption | AC | 1.0VA/1.1VA Indicator Light |
| DC | 0.5W/0.55W Indicator Light | |
| Type | Valve Type | Solenoid | Pressure Range Mpa(kgf/cm2) |
Response Time | Working Frequency | Joint Size | Sectional Area | Weight |
| SY3120-[]D-M5 | 2 | Single Solenoid | 0.15~0.71(1.5~7.2) | ≤12 | 10 | M5×0.8 | 3.6(0.2) | 48 |
| SY3220-[]D-M5 | 2 | Double Solenoid | 0.1~0.71(1.0~7.2) | ≤10 | 10 | M5×0.8 | 3.6(0.2) | 62 |
| SY3320-[]D-M5 | 2 | Double(Central Seal) | 0.2~0.71(2.0~7.2) | ≤15 | 3 | M5×0.8 | 3.6(0.2) | 65 |
| SY3420-[]D-M5 | 2 | Double(Central Exhaust) | 0.2~0.71(2.0~7.2) | ≤15 | 3 | M5×0.8 | 3.6(0.2) | 65 |
| SY3520-[]D-M5 | 2 | Double(Central Pressuizes) | 0.2~0.71(2.0~7.2) | ≤15 | 3 | M5×0.8 | 3.96(0.22) | 65 |
| Note: [-Represents the working voltage | ]-Reprsentative Receives a Telegram the Way | |||||||
| 3=110VAC | G=Direct Going Beyond Aline Type(Lead Wire Long 300mm) | |||||||
| 5=24VDC | L= L Plug Type(Lead Wire Long 300mm) | |||||||
| 6=12VDC | LZ=L Plug Type Has the Indicating Lamp and has constrained the Regulator |
