Specifications
electric desktop socketautomatic flip open and closed by power
aluminum alloy finishing panel
Fixable soclets
1.5m cables

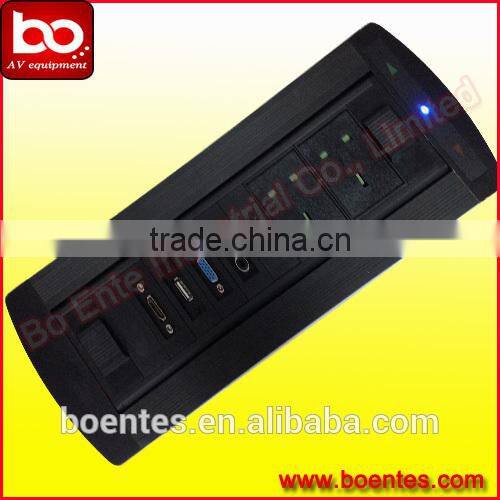

Desktop Electric Cable Cubby with UK power outlets/ Motorized Rotatable Table Outlets
Introduction:
EK series rotating flip up desktops ocket is an innovative solution to provide electric, data and other AV interfaces on desktop office furniture. EK series media desktop socket is powered by an electric drive motor that rotate the sockets to the hidden position when unused. A photoelectric eye inside electric desktop power plugs will prevent rotation if there was an obstruction on the top of motorized tabletop outlets during working.
Feature:
1, Electric pop up desktop socket offer outlets for accessibility to electric, internet, telephone, VGA, HDMI,3.5 Audio, USB, MIC and could be customized for other data and AV interfaces.
2, Electric Flip Up Sockets rotate all sockets to the hidden position by press the touch button, to provide a clean and elegant surface of worktop. Also Motorized Cable Cubby prevent accidental spillage of fluids into the product.
3, A photoelectric self-lock device inside the Tabletop sockets prevent sockets from rotating if one of socket units is plugged. Also prevent cable damage and hand jammed during operation.
4, Electric Tabletop power plugs contain an electric drive motor, ensure reliable rotation and the ability to orient itself to the proper position.
Characteristic
1, high quality aluminum alloy finishing with motors
2, A=A strong carton with foam cushion and waterproof film
3, white/black/gold color is available for color selection
4, Power plug and voltage could be changed accordingly.
5, OEM with logo on product and packing is available
6, Customized made is available
Application:
Electric Desktop Socket widely use in furniture, like conference table, desk, workstation, and hotel room, healthcare setting, along with raining and educational application.
Parameter:
| Model No. | EK9222UK |
| Material | aluminum alloy |
| Color | silver or black |
| Length of Cables | 1.5 meter |
| Connector with Cables | 2-UK standard power, 1-RJ45 Network, 1-Audio,1-Video, 1-HDMI,1- USB, 1-VGA |
Selection Parts:
|
Power Socket (Selectable ) |
Universal |
100-240V AC,50/60HZ,5A |
US version |
100-240V AC,50/60HZ,5A |
|
UK version |
100-240V AC,50/60HZ,5A |
|
Central EU version |
100-240V AC,50/60HZ,5A |
|
FR and BL version |
100-240V AC,50/60HZ,5A |
|
South Africa version |
100-240V AC,50/60HZ,5A |
|
Australia version |
100-240V AC,50/60HZ,5A |
|
|
Cable (Selectable) |
HDMI cable |
|
VGA cable | ||
USB cable | ||
RJ45 cable | ||
Microphone cable | ||
Lan/ Network cable | ||
Video/RCA cable | ||
3.5 audio cable | ||
Working temperature |
5°C ~ 45°C |
|
Working humidity |
10% ~90 % |
|
Storage temperature |
- 20 °C ~70 °C |
|
Storage humidity |
5% ~95 % |
|
Professional Service:
1, Any of inquiries will be response within 48 hours
2, Sizable accessories of products for replacement
3, Sample of Electric Desktop Socket is available.
Warranty:
Study the user’s manual carefully before installation.
All of our products provide 12 months warranty! The warranty period starts from the goods receipt by initial consignee.
Payment:
T/T, L/C, Western Union, Money Gram, Crash is acceptable
Operation Method:
1, the indicator light is illuminated when product power up.
2, Press the red touch button if unused, the product will rotate 180 degrees to the hidden position. Press the green touch button if use, the product will rotate 180 degree to the desktop.
Pictures:
There are various models of motorized Desktop Socket with different standard power and different socket for your choice!
There are hydraulic pop up box, desktop cable cubby, concealed desktop socket and flip up tabletop outlets for your selection !
Feel free to contact us if need customized model !
