Help CenterRotating Cable Cubby With UK Standard Power/ Electric Media Connectors HUB
Related Products
-
Rotating Electric Desktop Socket/ Motorized Flip Up Socket Box/ Electric Cable CubbiesUS$ 65 - 105MOQ: 50 Units -
Motorized Desktop Socket With Europe Standard Power Outlet/ Electric Pop Up SocketUS$ 75 - 105MOQ: 50 Units
-
Electric Cable Cubby/Motorized Desktop Socket/Rotating Pop up Socket BoxUS$ 65 - 105MOQ: 10 Units
-
Rotatable Desktop Socket With 3 Duplex Outlets / Eectric Dektop SocketUS$ 65 - 105MOQ: 50 Units
-
Manual Revolve Pop-Up Box With 3 Power and 2 RJ45/Revolve Desktop SocketUS$ 1 - 150MOQ: 10 Units
Specifications
electric desktop socketautomatic flip open and closed by power
aluminum alloy finishing panel
1.5m length cables black
UK

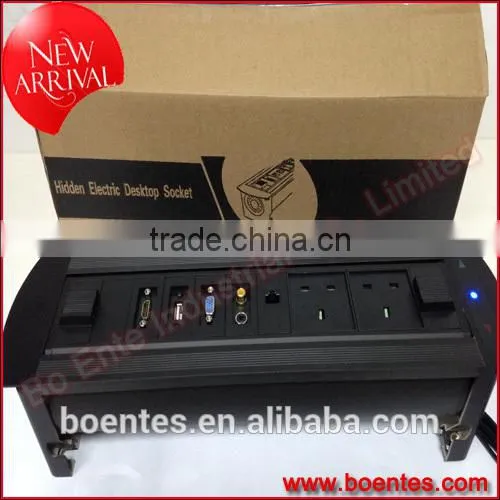

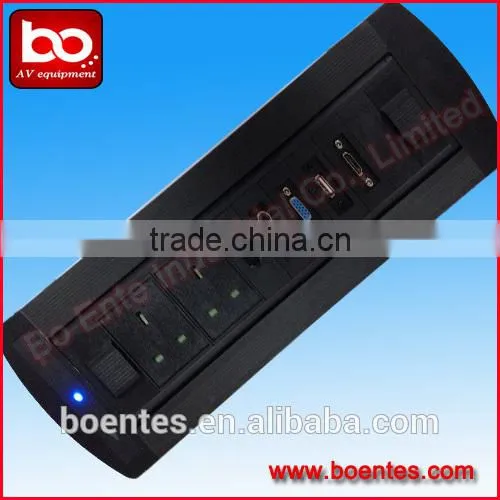

Rotating Cable Cubby with UK standard Power/ Electric Media Connectors HUB
Introduction:
EK series Electric Desktop power socket is an innovative solution to provide electric, data and other AV interfaces on desktop office furniture. EK series Rotating Desktop Socket is powered by an electric drive motor that rotate the sockets to the hidden position when unused. A photoelectric eye inside electric cable cubbies will prevent rotation if there was an obstruction on the top of motorized flip up socket box during working.
Feature:
1, Electric Desktop socket offer outlets for accessibility to electric, internet, telephone, VGA, HDMI,3.5 Audio, USB, MIC and could be customized for other data and AV interfaces.
2, Motorized Desktop socket rotate all sockets to the hidden position by press the touch button, to provide a clean and elegant surface of worktop. Also Ratating Desktop socket prevent accidental spillage of fluids into the product.
3, A photoelectric self-lock device inside the Electric Cable Cubbies prevent sockets from rotating if one of socket units is plugged. Also prevent cable damage and hand jammed during operation.
4, Electric Desktop Power plugs contain an electric drive motor, ensure reliable rotation and the ability to orient itself to the proper position.
Characteristic
1, high quality aluminum alloy finishing with motors
2, A=A strong carton with foam cushion and waterproof film
3, white/black/gold color is available for color selection
4, Power plug and voltage could be changed accordingly.
5, OEM with logo on product and packing is available
6, Customized made is available
Application:
Electric Desktop Socket widely use in furniture, like conference table, desk, workstation, and hotel room, healthcare setting, along with raining and educational application.
Parameter:
| Model No. | EK9222UK |
| Material | aluminum alloy |
| Color | silver or black |
| Length of Cables | 1.5 meter |
| Connector with Cables | 2- UK power,1-Network, 1-VGA,1-HDMI,1-USB,1-Audio,1-Video with cables |
|
Power Socket (Selectable ) |
Universal |
100-240V AC,50/60HZ,5A |
US version |
100-240V AC,50/60HZ,5A |
|
UK version |
100-240V AC,50/60HZ,5A |
|
Central EU version |
100-240V AC,50/60HZ,5A |
|
FR and BL version |
100-240V AC,50/60HZ,5A |
|
South Africa version |
100-240V AC,50/60HZ,5A |
|
Australia version |
100-240V AC,50/60HZ,5A |
|
|
Cable (Selectable) |
HDMI cable |
|
VGA cable | ||
USB cable | ||
RJ45 cable | ||
Microphone cable | ||
Lan/ Network cable | ||
Video/RCA cable | ||
3.5 audio cable | ||
Working temperature |
5°C ~ 45°C |
|
Working humidity |
10% ~90 % |
|
Storage temperature |
- 20 °C ~70 °C |
|
Storage humidity |
5% ~95 % |
|
Professional Service:
1, Any of inquiries will be response within 48 hours
2, Sizable accessories of products for replacement
3, Sample of Electric Desktop Socket is available.
Warranty:
Study the user’s manual carefully before installation.
All of our products provide 12 months warranty! The warranty period starts from the goods receipt by initial consignee.
Payment:
T/T, L/C, Western Union, Money Gram, Crash is acceptable
Operation Method:
1, the indicator light is illuminated when product power up.
2, Press the red touch button if unused, the product will rotate 180 degrees to the hidden position. Press the green touch button if use, the product will rotate 180 degree to the desktop.
Pictures:

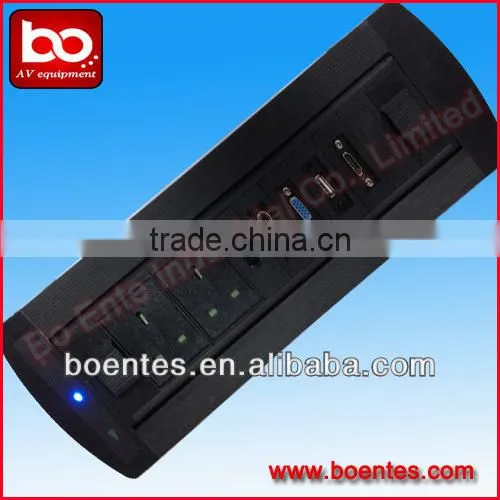

Black Color of Electric Rotating Desktop Socket is available !
Other Different Motorized Rotatable Desktop Socket with different sockets are available !
Feel Free to contact us if any interested !
