Specifications
manual desktop socketflip open and closed by manual
aluminum alloy finishing panel
1.5~1.8 m length cables
360 rotatable

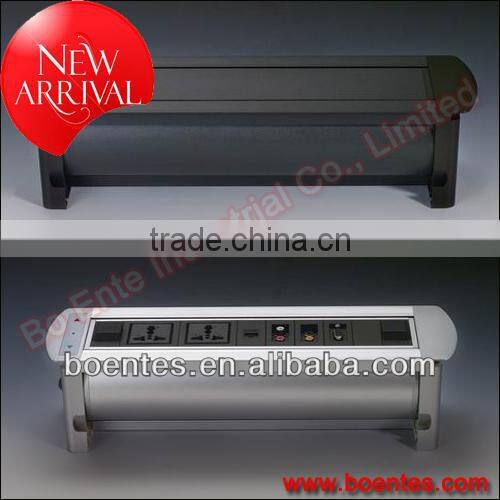

Manual Desktop Socket/ Rotatable Cable Cubby/Rotating Media HUB with cables
Introduction:
MK series Manual Desktop socket is an innovative solution to provide electric, data and other AV interfaces on desktop office furniture. MK series Manual Rotatable Desktop Socket could rotate the sockets 360 degree to the hidden position when unused. A photoelectric eye inside electric desktop socket will prevent rotation if there was an obstruction on the top of conference table top rotator during working.
Feature:
1, Manual Rotatable Desktop socket offer outlets for accessibility to electric, internet, telephone, VGA, HDMI,3.5 Audio, USB, MIC and could be customized for other data and AV interfaces.
2, Manual Rotating Desktop socket rotate all sockets to the hidden position by manual hand working, to provide a clean and elegant surface of worktop. Also Manual Rotatable Desktop socket prevent accidental spillage of fluids into the product.
3, A photoelectric self-lock device inside the Manual Rotatable Desktops Socket prevent sockets from rotating if one of socket units is plugged. Also prevent cable damage and hand jammed during operation.
4, Manual roating cable cubby contain an electric drive motor, ensure reliable rotation and the ability to orient itself to the proper position.
Characteristic
1, high quality aluminum alloy finishing with cables
2, A=A strong carton with foam cushion and waterproof film
3, white/black/gold color is available for color selection
4, Power plug and voltage could be changed accordingly.
5, OEM with logo on product and packing is available
6, Customized made is available
Application:
Manual Rotatable Desktop Socket widely use in furniture, like conference table, desk, workstation, and hotel room, healthcare setting, along with raining and educational application.
Parameter:
| Item Model | MK3133 |
| Material | Aluminum alloy |
| Panel Size | 297*110*103mm |
| Box Size | 268*104mm |
| Color | black or silver |
| Detail socket and related cables | 2-Universal Power, 2-Network, 1-VGA and related cables |
|
Power Socket (Selectable ) |
Universal |
100-240V AC,50/60HZ,5A |
US version |
100-240V AC,50/60HZ,5A |
|
UK version |
100-240V AC,50/60HZ,5A |
|
Central EU version |
100-240V AC,50/60HZ,5A |
|
FR and BL version |
100-240V AC,50/60HZ,5A |
|
South Africa version |
100-240V AC,50/60HZ,5A |
|
Australia version |
100-240V AC,50/60HZ,5A |
|
|
Cable (Selectable) |
HDMI cable |
|
VGA cable | ||
USB cable | ||
RJ45 cable | ||
Microphone cable | ||
Lan/ Network cable | ||
Video/RCA cable | ||
3.5 audio cable | ||
Working temperature |
5°C ~ 45°C |
|
Working humidity |
10% ~90 % |
|
Storage temperature |
- 20 °C ~70 °C |
|
Storage humidity |
5% ~95 % |
|
Professional Service:
1, Any of inquiries will be response within 48 hours
2, Sizable accessories of products for replacement
3, Sample of Manual Rotatable Desktop Socket is available.
Warranty:
Study the user’s manual carefully before installation.
All of our products provide 12 months warranty! The warranty period starts from the goods receipt by initial consignee.
Payment:
T/T, L/C, Western Union, Money Gram, Crash is acceptable
Pictures:
There are electric model and manual rotate model of rotating desktop socket for selection !
There are pop up desktop socket, aluminum cable cubby, flip up desktop socket and enconimic tabletop socket for choice !
Or with LCD monitor lift or Motorized Flip Up device for conference system is available !
