I. Usage:

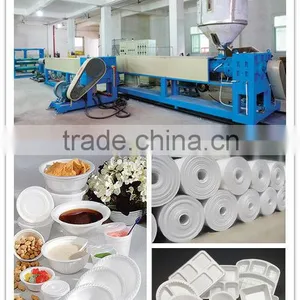

EPS Foam Sheet Extrusion Line is used to produce EPS (Expandable sheet) sheet which is used for making disposable/one-time used plastic containers(instant noodle bowl, lid, boxes, etc), blister, etc.
II. Main Technical Parameter:
Model |
SP-65/90 |
SP-90/120 |
SP-110/130 |
Target material |
HIPS/GPPS |
||
Max. Efficient width of sheet (adjustable) |
1100mm |
||
Thickness of sheet |
1.6~4.0mm |
||
Tolerance of thickness |
±0.01mm |
||
Maximum output |
80-105kg/hr |
180-200kg/hr |
220-300kg/hr |
Machine Dimension |
25X4X3M |
27X4X3M |
33X5X3M |
Machine Weight |
11T |
15T |
18T |
III. Machine Composition:
Item |
Composition |
Unit |
QTY |
Remark |
1 |
Φ65/36 Extruder |
set |
1 |
Zhoushan, China |
2 |
Φ90/32 Extruder |
Zhoushan, China |
||
3 |
Hydraulic Double-Sieve Fast Screen Changer |
set |
1 |
Taizhou, China |
4 |
Die Head |
set |
1 |
Taizhou, China |
5 |
Cooling Shaping Drum |
set |
1 |
Sinoplast, China |
6 |
Online Slitting Unit |
set |
1 |
Sinoplast, China |
7 |
Haul off Unit |
set |
1 |
Sinoplast, China |
8 |
Double Position Rewinder |
set |
1 |
Sinoplast, China |
9 |
Electronic Control Cabinet |
set |
1 |
Sinoplast, China |
10 |
Automatic Raw Material Mixing & Feeding Machine |
set |
1 |
Sinoplast, China |
11 |
High pressure injection system |
set |
1 |
Sinoplast, China |
IV. EPS Foam Sheet:
