Jelly Cup Making Machine, egg tray thermoforming machine
- 5 Set / Sets per Month
- Ningbo
- T/T Credit Card
-
Food Box Thermoforming Machine Disposable Plastic Cup Making Machine
-
Plastic Cup Thermoforming Making Machine Disposable Plastic Cups Plate Machine
-
Plastic Cup Machine Plastic Thermoforming Manufacturing Machine Full Automatic Plastic Cup Thermoforming Machine
-
Plastic Cup Thermoforming Machine Full automatic Plastic Cup Making Machine
-
High Efficiency PP Plastic Cup Making Machine PET Food Box Thermoforming Machine
-
High Speed Manufacture Plastic Coffee Cup Cover Thermoforming Machine
Product Details
| Condition: | New | Product Type: | Plastic Cup | Place of Origin: | Zhejiang, China |
| Brand Name: | Sinoplast | Model Number: | SP-660C | Voltage: | 380V/60HZ |
| Power(W): | 35KW | Dimension(L*W*H): | 3.5*1.2*2.3m | Weight: | 3500kg |
| Certification: | CE | Warranty: | 1 Year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
II. Main Features:
1) The stretching of plugs inside of the upper mould are controlled by air cylinder.
2) The sheet feeding is driven by pin chain. The pin chain is controlled by motor and encoder, the feeding length can be set through touch screen.
3) It adopts four pillars to fix the mould. We could adopt four pillars to fix the mould.
4) The production process include sheet feeding, heating, plugs stretching, forming and in-mould cutting and blow final products out.
5) We adopt square steel to make the machine frame stronger.
6) The working performance of this machine is controlled PLC and touch screen.
III. Main Technical Parameter:
Model | SPC-660C |
Mould Driving Method | Cam |
Approximate Max. Forming Area | 660 x 300 mm |
Approx. Running Speed | 15-30 Stroke / min approx. during production |
Approx. Sheet width for feeding | 500 – 660 mm in rolls. |
Mode of cutting arrangement. | In mould automatic |
Sheet thickness Range | 0.20 – 2.0 mm |
Material | PP, PS, PET, PVC,PLA |
Max. Draw depth, (i.e. cup length) | 140 mm (Could be special design) |
Oil Pump Motor Power | 11KW |
Sheet Feeding Motor | 2.2KW |
Max. Sheet roll diameter. | 800 mm |
Heating arrangement | Top + bottom heating with IR Ceramic Heater(120pieces, 650W) |
Temperature Controller & Thermocouple. | PID K-Type |
Type of Mould | Multi cavity 1 – 3 row. |
Approx. Electrical Consumption | 45KW/hr |
Approximate Dimension | L3750×W1550×H2500 (mm) |
Approximate Weight | 4000Kg |
According to round cup with Dia.=75mm, we could make a mould with
20 cavities or 21 cavities for this machine.

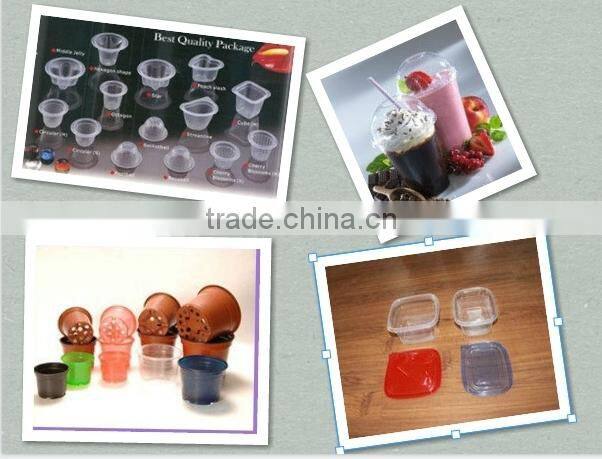

IV. Some Thermoforming Samples:

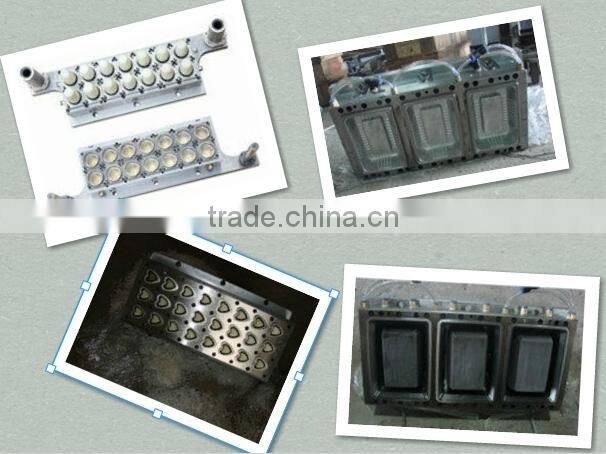

V. Thermoforming Mould Photos:
VI. Auxiliary Machines For Cup Thermoforming Machine:
More details about products, please contact with Ms. Maggie Lin
Skype: maggielam718
Trade Manager ID: sinoplast2013
Mobile/Whatsapp/Viber: 0086-13958816227
