I. Usage:

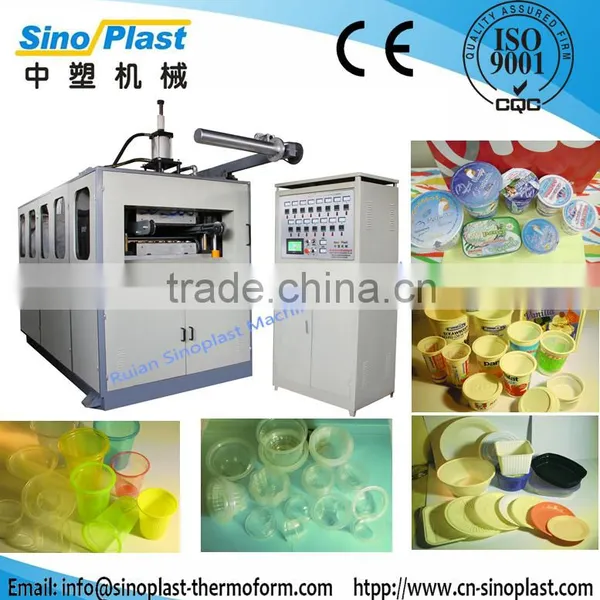

SPC-660D Automtic Cup Thermoforming Machine is mainly use PP/PS/PET/PVC/PLA, etc sheet to produce plastic kinds of disposable plastic products, such as plastic cups, cold/hot drinking cup, ice-cream cup, yoghurt cup, jelly cup, coffee cup, etc. It can make some regular shape products, such as plate, bowl, cover, dish, box with different moulds.
II. Main Features:
1) The stretching of plugs inside of the upper mould are controlled by Servomotor.
2) The sheet feeding is driven by pin chain. The pin chain is controlled by Sevomotor and the feeding length can be set through touch screen.
3) It adopts four pillars to fix the mould. We could adopt four pillars to fix the mould.
4) The production process include sheet feeding, heating, plugs stretching, forming and in-mould cutting and blow final products out.
5) We adopt square steel to make the machine frame stronger.
6) The working performance of this machine is controlled PLC and touch screen.
III. Main Technical Parameter:
Model |
SPC-660D |
Mould Driving Method |
Cam |
Approximate Max. Forming Area |
660 x 300 mm |
Approx. Running Speed |
15-30 Stroke / min approx. during production |
Approx. Sheet width for feeding |
500 – 660 mm in rolls. |
Mode of cutting arrangement. |
In mould automatic |
Sheet thickness Range |
0.20 – 2.0 mm |
Material |
PP, PS, PET, PVC,PLA |
Max. Draw depth, (i.e. cup length) |
140 mm (Could be special design) |
Max. Sheet roll diameter. |
800 mm |
Heating arrangement |
Top + bottom heating with IR Ceramic Heater(120pieces, 650W) |
Temperature Controller & Thermocouple. |
PID K-Type |
Type of Mould |
Multi cavity 1 – 3 row. |
Approx. Electrical Consumption |
45KW/hr |
Approximate Dimension |
L3100×W1500×H2500 (mm) |
Approximate Weight |
4000Kg |
According to round cup with Dia.=75mm, we could make a mould with
20 cavities or 21 cavities for this machine.
IV. Some Thermoforming Samples:
V. Thermoforming Mould Photos:
VI. Auxiliary Machines For Cup Thermoforming Machine:
Any more information, please don't hesitate to contact with Ms. Maggie Lin:
Skype: maggielam718
Trade Manager: sinoplast2013
Whatsapp/Viber/Mobile: +86-13958816227
