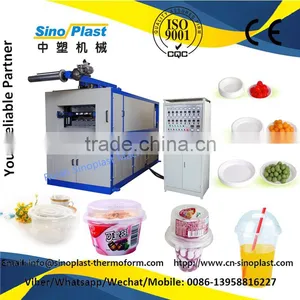

Help CenterPlastic Food Storage Containers Making Machine
Related Products
-
Disposable Plastic Cup Production LineUS$ 65,000 - 99,000MOQ: 1 Set -
Plastic Plate Thermoforming MachineUS$ 25,000 - 35,000MOQ: 1 Set
-
SPC-700 Tilting Mold Thermoforming Machine, Cup Making MachineUS$ 62,000 - 68,000MOQ: 1 Set
-
SPC-700 Tilting Mould Thermoforming MachineUS$ 1 - 9,999MOQ: 1 Set
-
SPC-700 Tilted Mould Thermoforming Machine, Thermoforming Machine, Plastic Cup Making MachineUS$ 68,000 - 78,000MOQ: 1 Set
I. Usage:
It is mainly used to from PP/HIPS/PET/PVC sheet into various kinds of disposable plastic cups, such as hot/cold drinking cup, ice cream cup, yoghurt cup, jelly cup, juice cup,etc. It could also make some regular shape products, such as plate, bowl, cover, dish, box, etc with different moulds.
II. Main Features:
1) The stretching of plugs inside of the upper mould are controlled by air cylinder.
2) The sheet feeding is driven by pin chain. The pin chain is controlled by motor and inverter, the feeding length can be set through touch screen.
3) It adopts four pillars to fix the mould. We could adopt four pillars to fix the mould.
4) The production process include sheet feeding, heating, plugs stretching, forming and in-mould cutting and blow final products out.
5) We adopt square steel to make the machine frame stronger.
6) The working performance of this machine is controlled PLC and touch screen.
III. Main Technical Parameter:
Model |
SPC-660C |
Mould Driving Method |
Cam |
Approximate Max. Forming Area |
660X300 mm |
Approx. Running Speed |
15-30 Stroke / min approx. during production |
Approx. Sheet width for feeding |
500 – 850 mm in rolls. |
Mode of cutting arrangement. |
In mould automatic |
Sheet thickness Range |
0.20 – 2.0 mm |
Material |
PP, PS, PET, PVC,PLA |
Max. Draw Depth, (i.e. cup length) |
140 mm (Could be special design) |
Oil Pump Motor Power |
11KW |
Sheet Feeding Motor |
2.2KW |
Max. Sheet roll diameter. |
800 mm |
Heating arrangement |
Top + bottom heating with IR Ceramic Heater(120pieces, 650W) |
Temperature Controller & Thermocouple. |
PID K-Type |
Type of Mould |
Multi cavity 1 – 3 row |
Approx. Electrical Consumption |
60KW/hr |
Approximate Dimension |
L3750×W1550×H2500 (mm) |
Approximate Weight |
4000Kg |
According to round cup with Dia.=75mm, we could make a mould with
20 cavities or 21 cavities for this machine.
IV. Some Thermoforming Samples:
IV. Thermoforming Mould Photos:
IV. Auxiliary Machines For Cup Thermoforming Machine:
More details of the machine, pls contact with Ms. Maggie Lin
Skype: maggielam718
Trade Manager ID: sinoplast2013
Mobile: 0086-13958816227
We could make automaic packing machine with this thermoforming machine.
