Machine Description:

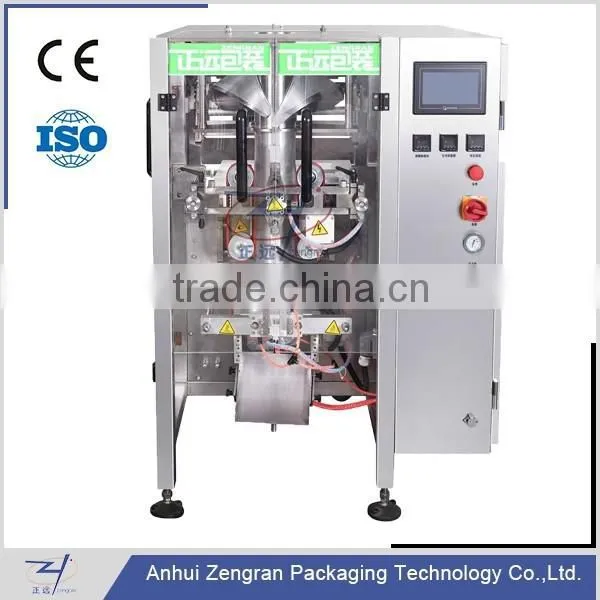

VFS5000D Vertical Packing Machine is specially designed to be suitable to equip with different weighing and filling system. It can be applied to pack Granular Materials, Liquid Materials and Powder Materials as well. Usually, most of our customers buy it to pack specific material like Peanuts, Candies, Cookies, Potato Chips, Rice, Sugar, Beans, Dried Fruit, Pet Food, Ground Coffee, Milk, Detergent Powder, Shampoo, Ketchup, Spices etc. Also, all the machines sold works perfectly well at the customers’ factory and win great reputation.

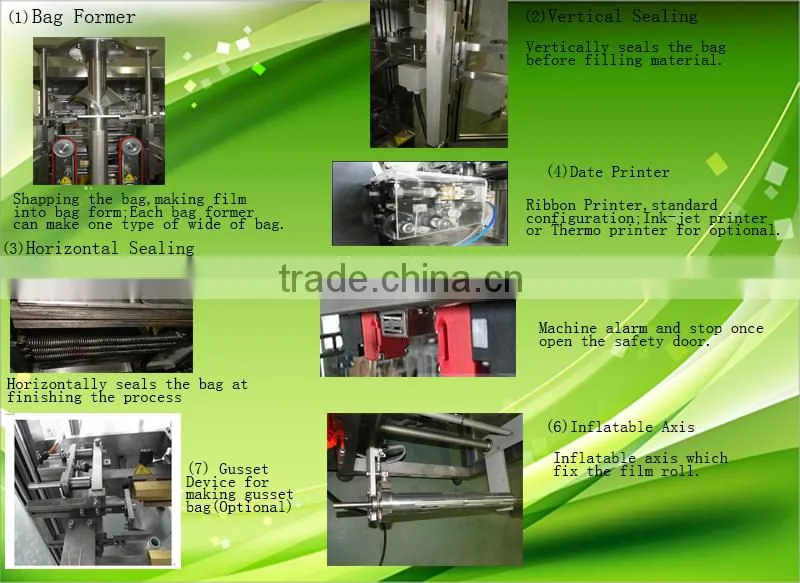

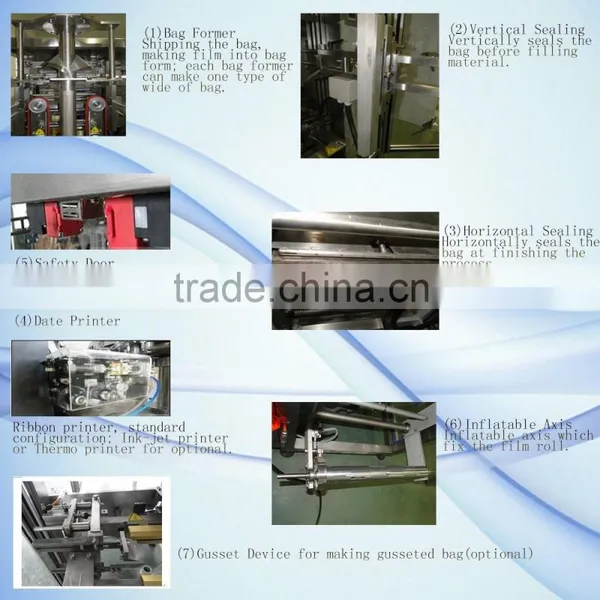

Machine Advantage:
1, Machine is fully controlled by Siemens or Omron PLC & Touch-Screen
2,Minute capacity could automatically display on Touch-Screen
3,Film transport system and horizontal Jaw motion are both drive by Panasonic
4,Safe quick change of tube and collar by just pull out the brake
5,Optoelectronics detect film position on collar to correct film excursion
6,Electrical photo sensor inducting color code to control bag length
7,Unique Pneumatic Film-Reel locking structure to avoid film drawing deflecting
8,Independent temperature adjustment& code printing system
9,Various types of heating sealable laminate films namely PE/BOPP, CPP/BOPP, CPP/PET, PE/NYLON, ALUMMINUM FOIL based can be run on the machine
10,The packaging machine also can be used for Polyethylene Film sealing by changing correspond equipment
11, It can also be equipped with hole-punching system to pouch hole on the bag for handling.
Machine Technical Specification:
Bag Type: |
Pillow Type Bag; Gusseted Bag |
Bag Length: |
20-280mm (0.8-11in) |
Bag Width: |
40-190mm (1.6-7.5in) |
Reel Film Width: |
≤400mm (15.7in) |
Film Thickness: |
0.04-0.12mm (40-120mic.) |
Reel Outer Dia.: |
400mm (15.7in) |
Reel Inner Dia.: |
75mm (2.9in) |
Speed: |
40 to 80 bags/min |
Voltage: |
AC220V/50Hz, 1phase or per customer needs |
Power Consumption: |
3KW |
Compressed Air Re.: |
0.6 Mpa 0.36 M3/min |
Machine Size: |
L1400 x W1050 x H1500mm;(in): L55.1 x W41.3 x H59.1 |
Machine Weight: |
600kg |
Out Packing and Oversea Service:
1, All goods are packed in wooden box.
2, Our engineers are available to service machinery overseas to help customers to solve machine problems.
Machine Guarantee and After-Service:
As for machine products, our company provides 12 months for all mechanical parts with the exception of electrical and electronic parts and those subjects to normal wear and tear. Meanwhile, the guarantee starts from the shipment (B/L date). The guarantee is intended limited to the replacement of the broken part after checking the construction fault. The guarantee declines in the case the customer proceeds, without proper consent, to the replacement, modification, or repair of parts.The inspection of the causes of the trouble or the breakdown of the parts is exclusively up to the manufacturing company. All in all, our company can offer you assured products.
Contact information:
