Machine Description:

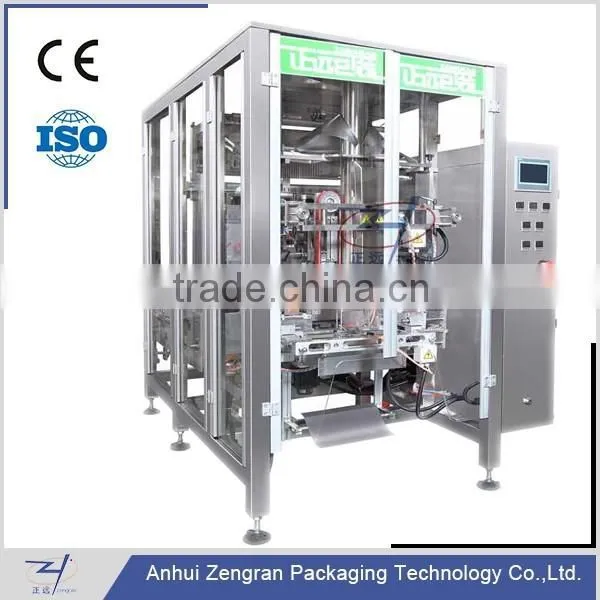

VFS5000YA5 Automatic Box type Bag Vertical Packaging Machine is specially designed to makeBox-Bag-Type Packaging. The packaging machine can be equipped with different weight and filling system for various granule, powder and liquid products, packaging such as peanuts, candies, cookies, potato chips, rice, sugar, beans, dried fruit, pet food, ground coffee, milk, detergent powder, shampoo, ketchup, spices etc. Meanwhile, this machine has won great reputation from the customer.
Machine Advantage:

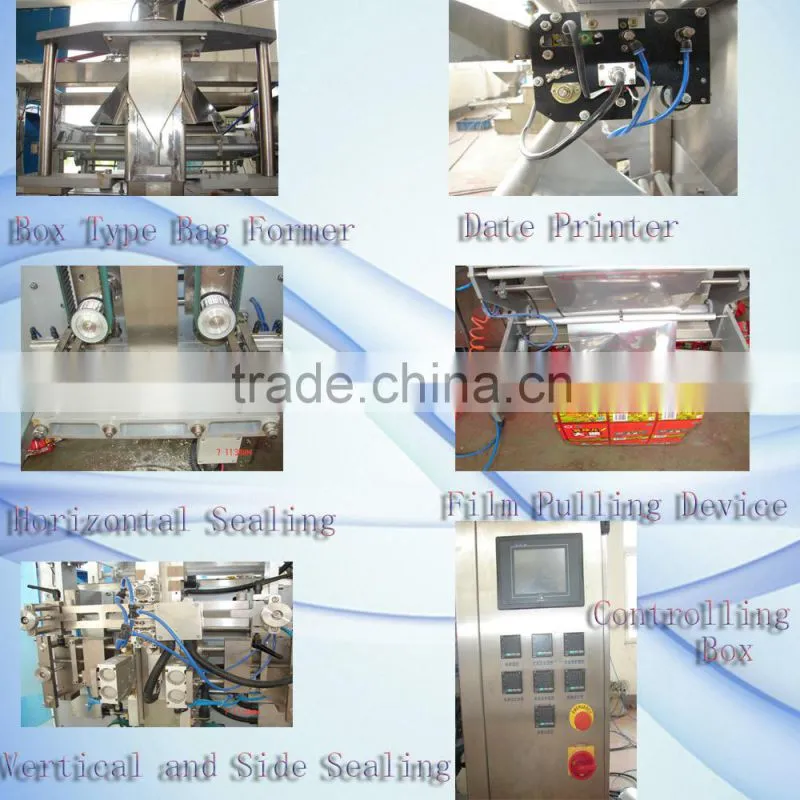

1, Machine is fully controlled by Siemens or Omron PLC & Touch-Screen
2, Minute capacity could automatically display on Touch-Screen
3, Film transport system and horizontal Jaw motion are both drive by Panasonic
4, Safe quick change of tube and collar by just pull out the brake
5,Optoelectronics detect film position on collar to correct film excursion
6, Electrical photo sensor inducting color code to control bag length
7, Unique Pneumatic Film-Reel locking structure to avoid film drawing deflecting
8, Independent temperature adjustment& code printing system
9, Various types of heating sealable laminate films namely PE/BOPP, CPP/BOPP, CPP/PET, PE/NYLON, ALUMMINUM FOIL based can be run on the machine
10, The packaging machine also can be used for Polyethylene Film sealing by changing correspond equipment
11, It can also be equipped with hole-punching system to pouch hole on the bag for handling.
Machine Parameters:
Bag type |
Box type bag /Stabilo type bag ( can do both with or without back seal ) |
|
Speed |
25-50bags/min |
|
Bag size |
Front wirdth |
100 to 240mm (4 to 9.5in) |
Side wirdth |
50 to 120mm (2.0 to 5in) |
|
Length |
100 to 420mm (4 to 16.6in) |
|
Reel Film Width |
≤540mm (21.3in) |
|
Film thickness |
0.04-0.12mm (40-120mic.) |
|
Reel Outer Dia. |
400mm (15.8in) |
|
Reel Inner Dia. |
75mm (2.9in) |
|
Voltage |
AC220V/50Hz, 1phase or Per customer specification |
|
Power Consumption |
3KW |
|
Compressed Air Requirement |
0.6 Mpa 0.36 M3/min |
|
Machine Size |
L1650 X W1300 X H1650mm; (in):L65.1 X W51.2 X H70.9 |
|
Machine Weight |
1000kg |
|
Out Packing and Oversea Service:
1, All goods are packed in wooden box.
2, Our engineers are available to service machinery overseas to help customers to solve machine problems.
Machine Guarantee and After-Service:
As for machine products, our company provides 12 months for all mechanical parts with the exception of electrical and electronic parts and those subjects to normal wear and tear. Meanwhile, the guarantee starts from the shipment (B/L date). The guarantee is intended limited to the replacement of the broken part after checking the construction fault. The guarantee declines in the case the customer proceeds, without proper consent, to the replacement, modification, or repair of parts. The inspection of the causes of the trouble or the breakdown of the parts is exclusively up to the manufacturing company. All in all, our company can offer you assured products.
