Specifications
1.Suited for powder materail packing2.fully controlled Touch-Screen
3.Thermal transfer
4.Dual servo motor for film pulling
Application:
The unit of machine is suit for automatic weighing ,filling and packaging powder materail such as :milk powder,coffee powder,ice cream powder,Jice powder etc.It can making big size of pillow or gusset type of bag .
Advantage:

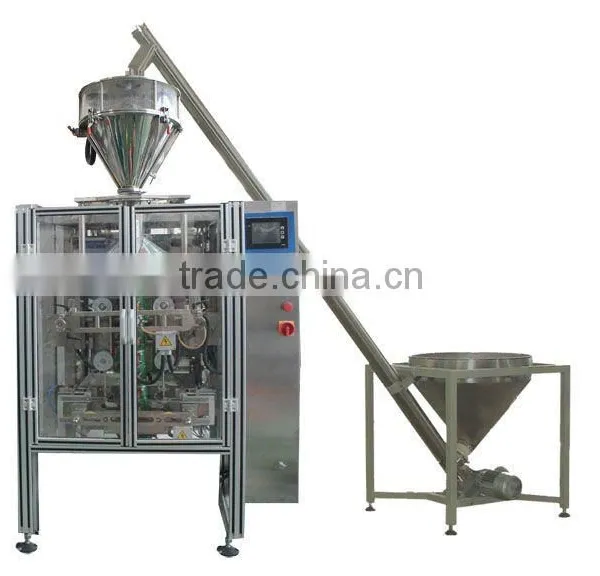

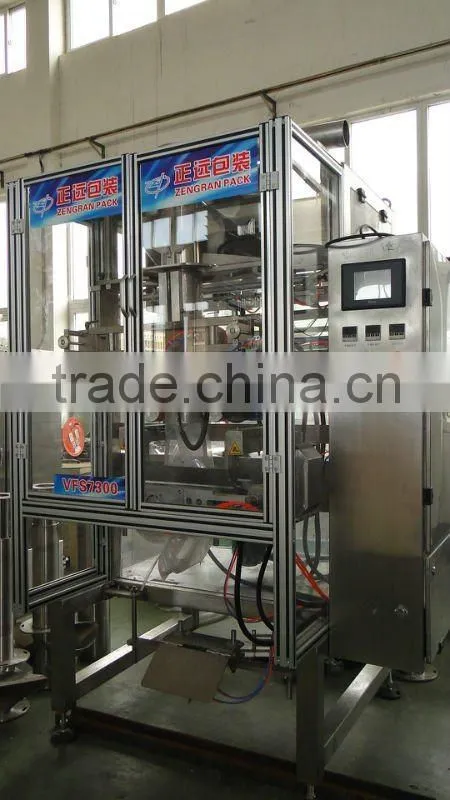

VFS7300 packaging machine |

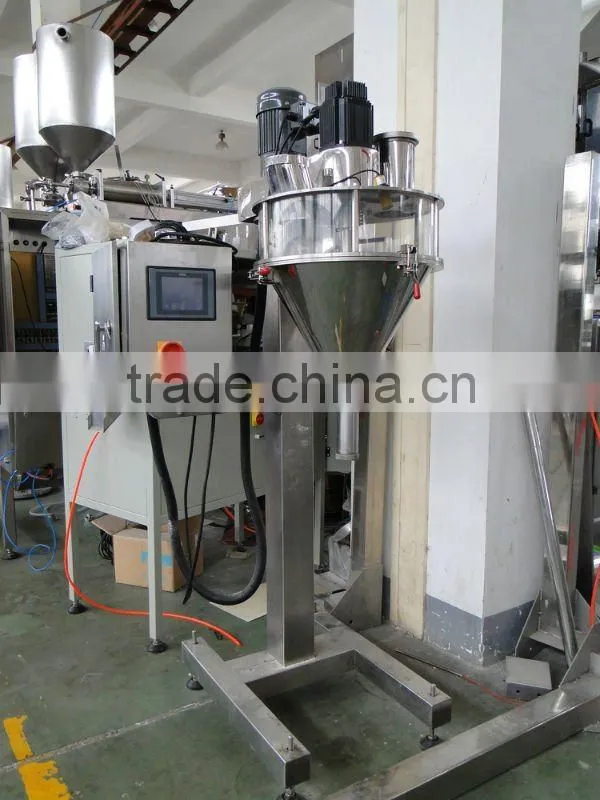

CJSL2000 Auger filler |
Machine fully controlled by Siemens or Omron PLC & Touch-Screen |
Servo motor control auger filling |
Minute capacity can automaticlly display on Touch screen |
Can be detached for easy clean |
Film transport system and horizontal Jaw motion both drived by Panasonic |
Simple and compact in design |
Safe quick change of tube and collar by just pull out the braket |
All stainless steel product contact parts. Non-contact parts are stainless steel and aluminum |
Optoelectronics detect film position on collar to correct film excursion |
|
Electrical photo sensor inducting color code to contol bag length |
|
Unique Pneumatic Film-Reel locking structure to avoid film drawing deflecting |
|
Independent temperature adjustment. |
|
Various types of heating sealable laminated films namely PE/BOPP, CPP/BOPP, CPP/PET, PE/NYLON, aluminum foil based can be run on the machine. |
|
The packaging machine also can be used for Polyethylene Film Sealing by changing correspond equipemnt |
|
Technical Specification:
Bag type |
Pillow type bag;Gusseted bag (Option) |
|
Maximum Capacity |
up to 5 kilograms( have to change auger & tube according to different weighting range ) |
|
Minimum Capacity |
depend on product characteristics but nominally 1 kilograms |
|
Speed |
10-30(times/min) dependant on products characteristics and weighting range |
|
Weighing accuracy |
±0.2% dependant on products characteristics |
|
Bag Length |
50 to 460mm (1.9to 18in) |
|
Bag Width |
80 to 350mm (3.1 to 13.8in) |
|
Reel Film Width |
≤730mm (28.7in) |
|
Film thickness |
0.04-0.12mm (40-120mic.) |
|
Reel Outer Dia. |
500mm (19.7in) |
|
Reel Inner Dia. |
75mm (2.9in) |
|
Voltage |
AC220V/50Hz, 1phase or Per customer specification |
|
Power Consumption |
VFS7300 packaging machine |
3KW |
CJSL2000 Auger filler |
1.2kw |
|
Compressed Air Requirement |
0.6 MPa0.36 M3min |
|
Machine Size |
VFS7300 packaging machine |
L1760 x W1400 x H1745mm; (in): L69.3 x W55.1 x H68.7 |
CJSL2000 Auger filler |
L1000 X W950 x H2200mm; (in):L39.4 X W37.4 X H86.6 |
|
Machine Weight |
VFS7300 packaging machine |
800kg |
CJSL2000 Auger filler |
250kg |
|
