VFSL560 Box-Bag Type Packaging Machine

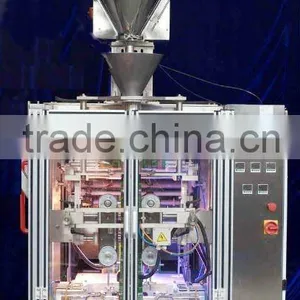

VFSL560 Box-Bag Type Packaging Machine thumbnail-1

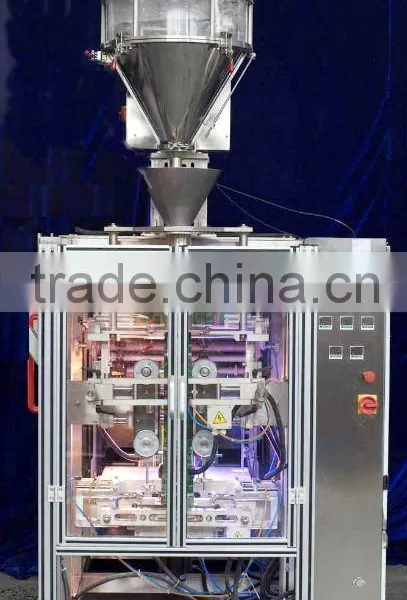

VFSL560 Box-Bag Type Packaging Machine photo-1
US$ 20,000 - 25,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Food, Commodity, Medical, Chemical, Other
Packaging Type:
Bags, Film, Pouch, Other
Contact Supplier Request Quote Chat Now
Anhui Zengran Packaging Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Application Food, Commodity, Medical, Chemical, Other
Packaging Type Bags, Film, Pouch, Other
Packaging Material Plastic, Paper, Metal, Other
Automatic Grade Automatic
Driven Type Electric
Voltage 220V or per customer's specification
Power 5KW
Place of Origin Anhui, China
Brand Name Zengran
Model Number VFS560
Weight 1250KG
Certification CE,ISO9001
After-sales Service Provided Engineers available to service machinery overseas

Specifications

Powder packaging machine
1.Suit for powder materail packing
2.Dual servo motor for film pulling



Application:

    The unit of machine is suit for automatic weighing ,filling and packaging powder materail such as :milk powder,coffee powder,ice cream powder,Jice powder etc.It can making box type bag and bag shape is very attractive.

Pictures:

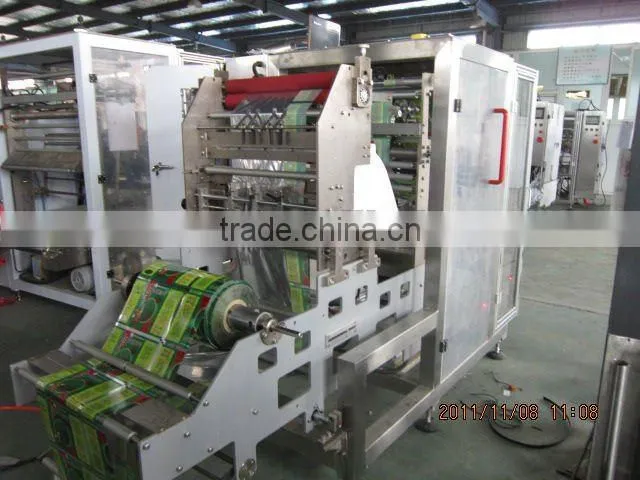

VFSL560 Box-Bag type Packaging Machine



VFSL560 Box-Bag type Packaging Machine

Advantage:

  • VFS560 Packaging machine
  • CJSL2000 Auger filler
  • Machine fully controlled by Siemens or Omron PLC & Touch-Screen
  • Servo motor control auger filling
  • Minute capacity can automaticlly display on Touch screen
  • Can be detached for easy clean
  • Film transport system and horizontal Jaw motion both drived by Panasonic servo motor
  • Simple and compact in design
  • Safe quick change of tube and collar by just pull out the braket
  • All stainless steel product contact parts. Non-contact parts are stainless steel and aluminum
  • Optoelectronics detect film position on collar to correct film excursion


  • Electrical photo sensor inducting color code to contol bag length


  • Unique Pneumatic Film-Reel locking structure to avoid film drawing deflecting


  • Independent temperature adjustment& code printing


  • Various types of heating sealable laminated films namely PE/BOPP, CPP/BOPP, CPP/PET, PE/NYLON, aluminum foil based can be run on the machine.


  • Can euqiped with hole punching system to puch hole on the bag for handling .

c



Technical Specification:

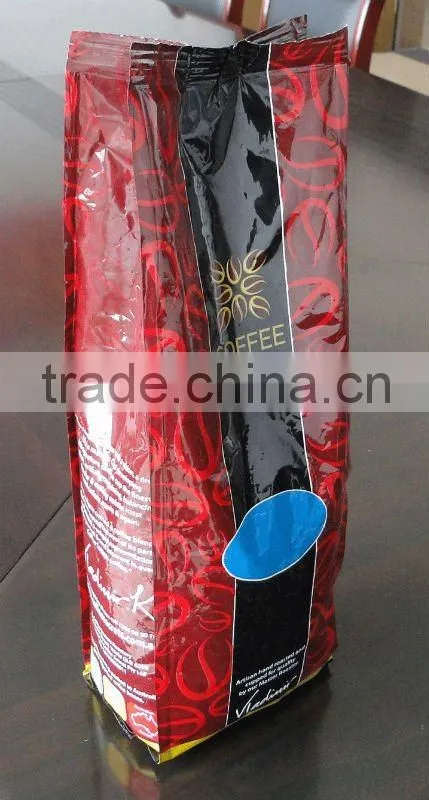

Bag type

Box type bag /Stabilo bag

( can do both with or without back seal )

Weigthing Capacity

5-2kg (depend on product characteristics )

Weighing accuracy

±0.2% dependant on products characteristics

Speed

25-50bags/min

Bag size

Front wirdth

100 to 240mm (4 to 9.5in)

Side wirdth

50 to 120mm (2.0 to 5in)

Length

100 to 420mm (4 to 16.6in)

Reel Film Width

≤540mm (21.3in)

Film thickness

0.04-0.12mm (40-120mic.)

Reel Outer Dia.

400mm (15.8in)

Reel Inner Dia.

75mm (2.9in)

Voltage

AC220V/50Hz, 1phase or Per customer specification

Power Consumption

VFS560 Packaging machine

3KW

CJSL2000 Auger filler

1.2KW

Compressed Air Requirement

0.6 Mpa 0.36 M3min

Machine Size

VFS560 Packaging machine

L1650 X W1300 X H1650; (in):L65.1 X W51.2 X H70.9

CJSL2000 Auger filler

L1000 X W950 x H2200mm; (in):L39.4 X W37.4 X H86.6

Machine Weight

VFS560 Packaging machine

1000kg

CJSL2000 Auger filler

250kg



VFSL560 Box-Bag type Packaging MachineVFSL560 Box-Bag type Packaging MachineVFSL560 Box-Bag type Packaging Machine
