VFS7300A For Rice, Dried Foods Automatic Packaging Machine

VFS7300A For Rice, Dried Foods Automatic Packaging Machine thumbnail-1
VFS7300A For Rice, Dried Foods Automatic Packaging Machine thumbnail-2
VFS7300A For Rice, Dried Foods Automatic Packaging Machine photo-1
VFS7300A For Rice, Dried Foods Automatic Packaging Machine photo-2
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Application:
Food
Packaging Type:
Other, wooden case
Contact Supplier Request Quote Chat Now
Anhui Zengran Packaging Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Application Food
Packaging Type Other, wooden case
Packaging Material Metal
Automatic Grade Automatic
Driven Type Pneumatic
Voltage AC220V
Power 6KW
Place of Origin Anhui, China
Brand Name zengran
Model Number VFS7300A

Specifications

1.For rice, Dried Foods, Tea & Coffee, Pet Foods eg.pack.
2.Machine fully controlled Touch-Screen .
3.Make stabilo bag

Application:

    The packaging machine can be euqiped with different weight and filling system for various granule, powder and liquid products, packaging such as peanuts, candies, cookies, potato chips, rice, sugar, beans, dried fruit, pet food, ground coffee, milk, detergent powder, shampoo, ketchup, spices etc.

  VFS7300A For rice, Dried Foods Automatic packaging machineVFS7300A For rice, Dried Foods Automatic packaging machineVFS7300A For rice, Dried Foods Automatic packaging machine

Advantage:

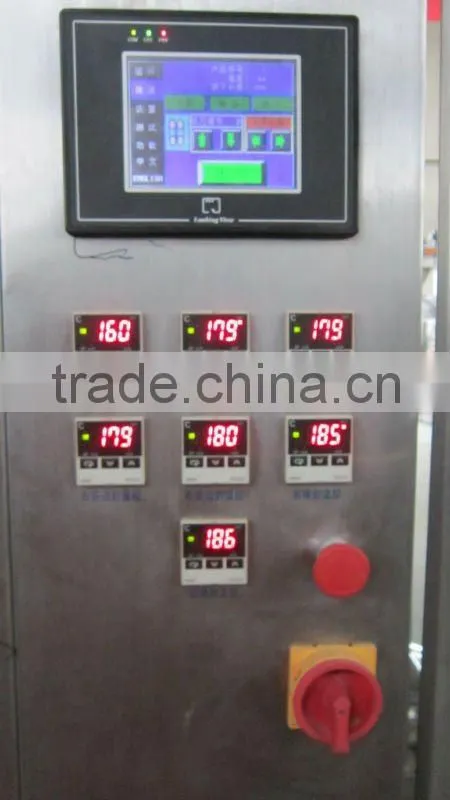

  • Machine fully controlled by Siemens or Omron PLC & Touch-Screen
  • Manual  or automatic operation( Four weighting hopper working)
  • Minute capacity can automaticlly display on Touch screen
  • Precision load cell weighing mechanism with mechanical overload protection
  • Film transport system and horizontal Jaw motion both drived by Panasonic
  • Sturdy weigh bucket with servo motor operated door with sensor control
  • Safe quick change of tube and collar by just pull out the braket
  • Outlet chute with optional extension to suit application
  • Optoelectronics detect film position on collar to correct film excursion
  • Product hopper with adjustable height
  • Electrical photo sensor inducting color code to contol bag length
  • Encapsulated vibratory feeders
  • Unique Pneumatic Film-Reel locking structure to avoid film drawing deflecting
  • Materail main feedng and fine feeding together working keep a good accuracy
  • independent temperature adjustment& code printing
  • Instructional machine manual including electrical wiring drawing
  • Various types of heating sealable laminated films namely PE/BOPP, CPP/BOPP, CPP/PET, PE/NYLON, aluminum foil based can be run on the machine.
  • Reliable, accurate and easy to clean
  • The packaging machine also can be used for Polyethylene Film Sealing by changing correspond equipemnt
  • Can equiped with hole punching system to puch hole on the bag for handling .

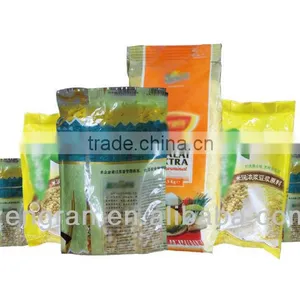

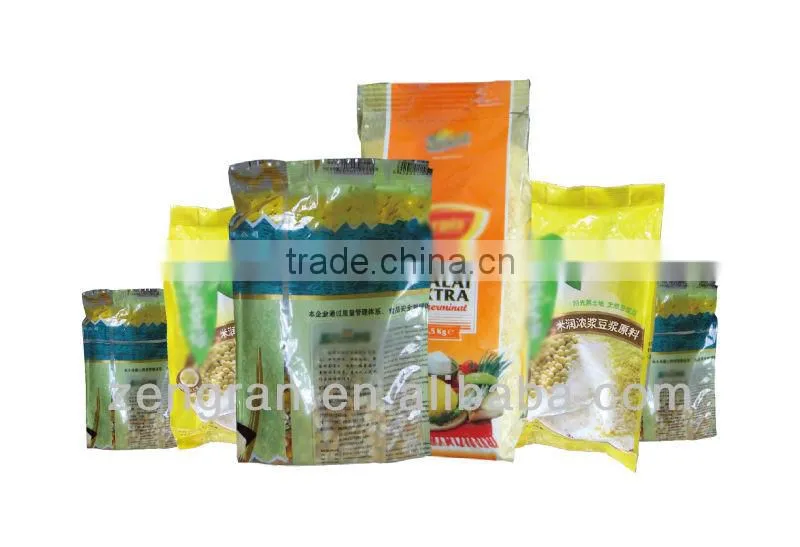

Bag type

 Stabilo bag with back vertical seal  (Option)

Maximum Capacity

up to 5 kilograms

Minimum Capacity

depend on product characteristics but nominally 25 grams

Weighing accuracy

±0.2% dependant on products characteristics

Speed

14 to 50 bags/min

Bag size

Front wirdth

100 to 240mm (4 to 9.5in)

Side wirdth

50 to 120mm (2.0 to 5in)

Length

100 to 420mm (4 to 16.6in)

Reel Film Width

≤730mm (28.7in)

Film thickness

0.04-0.12mm (40-120mic.)

Reel Outer Dia.

500mm (19.7in)

Reel Inner Dia.

75mm (2.9in)

Voltage

AC220V/50Hz, 1phase or Per customer specification
