Specifications
1.for powder materail as milk , spice, eg.pack2.Machine fully controlled Touch-Screen
3.Make four side seal bag
Application:
The unit of machine is suit for automatic weighing, filling and packaging powder material such as: milk powder, coffee powder, ice cream powder, ice powder etc. It can making Middle size of pillow or gusset type of bag .
Advantage:

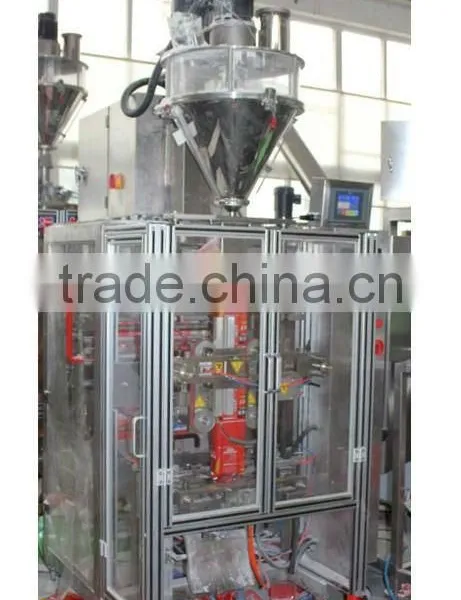

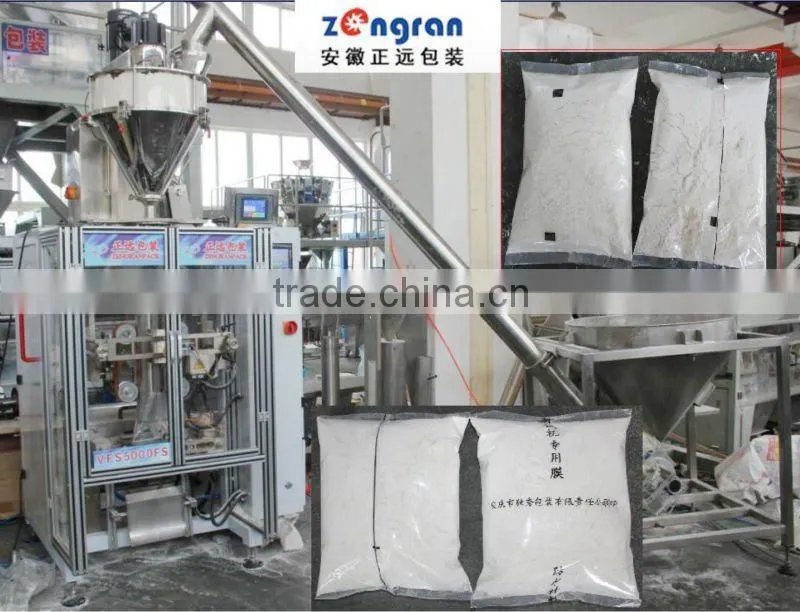

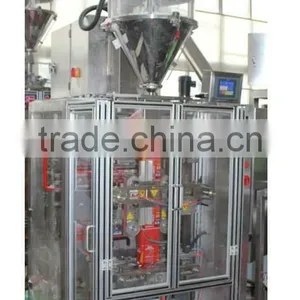

Our VFS5000F automatic weighing packing machinery unit is made up of a VFS7300 standing filling packing machine, a CJS2000-F weighing machine, and a DT2 vertical bucket elevator.
Features of VFS5000F Automatic Weighing Packing Machine Unit
1. The functions of automatic weighing packing equipment include bag-making, filling, sealing, printing, punching and counting.
2. This machine is equipped with a servomotor automatic deviation for film pulling with timing belt.
3. Reliable performance-based PLC control apparatuses are supplied from internationally well-known companies.
4. Both transverse and longitudinal seal mechanisms adopt pneumatic system. Thus, guarantees steady packaging operational system.
5. VFS7300 is easy to maintain.
Technical Specification:
Bag type |
Pillow type bag;Gusseted bag (Option) |
|
Maximum Capacity |
up to 2 kilograms( have to change auger & tube according to different weighting range ) |
|
Minimum Capacity |
depend on product characteristics but nominally 5 grams |
|
Speed |
10-40(times/min) dependant on products characteristics and weighting range |
|
Hopper capacity |
50Litres |
|
Weighing accuracy |
±0.2% dependant on products characteristics |
|
Bag Length |
50 to 340mm (2.0 to 13.4in) |
|
Bag Width |
80 to 260mm (3.1 to 10.3in) |
|
Reel Film Width |
≤540mm (21.2in) |
|
Film thickness |
0.04-0.12mm (40-120mic.) |
|
Reel Outer Dia. |
400mm (15.7in) |
|
Reel Inner Dia. |
75mm (2.9in) |
|
Voltage |
AC220V/50Hz, 1phase or Per customer specification |
|
Power Consumption |
VFS5000F packaging machine |
3KW |
CJSL2000 Auger filler |
1.2kw |
|
Compressed Air Requirement |
0.6 MPa0.36 M3min |
|
