Help Center(VFSL7300) Automatic Powder Packing Machine
Related Products
-
VFS5000G Automatic Packaging Machine LineUS$ 20,000 - 30,000MOQ: 1 Set -
(FVS7300) Packing Machine Line for Washing PowderUS$ 12,000 - 20,000MOQ: 1 Set
-
VFS5000FS Nut Packing Machine LineUS$ 10,000 - 20,000MOQ: 1 Set
-
(VFS5000FS) Automatic Candy Packing Machine LineNegotiableMOQ: 1 Set
-
VFS7300 for Paste, Sauce, Oil Etc Liquid Packaging MachineNegotiableMOQ: 1 Set
Specifications
1.Multi-function packing for power and flour products2.PLC control; Stainless Steel
3.Thermal transfer
4.Supper Automation
Powder packaging machine
Detailed Product Description
It is suited for automatic weighting filling and packaging as rice, Dried Foods, Tea & Coffee, Pet Foods, Nuts & Pulses, Seeds .

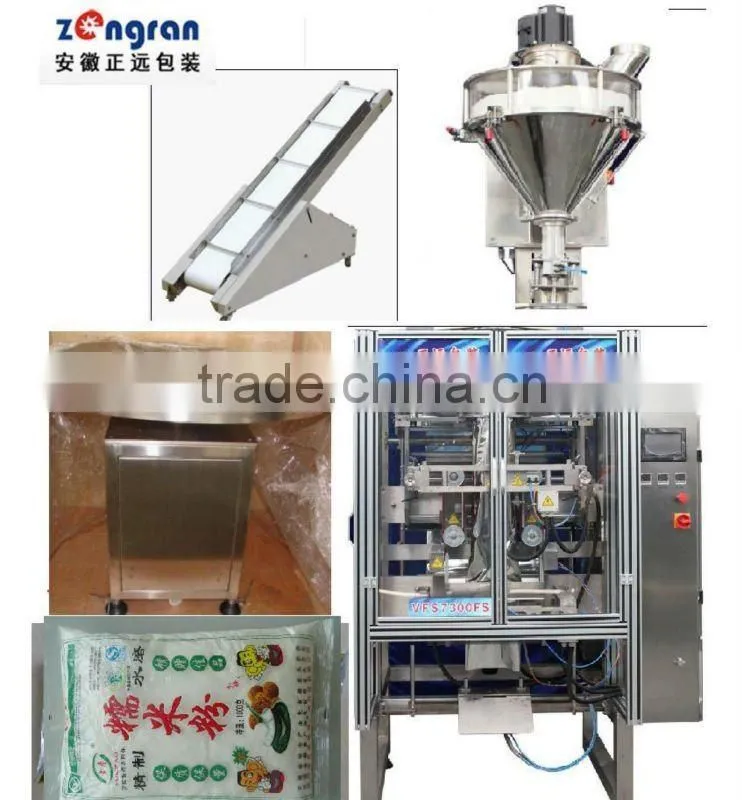

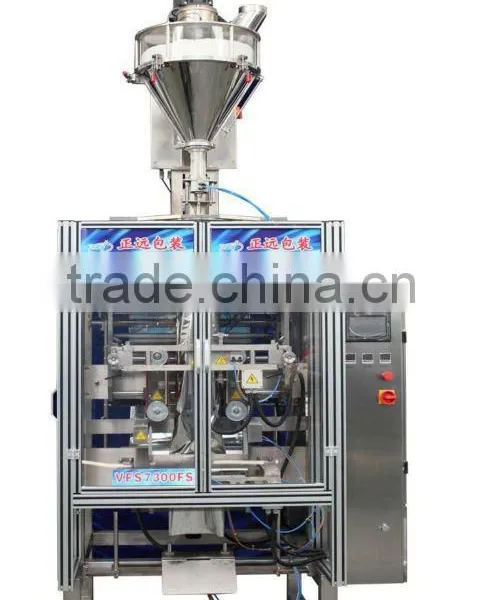

Our VFS7300 automatic weighing packing machinery unit is made up of a VFS7300 standing filling packing machine, a CJS2000-F weighing machine, and a DT2 vertical bucket elevator.
Features of VFS7300 Automatic Weighing Packing Machine Unit
1. The functions of automatic weighing packing equipment include bag-making, filling, sealing, printing, punching and counting.
2. This machine is equipped with a servomotor automatic deviation for film pulling with timing belt.
3. Reliable performance-based PLC control apparatuses are supplied from internationally well-known companies.
4. Both transverse and longitudinal seal mechanisms adopt pneumatic system. Thus, guarantees steady packaging operational system.
5. VFS7300 is easy to maintain.
The Parameters of VFS7300 Automatic Weighing Packing Machine Unit
Measuring range |
200-5000 g |
Measuring precision |
±3 g(500 g), ±10 g(5 kg) |
Metering speed |
20-50 times/min |
Bag size |
(50-460)×(80-350) mm(L×W) |
Reel outer diameter |
500 mm |
Core inner diameter |
75 mm |
Power |
380 V/6 KW |
Air consumption |
0.6MPa, 450L/min |
External Dimensions |
3500×2005×5400 mm(L×W×H) |
