Home > Packaging & Printing > Packing Machinery > Packing Line > Tea Bag Packaging Machine From Zengran, DXDT8B

Tea Bag Packaging Machine From Zengran, DXDT8B

Name: Tea Bag Packaging Machine From Zengran, DXDT8B
Brand: Zengran
SKU: 128952301
Availability: InStock

US$ 10,000 - 20,000 MOQ: 1 Set

Key Specifications

Condition:

New

Application:

Food

Packaging Type:

Bags, Film

Anhui Zengran Packaging Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai China

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Application Food

Packaging Type Bags, Film

Packaging Material Paper, Plastic

Automatic Grade Automatic

Driven Type Pneumatic

Voltage 380V

Power 2KW

Place of Origin Anhui, China

Brand Name Zengran

Model Number DXDT8B

Dimension(L*W*H) 1800*1200*1680mm

Weight 300kg

Certification CE/ISO9001

After-sales Service Provided Engineers available to service machinery overseas

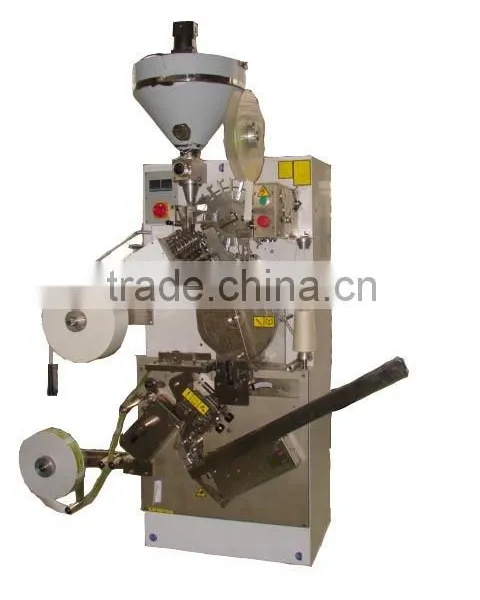

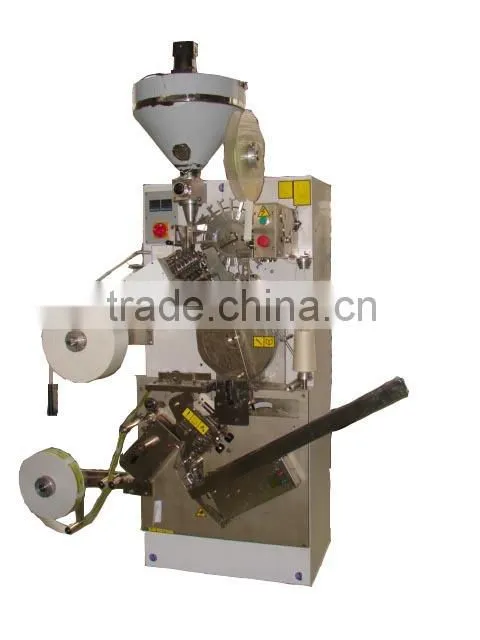

Tea bag Packaging Machine from Zengran, DXDT8B

Description

Automatic tea bag packing machine has functions of filling, heat sealing, threading, labeling and over wrapping.

Advantages:

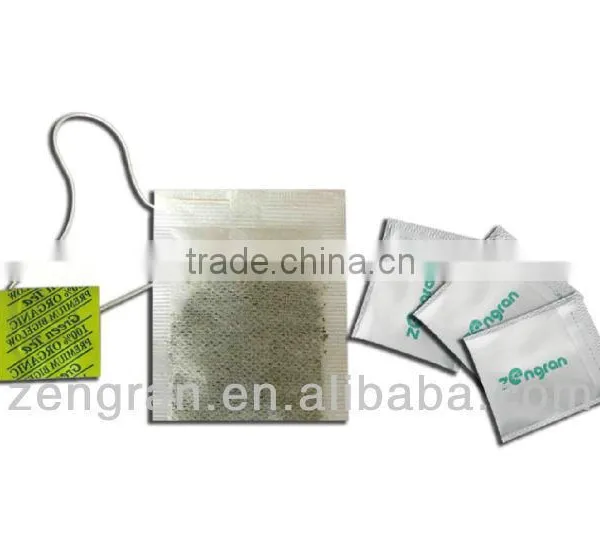

1. Heat sealed rectangular single chamber filter bags with thread, tag & envelopes

2. Special feeder for tea leaves.

3. In GMP standard

4. Can set for only naked filter bags

Technical Specification:

Working Speed:	up to 90-100 BPM
Dosing Range:	Max. 8 cc (cubic centimeter)
Filter Bag (Inner Bag):	Shape: 4 side sealed rectangular single chamber filter bags Size: 60 mm x 50 mm ( 2.36 in x 1.97 in) Filer Paper: heat sealing type, 16.5g/m2(21g/m2, 23g/m2) in web(roll) of 120 mm ( 4.72 in ) width, out dia. 400 mm ( 15.75 in ) inner dia. 75 mm ( 2.95 in )
Tag:	Shape: square, rectangular and octagonal Size: 28 mm x 24 mm (1.10 in x 0.94 in) Tag paper: 70g/m2 printed on both sides and notched in Rolls of 28 mm (1.10 in) width.
Envelope (Out Bag):	Shape: as envelope Size: 70 mm x 65 mm ( 2.76 in x 2.56 in) Envelope Paper: heat sealing type, 70 g/m2, in Rolls of 65 mm ( 2.56 in ) width.
Cotton thread:	Cotton
Glue For Tag:	Poly Vinyl Acetate
Power:	2.5 kw
