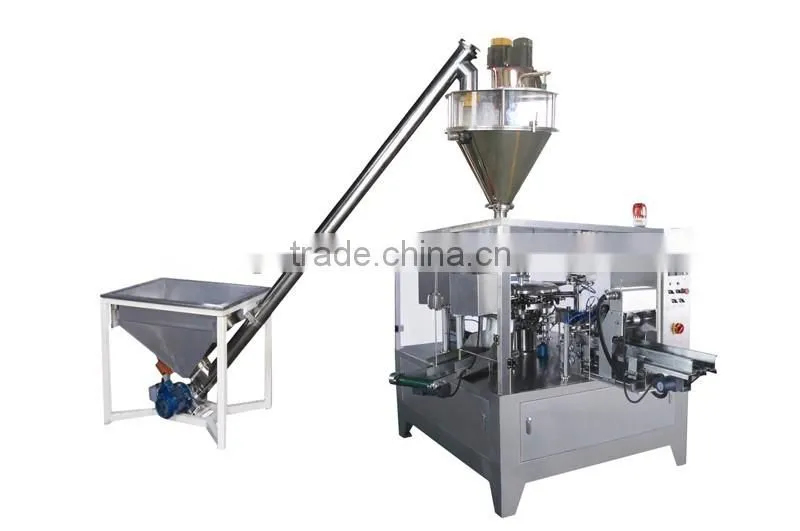

CF8-200 Automatic Rotary doypack packing machine
Applications:
All kinds of powder materail, etc.
Bag type:
All type of heat sealable preformed side seal bags, fin seal bags, gusseted bags, block bottom bags, zip-lock re-closeable bags, stand-up pouch with or without spout, etc.
Features:
1 High quality and performance.
2 Good stable and also good machine exterior.
3 Own extensive range in filling productions.
4 Easy operate by touch-sensitive screen, PLC and electric control system.
5 Friendly man-machine interface.
6 Speed can be adjusted by frequency conversion within the range.
7 Volume changed easy by adjusting handle in the paste filler.
8 Prefect sealing system.
9 Good safety secure and so on.
Safety:
1 No bag – no filling- no sealing, machine alarm.
2 Bag opening miss- no filling-no sealing, machine alarm.
3 Machine stop or alarm when the air pressure is abnormal.
4 Error position display at the control panel.
5 Control panel locate on the right side top of the machine.
6 Outside of the machine and all the parts which touch production all made by stainless steel.
7 There are several safety doors made by aluminum Profile Frame.
8 Machine surface can be wash by water and brush by cloth.
Main Functions (Standard & Optional):
Technical Specification:
Model |
CF8-200 |
No. of working stations |
Eight |
Bags size |
W:100~200mm L:100~300mm |
Filling Volume (depending on type of products) |
5 – 1000g |
|
Capacity (depending on type of product and packaging material used) |
20-35 bags/min |

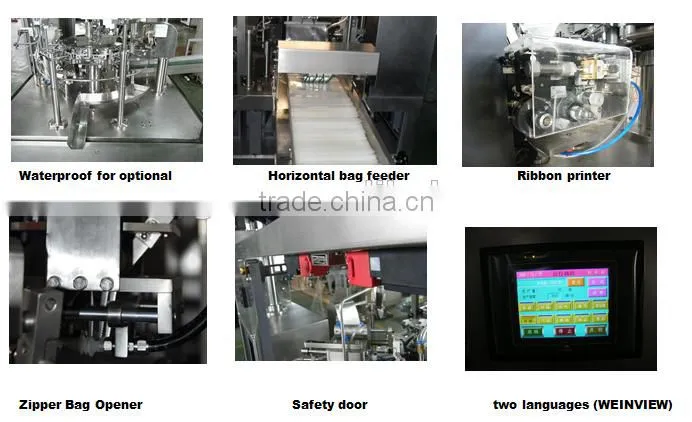

Working Process :
Station 1 Bag dispensing (Bag feeding)
Horizontal type feeding bag
Station 2 Coding (Date Printing)
Ribbon or Ink-jet for option
Station 3 Zipper opening There are suckers to open the bag and an opening detection device insert into the opened bag to expanding it and detect if it is open or not.
Station 4 Bag Opening
To ensure the bag opened enough.
Station 5 Filling solid
Measured its weight by RZKZ-10, its weight can be adjusted by the touch screen on the computer combination scale
Station 6 Dust clean
Station7 Heat sealing
To seal the bag with a couple of heat sealing air bar
Station 8 Forming and product output To make the sealing stable and preventing from wrinkling with a couple of cold press, then output the finished production automatically.( the sealing pattern you can option, net or straight lines)
We provide best packaging suitable for sea shipping:
1. All goods of Zengran packing machine are packed in wooden box.
2. Our engineers are available to service machinery overseas to help customers to solve machine problems.
The installation can be provided by the ZENGRAN company.
It must be after shipment has arrived and factory must ready equipped with all necessary requirement before booking installation with ZENGRAN company . Our engineers will come to the site for the complete and final installation.
During the installation session, a one day training course will be provided to the customer for operation and maintenance procedure.
The purchase at US$80/person/day plus all local transportation, air tickets(round trip), and minimum of 3 star hotel room & board is provided. Day charges include travel days.
We Promise Customer Perfect Guarantee and After-Service:
As for Zengran packaging machine,our company provides 12 months for all mechanical parts with the exception of electrical and electronic parts and those subjects to normal wear and tear. Meanwhile, the guarantee starts from the shipment (B/L date). The guarantee is intended limited to the replacement of the broken part after checking the construction fault. The guarantee declines in the case the customer proceeds, without proper consent, to the replacement, modification, or repair of parts. The inspection of the causes of the trouble or the breakdown of the parts is exclusively up to the manufacturing company. All in all, our company can offer you assured products.
*Industry leading enterprise,national high-tech enterprise,high-tech enterprise of Anhui Province and innovation enterprise of Anhui Province.
*Has already signed global sourcing stategy plan with many World top 500 companies,ans has provided packaging solutions and its products spread over every trade.
*Has about 600 employees,about 70,000m2 production workshops and an annual production capacity of more than 2000 sets of various types of packaging machinery,and has the capability of providing of providing whole plant intelligent packaging production line for customers.
Specialized manufacturing:
1.VFFS Packaging Machine line
A.Automatic granular,powder,liquid packing machine
B.Automatic food packing machine
C.Automatic tea packing machine
2.Multihead weigher,Linear weigher,auger filler,counting machine
3.Automatic vacuum packing machine line
4.Automatic secondary packing machine(put small bags into large bags)
5.5-50kg Automatic bag feeding packing machine
6.Check weigher,metal detector,conveyor,elevator
7.Automatic carton case packing line
8.Automatic vegetables,noodle packing line
Before we can give you our best packaging solution,
We need the following information:
- What product/material going to pack?
- Packing in pre-made pouch or film formed automatically?
- Packing weights/volume?
- Bag type?
- Bag sizes?
- Request Packing speed?
