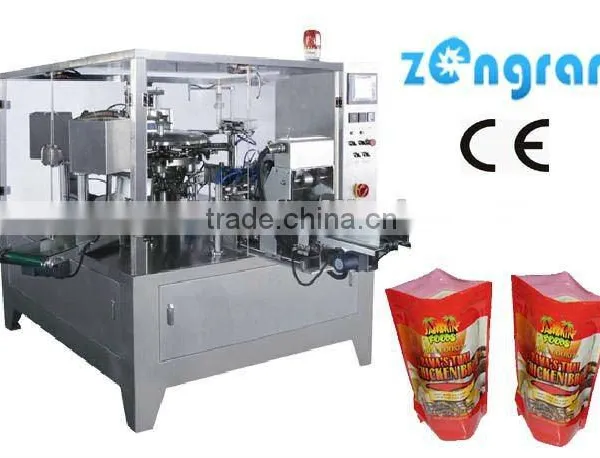

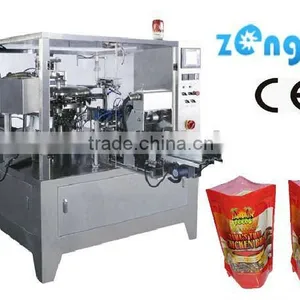

Help CenterAutomatic Rotary Bag-given Packing Machine
Related Products
-
Spice & Powder Material Rotary Packing LineUS$ 1 - 2MOQ: 1 Set -
Snack Food & Nuts Food Rotary Packing Plus Counting LineUS$ 10,000 - 12,000MOQ: 1 Set
-
CF8-260A Automatic 8-station Rotary Packing Machine for CookieUS$ 13,500 - 15,500MOQ: 1 Set
-
CF6-200A Automatic Liquid Detergent Rotary Packaging MachineUS$ 15,000 - 18,000MOQ: 1 Set
-
CF8P-2000A Full Automatic Paper Bag Flour Packing Machine 1KGUS$ 50,000 - 60,000MOQ: 1 Set
Specifications
1.Automatic packing machine for premade pouch bag
2.Customized requirement will be received
3.PLC Control & Touch
4.CE&ISO
All about our Company
1- Anhui Zengraqn Machinery Automation Co.,Ltd is a high and new technology enterprise
which specialized in R&D and manufacture automatic packaging machine since 1995.
2- Specialized in 1kg-50kg powder & granule automatic bag packaging machine, secondary
packaging machine (small bags into big bag), bags/battles into box line Robot Palletizer,
automatic packing and packaging line, bag-sewing machine.
WELCOME TO VISIT OUR COMPANY !!!
Main technical Parameters
MACHINE DETAILS
THIS IS PACKAGING PRODUCTION LINE AND BAG-GIVEN PACKAGING MACHINE HAVING SIX (8) WORK SATIONS AND ITS FUNCTIONS ARE AS FOLLOWS.
FEATURE
HIGH QUALITY AND PERFORMANCE
GOOD STABLE ANDALSO GOOD MACHINE EXTERIOR
OWN AN EXTENSIVE RANGE IN FILLING PRODUCTIONS
EASY OPERATE BY TOUCH-SENSITIVE SCREEN, PLC AND ELECTRIC CONTROL SYSTEM
FRIENDLY MAN-MACHINE INTERFACE
SPEED CAN BE ADJUSTED BY FREQUENCY CONVERSION WITHIN THE RANGE
VOLUME CHANGED EASY BY ADJUSTING HANDLE IN THE PASTE FILLER
PREFECT SEALING SYSTEM
GOOD SAFETY SECURE AND SO ON

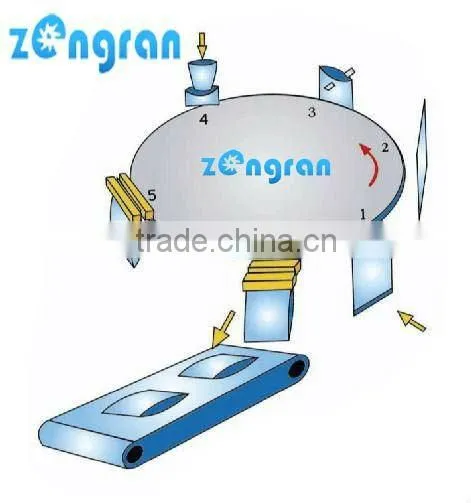

PACKAGING PROCESS
Station 1 Bag feeding
Station 2 Date Printing (option)
Station 3 Opening
Station 4 Filling nitrogen
Station 5 Filling 1(or other special design)
Station 6 Sealing 1
Station 7 Sealing2
Station 8 Forming and output
SAFETY
No bag – no filling- no sealing, machine alarm
Bag opening miss- no filling-no sealing, machine alarm
Machine stop or alarm when the air pressure is abnormal
Error position display at the control panel
Control panel locate on the right side top of the machine
Outside of the machine and all the parts which touch production all made by stainless steel.
There are several safety doors made by aluminum Profile Frame.
Machine surface can be wash by water and brush by cloth.
Main Specifications of Powder Filling and Sealing Production Line:
Production Line |
granular Filling and Sealing Production Line |
Bag types |
Standup bag, Portable bag, Zipper bag, 4-side sealing bag, 3-side sealing bag, paper bag, etc., and all kinds of compound bags |
Bag sizes |
W: 80-200m |
Filling range |
5-1500g |
Packing speed |
25-45bags/min (depended on the product and filling weight) |
Auxiliary Equipment |
Mutihead weigher , Z type elevator conveyor |
Package accuracy |
Error≥±1% |
Total power |
3.6kw |
Compress air requirement |
≥0.4 m3/min |
Our factory workshop
Our customers’ case
Our certification
After-sales service
a) Above unit include the equipments for one year spare parts, delivery along with equipment;
b) We will provide detailed User Manual, Installation Guide in English;
c) If you need our engineer to go abroad to install the equipments, you should pay round trip the transportation expenses, local board and lodging expenses and also the USD 50 wages for our engineer per day.
Thank you for your quotation and we will provide you best service as long as we can!
