Motorized LCD Lift Type Monitor Electric Lift for Conference Room Interior Design
Introduction:
LCD monitor lift is advance hiding equipment designed for audio video system in office furniture. The LCD screen of Motorized monitor Lift could be rising down into the desk and hidden under the office table when unused; Screen inside the pop up lcd lift would be rising up from table automatically by touch switch or remote control and present the workable screen on the desktop if used.
Feature:
1, The panel of LCD lift is aluminum alloy/steel stainless, with aluminum wire drawing process on surface.
2, The monitor lift adopts synchronous orbit lifting principle.
3, Conference Tabletop monitor lift works smoothly and quietly. Low noise which less than 30db.
4,Pop up LCD lift provides protecting function of LCD monitors by cutting the electricity off automatically.
5, Screen Lift would be adjustable elevation angle of LCD monitor for protecting your eyes from the direct light.
5, Motorized LCD monitor lift is controlled by two big AC motors. One controls opening and closing the panel; one controls lifting the monitor up and down and adjust the angles of the monitor.
6, Control system: Touch Switch on Desktop Monitor Llift panel, RF remote control, RS232 AND rs 485 central control.
Characteristic
1, high quality aluminum alloy finishing with motors
2, A=A strong carton with foam cushion and waterproof film
3, white/black/gold color is available for color selection
4, Power plug and voltage could be changed accordingly.
5, OEM with logo on product and packing is available
6, Customized made is available
7, Quality of LCD Monitor Lift had approved by CE
LCD Monitor lift Application:
LCD Monitor Lift is widely used on conference system, like video conference system, tv conference system, financial analyzing system, advanced office system, lecture and training room with conference table& computer desk together.
Parameter:
| Item Series | LCD Monitor Lift | ||
| Item Model | BLL-17 | BLL-19 | BLL-22 |
| Style | LCD lift without monitor | ||
| Products consitute | LCD monitor lift+ Remote control | ||
| Panel size | 485*145*5mm | 540*160*5mm | 600*170*5mm |
| Box size | 463*130*578mm | 520*138*625mm | 575*153*625mm |
| Panel thickness | 5mm | ||
| Lift mount size | 405*75mm | 460*80mm | 520*95mm |
| Packing size | 60*27*78mm | 61*27*84mm | 73*72*30mm |
| Voltage | 110V,220V,240V | ||
| Power | 20~25W | ||
| Tilting angle | 0~15° | ||
| Single trip time | 30s | ||
| Working temp | 5~40 | ||
| Environmental temp | 20~60 | ||
| Related humidity | 20~80% | ||
| Color | Silver/Black matt/ Golden | ||
| Remote distance | 10m | ||
| Material | Aluminum alloy draw bench panel | ||
| Control Way | Touch key-press/ Remote control/RS485 central control | ||
| Running Way | Tubu motor with rack driving | ||
| Protection way | Cable Manager/Protection finger from nipping | ||
Detail Model Drawing:
Professional Service:
1, Any of inquiries will be response within 48 hours
2, Sizable accessories of products for replacement
3, Sample of LCD monitor lift is available.
Warranty:
Study the user’s manual carefully before installation.
All of our products provide 12 months warranty! The warranty period starts from the goods receipt by initial consignee.
Payment:
T/T, L/C, Western Union, Money Gram, Crash is acceptable

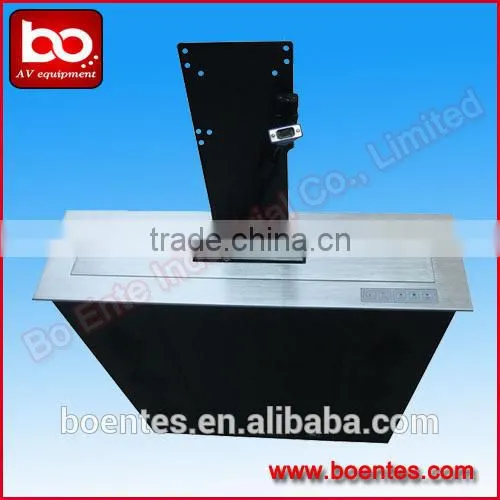

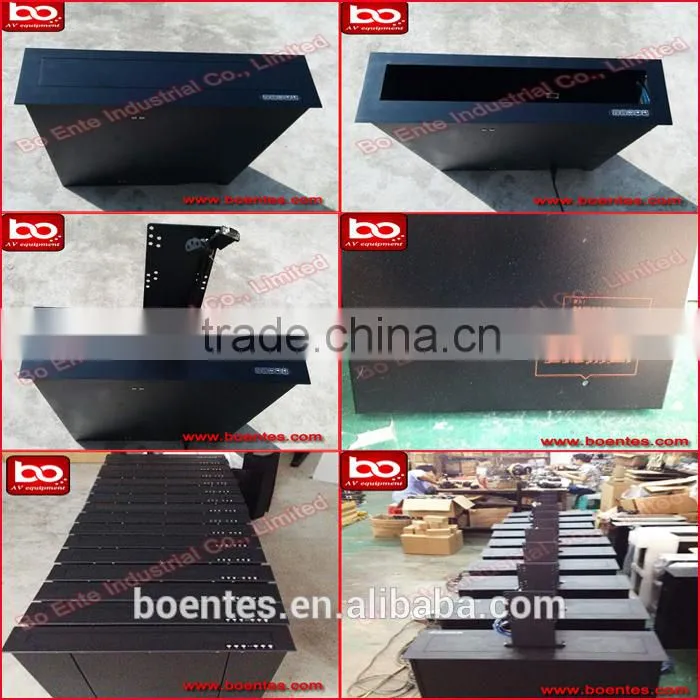

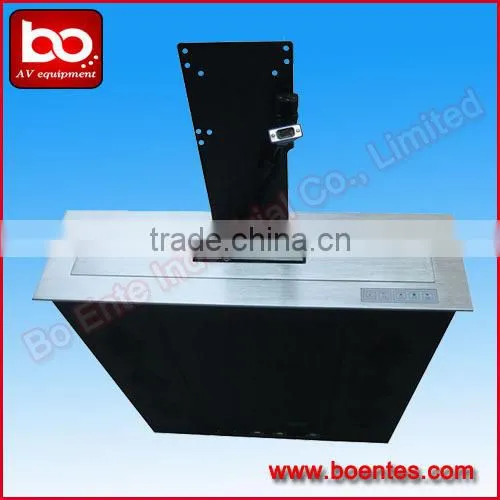

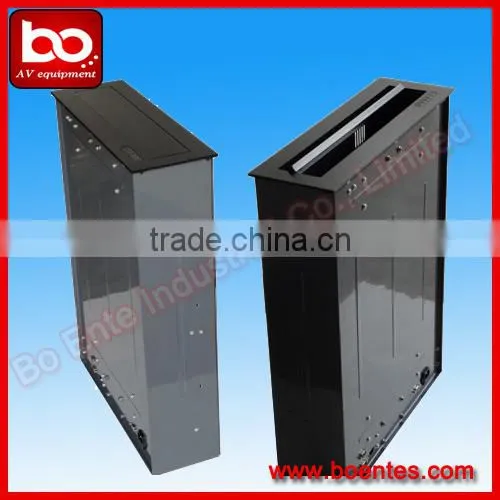

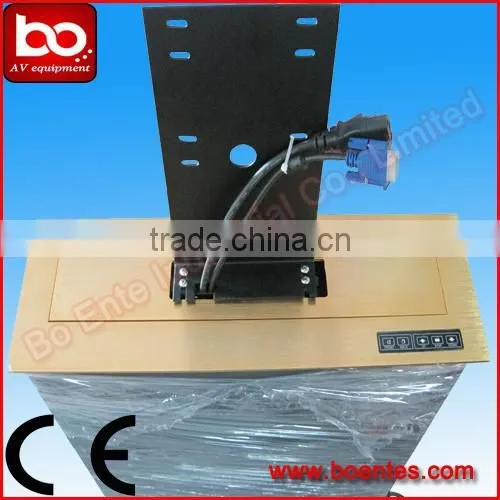

Product Pictures:
Packing Detail Pictures:

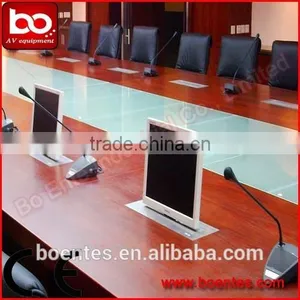

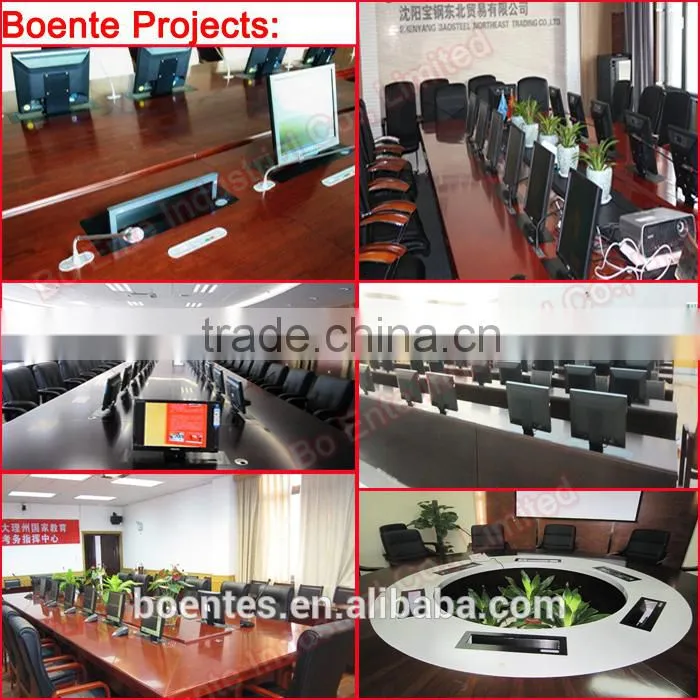

LCD Monitor Lift on projects show:
There are 15 inch, 17inch, 19inch and 22 inch LCD monitor lift for selection !
Other speical LCD monitor lift with microphone, desktop socket are available !
Feel Free to contact us if interested !
