Conference TV Lift System with TV Bracket/47 Inch Motorized LCD Monitor Lift

Specifications

Plasma TV Lift
Size: 32~47Inch
Synchronous motor with TV Bracket
electic Lifting up & down with remote control
CE approved

Conference TV Lift System with TV Bracket/47 Inch Motorized LCD Monitor Lift



Introduction:

Motorized TV lift adopt motor with asynchronous resistance-brake. Electric TV lift possesses the character including attractive appearance; smooth moving, quite, locating with precision, comprehensive, functions and installation convenience, simple operation and high capacity. Plasma TV lift is rich in controlling seems that can connect the button directly to control the TV lift machines by central control and single control.



Feature:

1. Motorized TV lift adopt Synchronous machine with electro-magnetic brake

2. Electric TV Lift is Lifting up & down in a close way

3. Material of LCD Monitor Lift : High quality steel, modern design and excellent quality.

4. Traveling with double orbits, moving smoothly and quietly

5. Control Methods of Motorized TV Lift are Manual control & Wireless Remote Control infrared ray;

6. Conference TV lift System is able to penetrate wood to receive the signal within radius 50m

6. Suitable for plasma TV from 32'' to 47''



Characteristic

1, high quality steel finishing with motors

2, A=A strong carton with foam cushion and waterproof film

3, white/black/gold color is available for color selection

4, Power plug and voltage could be changed accordingly.

5, OEM with logo on product and packing is available

6, Customized made is available

7, Quality of TV lift had approved by CE



 Application:

Motorized TV lift is widely used for TV audio & video conference system, large-conferencing system and training room. TV bed or TV cabinet is also available.



Motorized TV Lift Parameter:

TV Lift	Specifications
	Model
	TL-42	TL-47	TL-53
Suitable for TV Size	Up to 42''	Up to 47''	Up to 53''
Height	870mm	960mm	1038mm
Width	333mm	333mm	333mm
Maximum Extension	680mm	770mm	830mm
Power	25 Watts	25 Watts	25 Watts
Load Capacity	132 lbs (60kg)	132 lbs (60kg)	132 lbs (60kg)
Voltage:	110V 60HZ or 220V 50HZ
Unit Weight	77 lbs (35kg)	81 lbs (37kg)	88 lbs (40kg)
Control Ways	Wireless Remote/ Manual Switch/ Control System
Packaging	1 Piece per Carton
Carton Size	102cm*54cm*43cm	110cm*54cm*43cm	120cm*54cm*43cm



Professional Service:

1, Any of inquiries will be response within 48 hours

2, Sizable accessories of products for replacement

3, Sample of Motorized TV lift is available.



Warranty:

Study the user’s manual carefully before installation.

All of our products provide 12 months warranty! The warranty period starts from the goods receipt by initial consignee.



Payment:

T/T, L/C, Western Union, Money Gram, Crash is acceptable

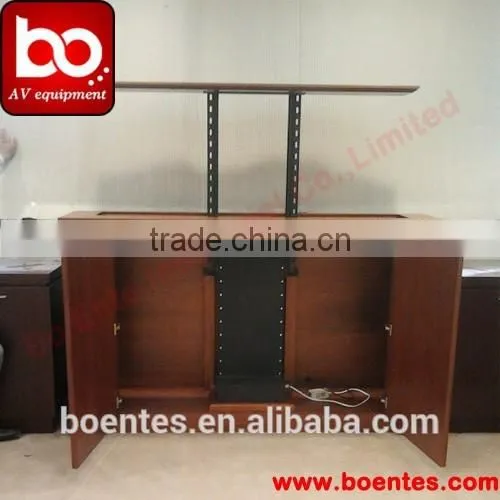

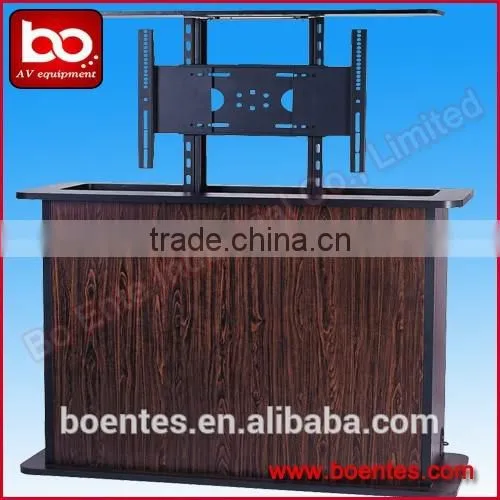

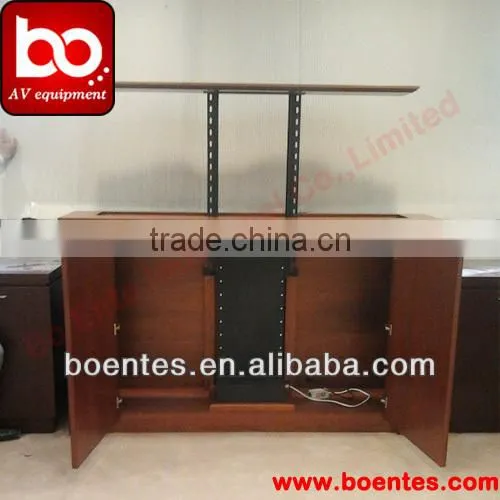

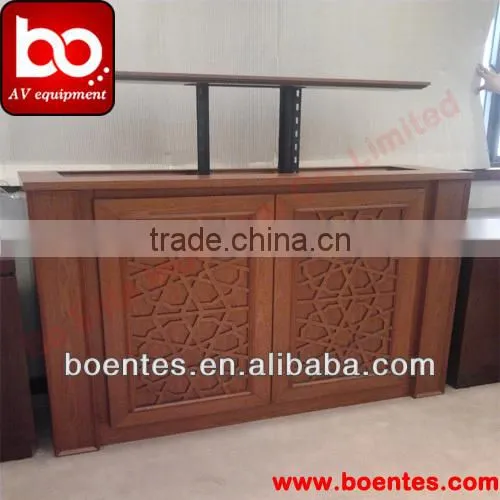

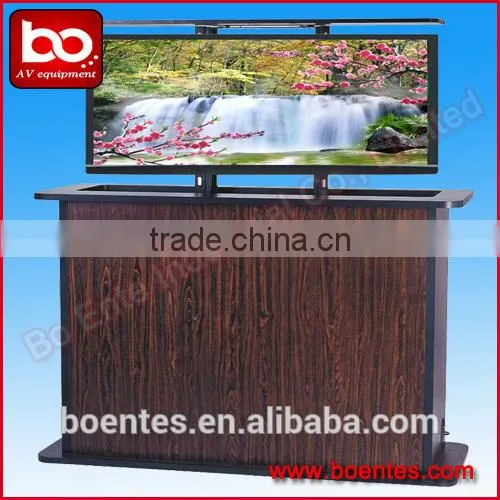

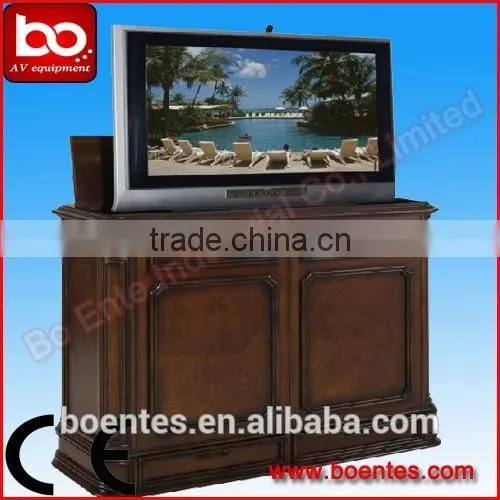

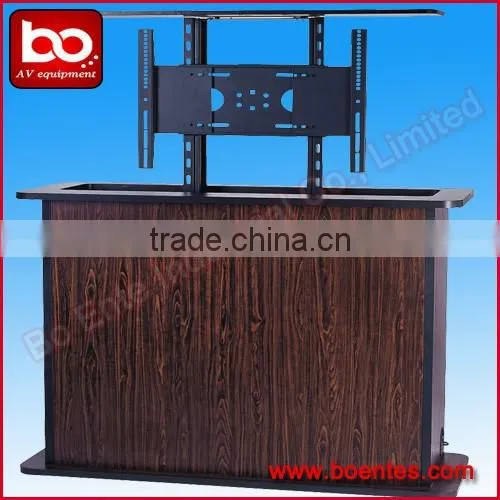

Product Detail Pictures:





Product Packing Detail:
