road marking machine , All kinds of Road paint machine and Road marking machine
HangZhou Eaglerd Traffic Industry & Trade Co.,Ltd was founded in 2007, our company is a professional supplier of roadway safety and traffic facilities products, we are engaging in the roadways safety products' production, construction and sale . Our products focus on the roadway safety and "Let the road more safety "is our purpose, Our products are sold to worldwide ,our product got CE approval and CNAS certification, Our market includes EU,USA, South America, Middle East , East South Asia, Africa, Russia, Australia ETC.
All kinds of Road marking machines, Road paint machines

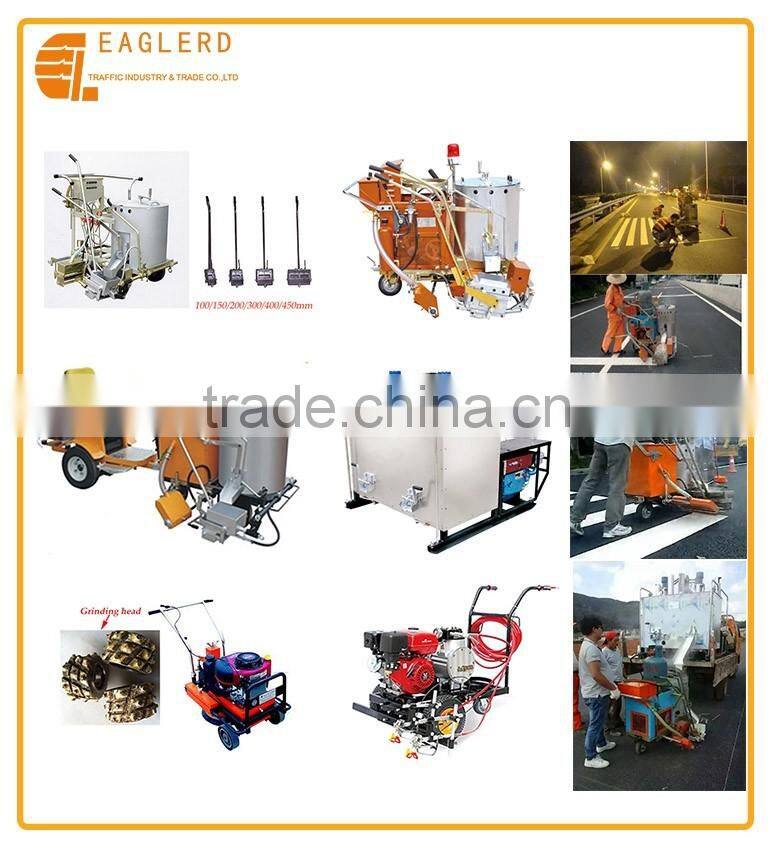

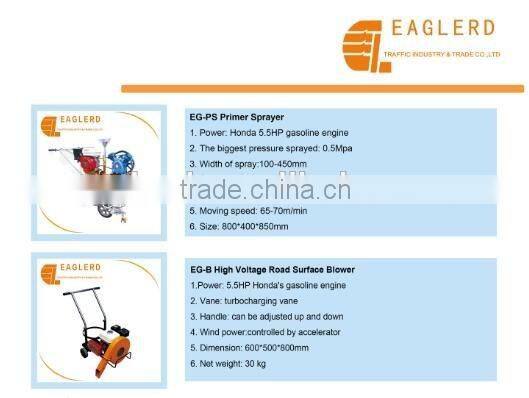

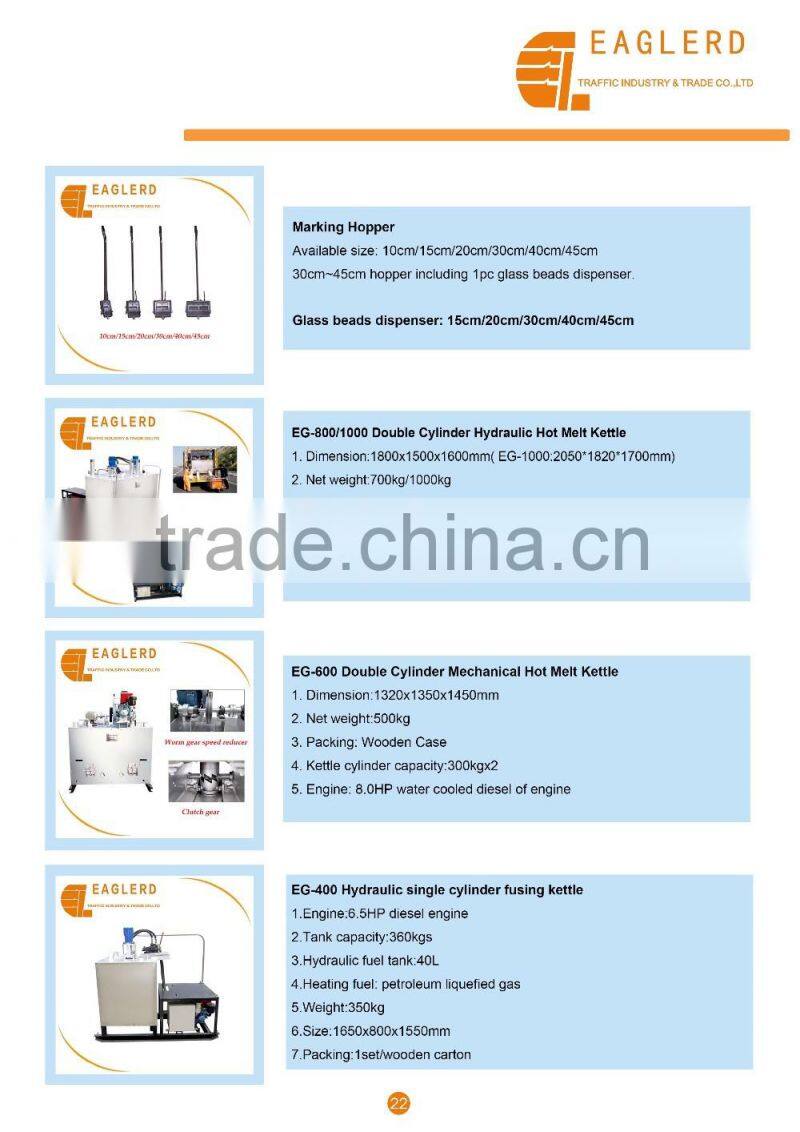

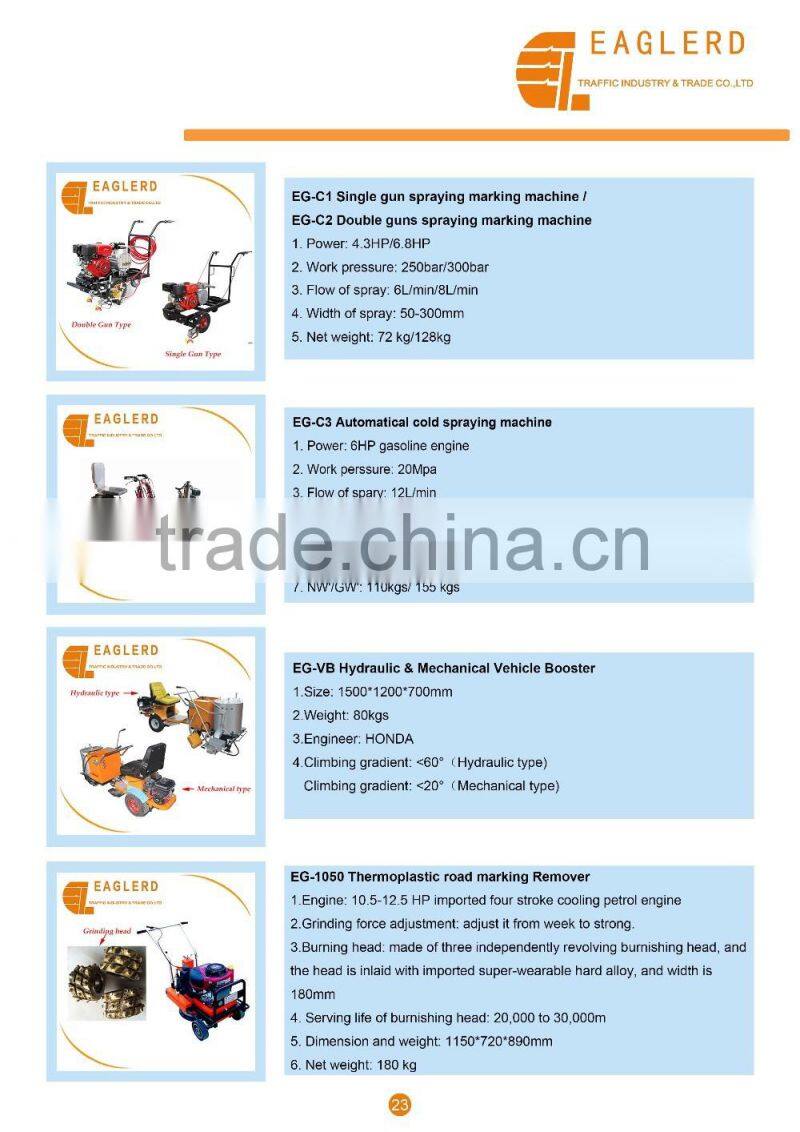

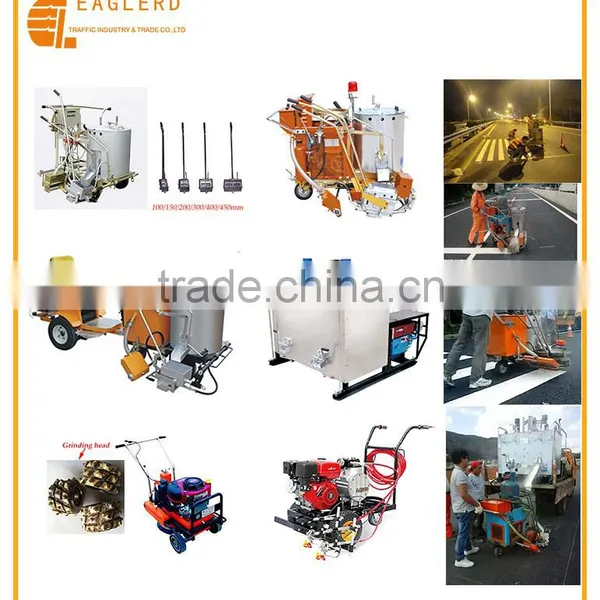

We have Hand push thermoplastic road marking machine, automatic thermoplastic road marking machine, Vibration line marking machine, thermoplastic preheater, cold spraying marking machine, thermoplastic road marking remover, blower, booster,etc.
Technical parameters of hand push thermoplastic marking machine:
| 1. Paint barrels: | Stainless steel heater and double high-carbon steel bottom, vertical paddle mixer with 100kg capacity. |
| 2. Glass bead box: | 10kg/box |
| 3. Glass beads sow brower: | Self gear shifting seeding. It can adjust glass beads sowing width according to line adjustment. |
| 4.Marking shoe: | High-prcision ultra-thin material manufacturing and scraper-type structure, the standard configuration is 150mm |
| 5. Landing knife: | Carbide, with eccentric sleeve device canadjust the thickness from 1-3mm |
| 6. Alloy Wheel: | Use special heat-resistant rubber, it has a positioning device upon back wheel to make sure a straight line direction |
| 7.Heating method: | Petroleum gas |
| 8.Marking Width: | Engineering requirements in accordance with the replacement of different specifications marking shoes within 10/15/20/30/40/45cm |
| 9.Size: | 1100*980*1000mm |
| 10Net weight: | 130kg |

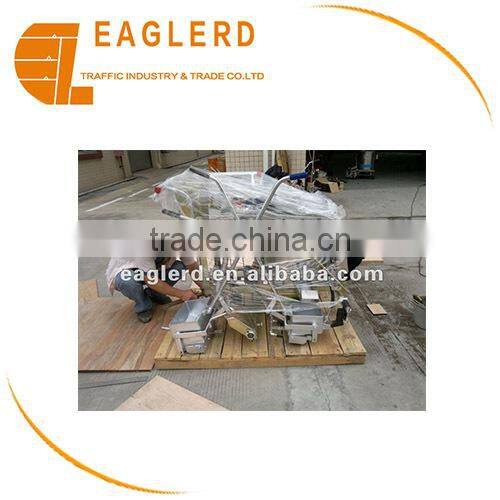

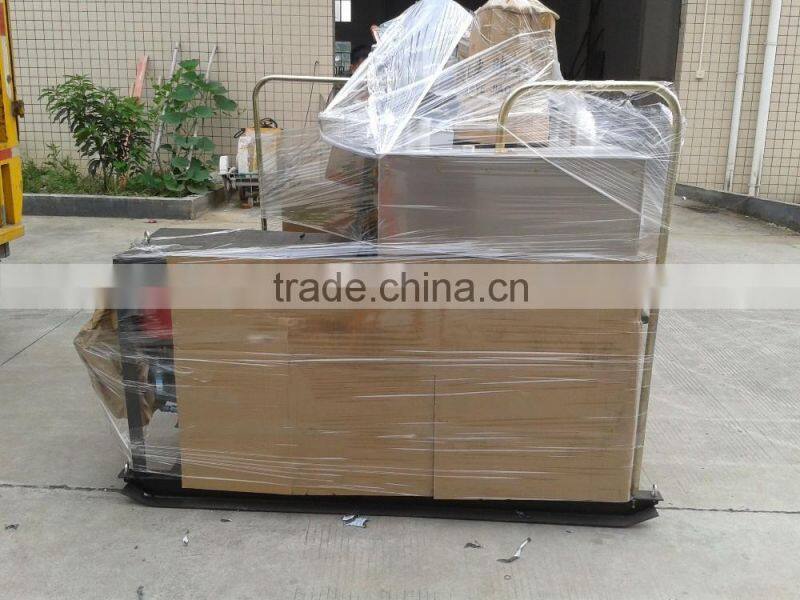

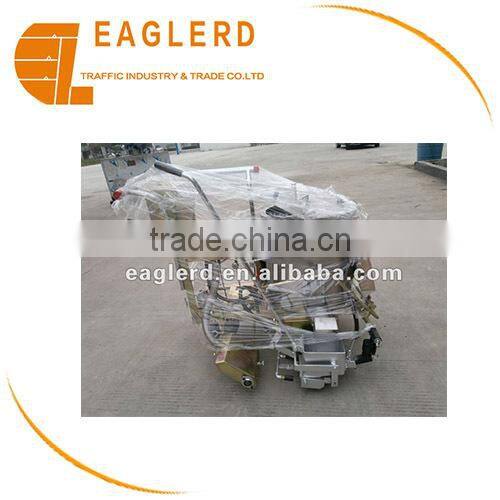

Pictures:
Specification:
Hand-push thermoplastic road markng machine adopt single-handle marking shoe. It has advantage of easy using and hard to slip paint out. The glass beads spreader complete with speed control buffer devices and can change the width of glass beads according with needing. The positioner upon back wheel make sure the machine go straight. This machine has the advantage of high-quality construction, fast , flexible operation, convenient maintenance and so on. It can be suitable for highway, municipal roads, village or town road, guiding arrows, words, parking lines, factories etc.
