Products Name: ASTM2846 equal tee pipe and fittings valves for cold and hot water supplying
Properties
1) Healthy, anti-bacteria, conforming to drinking water standards
2) Resistant to high temperatures, good impact strength
3) Convenient and firm installation, low construction expenses
4) Excellent heat-insulation property, minimum thermal conductivity
5) Lightweight, convenient to transport and handle, good for saving labor
6) Smooth inner wall, reduce pressure loss and increase flow speed
7) Sound insulation (reduced by 40% compared to galvanized steel pipes)
8) Light color and excellent design, suit both exposed and hidden installation
9) Recyclable, environment-friendly, in accordance with GBM standards
Appication:
Industries – Chemicals, Effluents, Air, Food
Utilities – Water, Gas, Cable Ducting
Building – Soil, Waste & Rain Water (SWR), Plumbing
Energy – Solar Water Heaters and Geysers
Corrosive Fluid Pipe Lines – Dyehouses, Chrome & Zinc Plating Plant, etc.
Non-Explosive Dry Materials Handlings – Sand, Cement, Rock Salt Plastics Comp
Related Products:

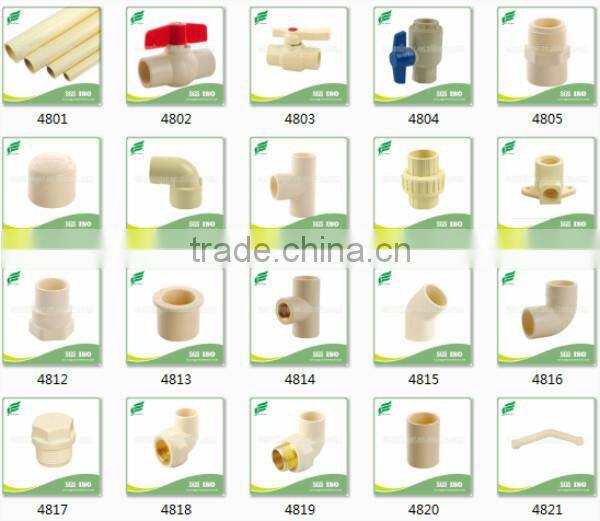

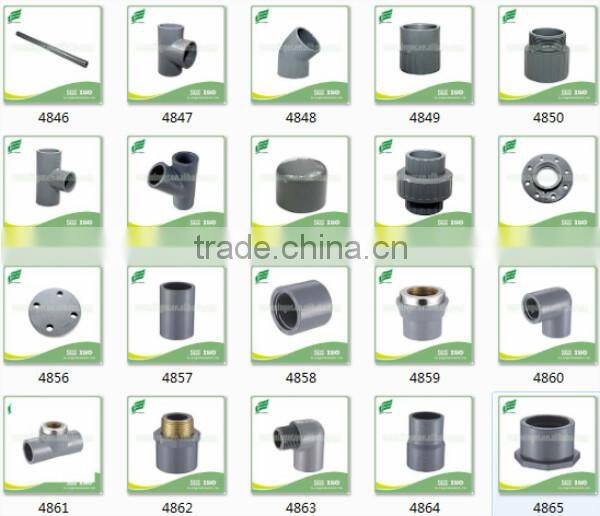

CPVC ASTM D2846 Family
CPVC DIN Family

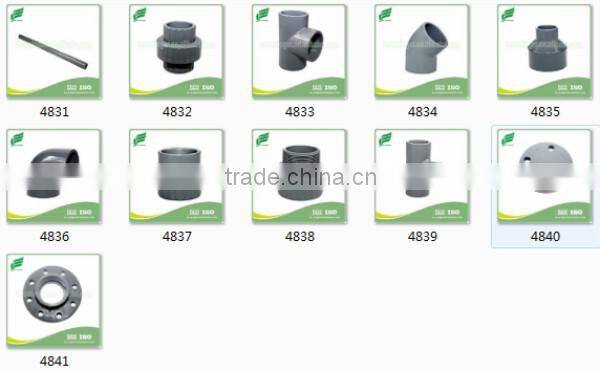

CPVC SCH80 Family
S

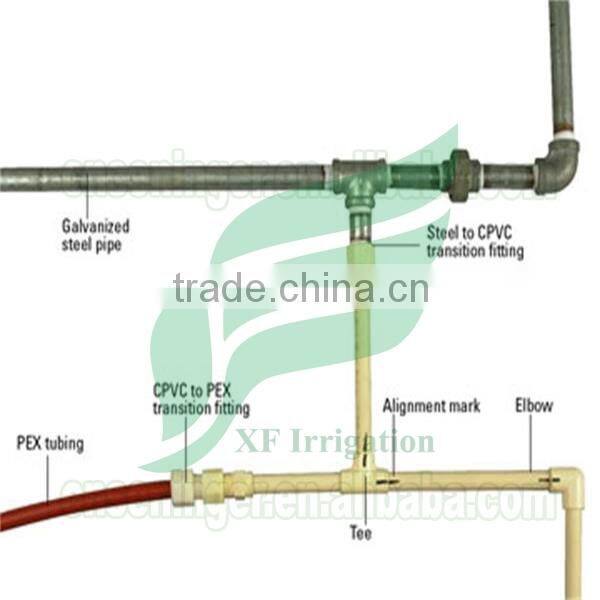

Working picture for CPVC pipe and fittings
Plastic Pipe System
Assemble the parts in a dry run and draw alignment marks so when you put the pieces together again they will face the right directions.

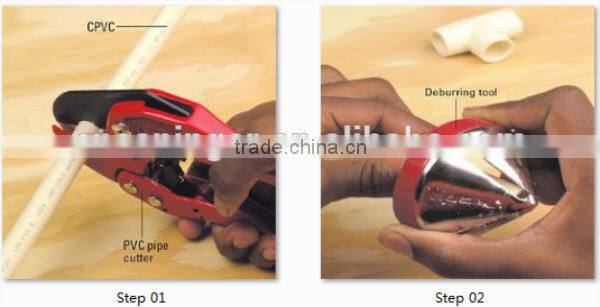

Measure for the desired length and mark the pipe with a felt-tip marker. Cut small-diameter plastic pipe with a PVC pipe cutter (shown) or a saw and miter box.
Step 02
PVC pipe cutters cut cleanly, but if you use a saw or there are any burrs, use a deburring tool to smooth the inside and outside of the cut end. Dry-fit the pipes and make alignment marks.
Step 03

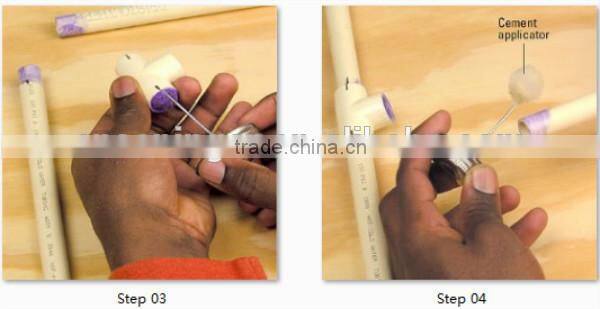

Using a small can with a small applicator brush, apply purple primer to the inside of the fitting and the pipe end. Place the pieces on a surface where they will not get dirty.
Step 04
One pipe and fitting at a time, apply cement to the inside of the fitting and to the pipe end.
Step 05

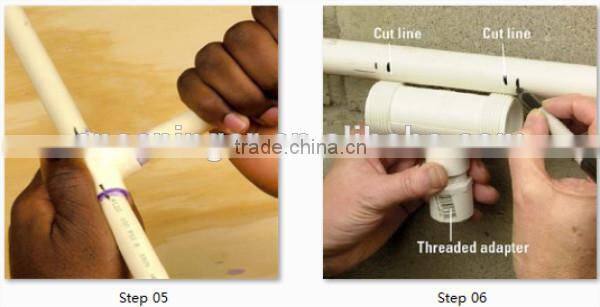

Quickly insert the pipe into the joint and twist. Where there are alignment marks, make sure they meet. Hold for a few seconds and then wipe the joint with a damp rag.
Step 06
Plastic compression tees are ideal for breaking into an existing line where it is difficult to glue a standard tee. Note the distance that the pipe should be inserted into each end of the compression tee -- usually 1/4 inch. Mark the length of the tee and the insertion points (your cut lines).
Step 07

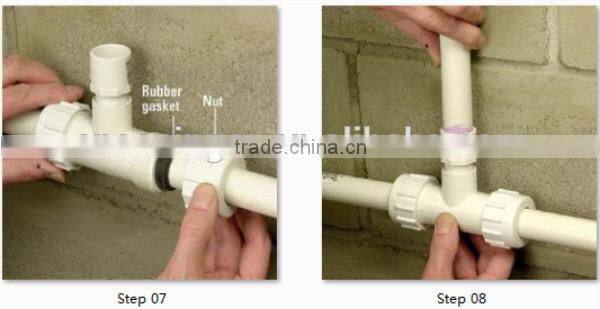

Turn off the water and drain the system. Use a plastic-pipe saw or other fine-tooth saw to cut the pipe. Deburr the pipe. Slip the nut and rubber gasket onto each end of the pipe. Bend the pipe out slightly to slip the tee into place.
Step 08
Tighten the nuts with groove-joint pliers. Do not overtighten. Add the extension to the line, following the steps above for cementing plastic pipe. Turn on the water to test the extension.
Packaging: Standard export carton or customized.
Shipping: By Sea/Air/Courier
1. To provide professional technical guidance and design solution FOC
2. Strict quality control system and rich manufacturing to make sure the high-quality products.
3. Competitive costs supported by stable raw materials supplier.
4. Strong overseas sales team to assist customers to develop sales strategy
5. Fast, efficient and professional online service,like email, skype, whatsapp tools.
6. Complaint to our general manager () if not satisfied with anything, ensure timely reply within 24 hours
7. Multilingual communication services (English, Spanish, Japanese etc.)
8. OEM/ODM services.
