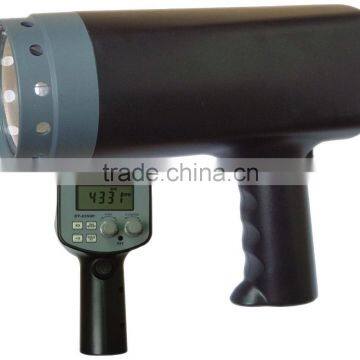

Help CenterStroboscope DT2350PA / PB / PC / PD / PE
Related Products
Applications:
The Stroboscope is capable to provide image of single, two or multiple stillness for the vibration object, rapidly rolling object or a periodic motion object,and can also use to observe the movement tracks.
* Digital display gives exact reading with no guessing or errors; Wide measuring range and high resolution
* Automatic stop flashing to save electricity and improve flash tube lifetime.
* Internal / external triggering fast conversion; x2 and ÷2 button for fast adjustment.
* Use photoelectric signal while external triggering, achieve automatic tracking function of the pattern.
* Use microcomputer technology, emerging technologies, anti-jamming technique and other advanced technology, it can measure the rotative velocity without contacting the object.
| Display | 5 Digits 10 mm LCD |
| Measurement Range |
A:50 ~ 12,000 FPM B:50 ~ 40,000 FPM
C:50 ~ 20,000 FPM
D:50 ~ 30,000 FPM
E:50 ~ 2,000 FPM (Fit for Print and Textile)
|
| Accuracy | ±( 0.05% n + 1 d ) |
| Resolution |
0.1 FPM(50 ~ 999.9 FPM ) 1 FPM(Over 1000 FPM )
|
| Sampling Time | 0.3 Seconds |
| Internal / External Triggering Conversion | |
| External Trigger Level | 3 ~ 24 V |
| With ×2 ,÷2 for Fast Check | |
| H / L Range | Flashing Light is much Brighter at Low Range than at High Range |
| Flash Tube Life | 100 Millian Times |
| Regular Operating Conditions | No Corrosive Gas and Electromagnetic Fields |
| Operating Conditions | Temperature: 0 ~ 40 °C Humidity: < 85 %RH |
| Power Supply | AC 220 V(Optional AC 110 V ) |
| Power Consumption | About 50 W |
| Dimensions | 215 × 85 × 180 mm |
| Weight | About 1000 g |
Standard Accessories:
1. Main Unit
2. Carrying Case (B08)
3. Operation Manual
Optional Accessories:

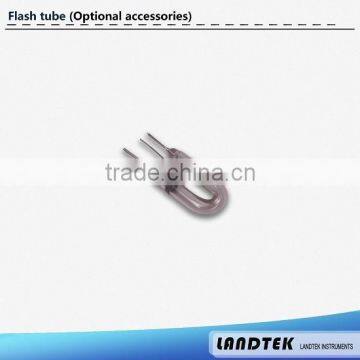

1. Spare Flashing Tube
2. Rechargeable battery only for DT-2350PA / DT-2350PE
