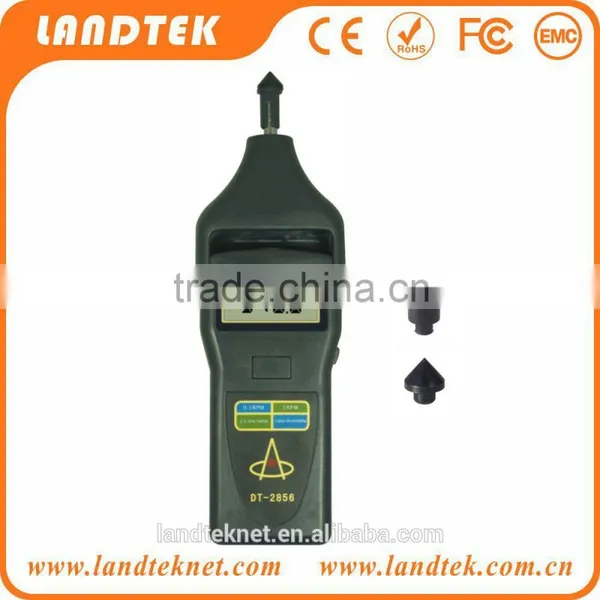

Help CenterPhoto/Contact Tachometer DT-2856
Related Products
-
Photo/Contact Tachometer DT-2857US$ 50 - 100MOQ: 1 Piece -
Photo/Contact Tachometer DT-2858US$ 50 - 100MOQ: 1 Piece
-
Portable Auto Laser/Photo Tachometer DT-2857US$ 0.01 - 1MOQ: 1 Piece
-
Functional Laser/Photo/Contact Tachometer DT-2858US$ 0.01 - 1MOQ: 1 Piece
-
Portable Induction Photo Tachometer DT-2856US$ 0.01 - 1MOQ: 1 Piece
Applications:
Used to measure rotative velocity, surface speed, frequency of motor. Applicable to the product departments of motor, fan, paper-product, chemical fiber, washing-machine, automobile, airplane, steamer etc.
* Multifunctional, one instrument combines PHOTO TACH.(RPM) & CONTACT TACH. (RPM).
* Digital display with no guessing errors.
* Wide measuring range and high resolution.
* The last value / max. value / min. value will be automatically stored in memory.
* The use of durable, long-lasting components, including a strong, light weight ABS-plastic housing assures elegant shape and ease of use.
| Measuring Range | Laser | 2.5 ~ 99,999 r / min |
| Contact | 0.5 ~ 19,999 r / min | |
| Resolution |
0.1 r / min (0.5 ~ 999.9 r / min) 1 r / min (Over 1000 r / min )
|
|
| Accuracy | ± (0.05% n + 1 d) | |
| Sampling Time | 1.0 s (Over 60 r / min ) | |
| Test Range Select | Automation | |
| Memory | Max / Min / Last Value | |
| Time Base | Quartz Crystal | |
| Laser Tach Detecting Distance | 50 ~ 150 mm / 2 ~ 6 inch (Typical), Max. 300 mm / 12 inch | |
| Power Consumption | 90 mA (Testing) | |
| Operating Temperature | 0 ~ 50 °C | |
| Power Supply | 4 x 1.5 V AA size (UM-3) battery | |
| Dimensions | 215 x 74 x 32 mm | |
| Weight | 200 g (Including Batteries) | |
Standard Accessories :
1. Main Unit ...............................1pc.

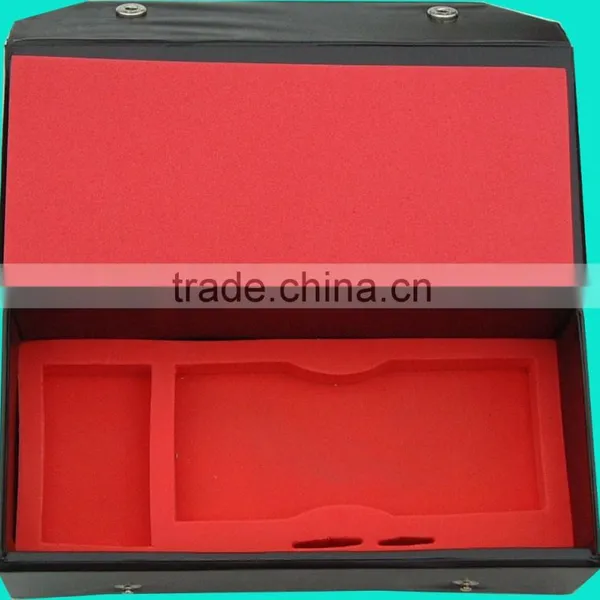

2. Carrying Case(B01) ...........1pc.
3. Operation manual ...............1pc.
4. Reflective tape 350mm .......2pc.
5. Cone Adapter(AS35A) .......1pc.
6. Funnel Adapter(AS35B).......1pc.
