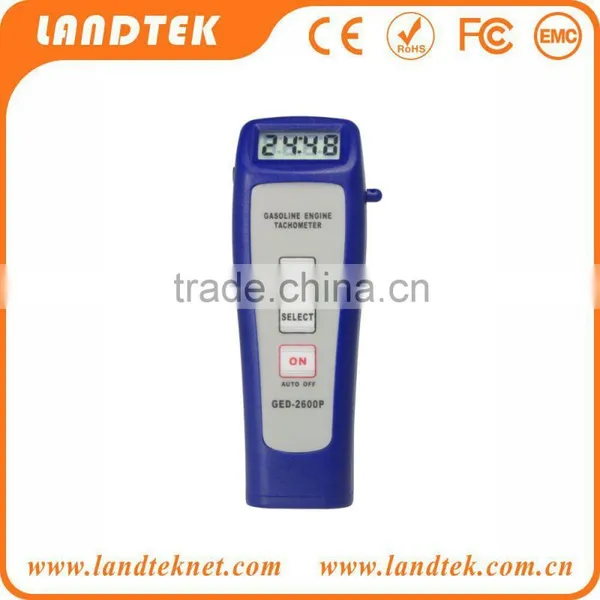

Help CenterThe Engine RPM Tachometer GED-2600P
Related Products
-
Electric Laser/Photo/Contact Tachometer DT-2236US$ 0.01 - 1MOQ: 1 Piece -
The Auto Digital Engine Tachometer GED-2600NegotiableMOQ: 1 Unit
-
LANDTEK Engine Tachometer GED-2600PNegotiableMOQ: 1 Unit
-
LANDTEK Tachometer DT-2857US$ 1 - 100MOQ: 1 Unit
-
LANDTEK Tachometer DT-2236US$ 1 - 100MOQ: 1 Unit
Applications:
The hand-held engine tachometer displays rotational speed of gasoline engines in r / min unit. It is a non-contacting type tachometer which easily measures the rotational speed just by bringing the detection head close to the high-tension wires of gasoline engines. Applicable to the product departments of motor, fan, paper-product, plastics, chemical fiber, washing-machine, automobile, airplane, steamer etc.
Features:
*Non-contacting detection enables an easy and safe measurement.
* It assures an accurate measurement because the signal indicator shows how the signal is captured.
* Accurate rotational speed can be obtained in 0.1 or 1 r / min unit.
* When the battery runs out or the voltage drops, the battery signal at the lower left corner of the display panel lights up.
* The four-digit LCD is suitable for out-door meaurement.
* Compact, light weight and easy-to-carry, enabling one-hand measurement.
Details:
| Display | 5 Digits 10 mm LCD |
| Applications | 2-Cycle ( 1, 2, 3, 4 Cylinder ) |
| 4-Cycle ( 1, 2, 3, 4, 5, 6, 8 Cylinder ) | |
| Range | 100 ~ 9,999 r / m |
| Detection Method | Ignition Spark Noise Detection |
| Accuracy | (0.05% n + 1 d ) |
| Resolution | 0.1 / 1 |
| Memory | Max / Min / Last Value |
| Power Supply | 2 x 1.5 V AAA Size (UM-4) Battery |
| Dimensions | 97 x 35 x 25 mm |
| Weight | 65 g ( Including Batteries ) |
In carton, via ocean/land/air
Quality assurance for one year,and forever maintainence.
