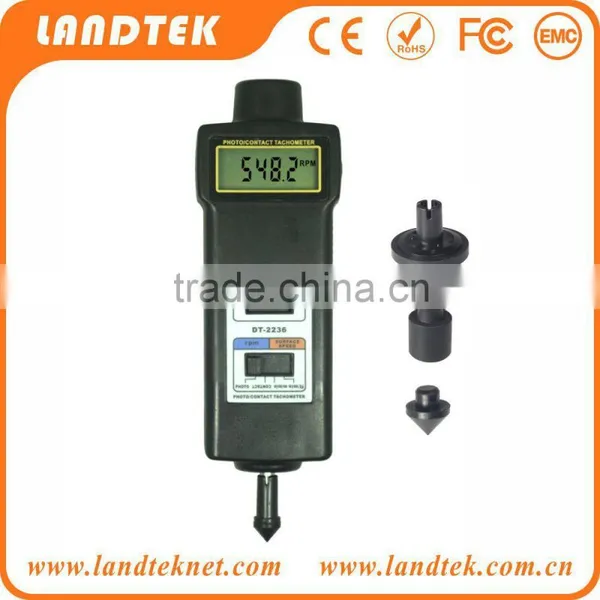

Help CenterElectric Laser/Photo/Contact Tachometer DT-2236
Related Products
Applications:
Used to measure rotative velocity, surface speed, frequency of motor. Applicable to the product departments of motor, fan, paper-product, chemical fiber, washing-machine, automobile, airplane, steamer etc.
Features
*Multifunctional, one instrument combines PHOTO TACH.(RPM) & CONTACT TACH. (RPM , m / min, ft / min ).
* Digital display with no guessing errors.
* Wide measuring range and high resolution.
* The last value / max. value / min. value will be automatically stored in memory.
* The use of durable, long-lasting components, including a strong, light weight ABS-plastic housing assures elegant shape and ease of use.
Details
Measuring Range |
Laser |
2.5 ~ 99,999 r / min |
Contact |
0.5 ~ 19,999 r / min |
|
Surface Speed |
0.05 ~ 1999.9 m / min 0.2 ~ 6560 ft / min |
|
Resolution |
Rotative Velocity |
0.1 r / min (0.5 ~ 999.9 r / min)
1 r / min (Over 1000 r / min )
|
Surface Speed |
0.01 m / min (0.05 ~ 99.9 m / min)
1 m / min (Over 100 m / min )
Or 0.1 ft / min (0.1 ~ 999.9 ft / min)
1 ft / min (Over 1000 ft / min )
|
|
Accuracy |
± (0.05% n + 1 d) |
|
Sampling Time |
1.0 s (Over 60 r / min ) |
|
Test Range Select |
Automation |
|
Memory |
Max / Min / Last Value |
|
Time Base |
Quartz Crystal |
|
Laser Tach Detecting Distance |
50 ~ 150 mm / 2 ~ 6 inch (Typical), Max. 300 mm / 12 inch |
|
Power Consumption |
90 mA (Testing) |
|
Operating Temperature |
0 ~ 50 °C |
|
| Power Supply | 4 x 1.5 V AA size (UM-3) battery | |
Dimensions |
215 x 65 x 38 mm |
|
Weight |
200 g (Including Batteries) |
|
Standard Accessories :
1. Main Unit
2. Carrying Case(B01)
3. Operation manual

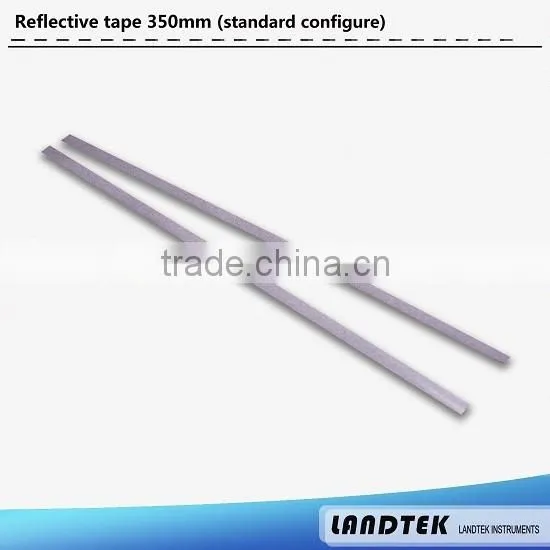

4. Reflective tape 350mm

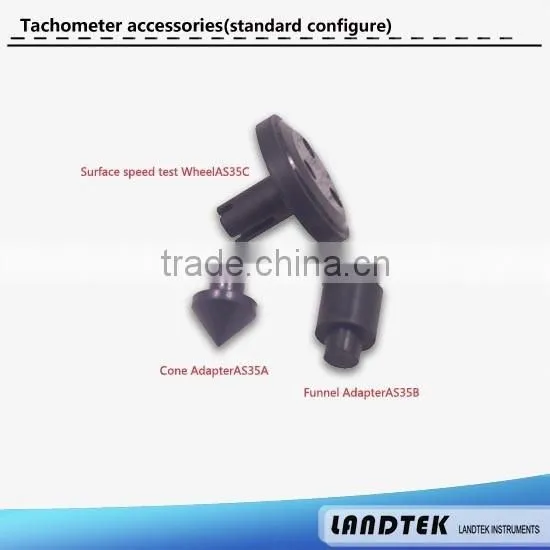

5. Cone Adapter(AS35A)
6. Funnel Adapter(AS35B)
7. Surface speed test Wheel(AS35C)
In carton, via ocean/land/air
Quality assurance for one year,and forever maintainence.
