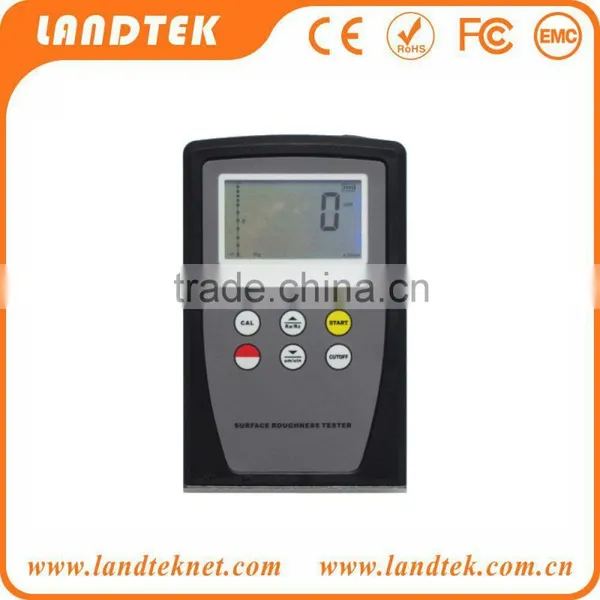

Surface Roughness Tester SRT-6100
Applications:
Measure surface roughness of:various machinery-processed parts.
Calculate correspondingparameters according to selected measuring
conditions and clearly display all measurement parameters.
Features:
* Be compatible with four standards of ISO, DIN, ANSI and JIS.
* Multiple parameter measurement: Ra, Rz.
* Highly sophisticated inductance sensor.
* Small in size, light in weight and easy to use.
* Manual or automatic shut down.
* Metric /Imperial Conversion.
* Use USB data output and RS-232 data output to connect with PC.
* Provide Bluetooth data output choice.
Details:
| Display | 4 digits, 10 mm LCD, with blue backlight | |
| Parameters | Ra,Rz | |
| Measuring Range |
Ra: 0.05~10.00 um Rz: 0.1~50.0 um
|
|
| Accuracy | ≤ ± 15% | |
| Fluctuation of display value | Not more than 10% | |
| Sensor | Test Principle | Inductance type |
| Radius of Probe Pin | 10 um | |
| Material of Probe Pin | Diamond | |
| Measurement Force of Probe | 16 mN(1.6 gf) | |
| Probe Angle | 90° | |
| Vertical Radius of Guiding Head | 48 mm | |
| Maximum driving stroke | 12.5 mm / 0.5 inch | |
| Cutoff length (l) | 0.25 mm / 0.8 mm / 2.5 mm optional | |
| Driving speed | Sampling | When Length = 0.25 mm, Vt = 0.135 mm/s |
| When Length = 0.8 mm, Vt = 0.5 mm/s | ||
| When Length = 2.5 mm, Vt = 1 mm/s | ||
| Returning | Vt = 1 mm/s | |
| Resolution | 0.001 um, if reading < 10um | |
| 0.01 um, if 10um ≤ reading ≤ 100um | ||
| 0.1 um, if reading ≥ 100um | ||
| Evaluation length | 1~2 L optional | |
| Auto Power Off | ||
| Operating conditions | Temperature: 0~50 ℃ Humidity: < 80 %RH | |
| Power Supply | 4 x 1.5v AA size (UM-3) battery | |
| Dimensions | 128 × 80 × 30 mm | |
| Weight | 280 g | |
Principle:
*When measuring the roughness of a surface, the sensor is placed on
the surface and then uniformly slides along the surface by drivingthe
mechanism inside the tester.
*The sensor gets the surface roughness by the sharp built-in probe.
*This roughness causes displacement of the probe which results in
change of inductive amount of induction coils so as to
generateanalogue signal, which is in proportion to the surface
roughness at output end of phase-sensitive rectifier.
*The exclusive DSP processes and calculates and then outputs the
measurement results on LCD.
Accessories:
Standard Accessories:
1. Main Unit
2. Small Screwdriver
3. Standard Sample Plate
4. Standard Sensor
5. Carrying Case
6. Instruction Manual
Optional Accessories:
1. USB, RS-232C data cable with software
2. Bluetooth data out put with software
In carton, via ocean/land/air
Quality assurance for one year,and forever maintainence.
