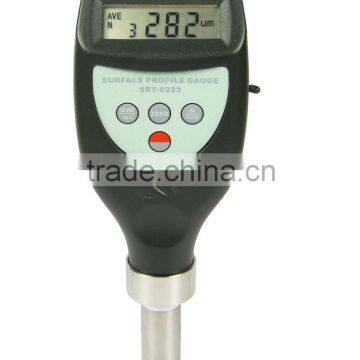

Help CenterDigital Surface Roughness( Profile) Tester SRT-6223
Related Products
-
LANDTEK Surface Roughness Tester SRT-6200SUS$ 480 - 750MOQ: 1 Piece -
LANDTEK Surface Profile Tester SRT-6223NegotiableMOQ: 1 Unit
-
LANDTEK Surface Roughness Tester SRT-6210NegotiableMOQ: 1 Unit
-
LANDTEK Surface Roughness Tester SRT-6210SNegotiableMOQ: 1 Unit
-
LANDTEK Surface Profile Gauge SRT-6223NegotiableMOQ: 1 Piece
Applications:
Widely used in production site to measure surface roughness of various machinery-processed parts, calculate correspondingparameters according to selected measuring conditions and clearly display all measurement parameters.
Features
* Be compatible with four standards of ISO, DIN, ANSI and JIS. When measuring the roughness of a surface, the sensor is placed on the surface and then uniformly slides along the surface by driving the mechanism inside the tester. The sensor gets the surface roughness by the sharp built-in probe. This roughness causes displacement of the probe which results in change of inductive amount of induction coils so as to generate analogue signal, which is in proportion to the surface roughness at output end of phase-sensitive rectifier. The exclusive DSP processes and calculates and then outputs the measurement results on LCD.
* Multiple parameter measurement: Ra, Rz, Rq, Rt.
* Highly sophisticated inductance sensor.
* Four wave filtering methods : RC, PC-RC, GAUSS and D-P.
* Small in size, light in weight and easy to use.
*Manual or automatic shut down.
* Can memorize 7 groups of measurement results and measuring conditions for later use or download to PC.
* Metric /Imperial Conversion.
* Use “USB data output” and “RS-232 data output” to connect with PC.
* Provide “Bluetooth ™ data output” choice.
Details
Display 4 digits, 10 mm LCD, with blue backlight
Parameters Ra,Rz,Rq,Rt
Measuring Range: Ra,Rq:0.005~16.00 um / 0.020~629.9 uinch
Rz,Rt:0.020~160.0 um / 0.078~6299 uinch
Accuracy ≤ ± 10%
Fluctuation of display value Not more than 6%
Sensor:
Test Principle Inductance type
Radius of Probe Pin 5 um
Material of Probe Pin Diamond
Dynamo-measurement of Probe 4 mN(0.4 gf)
Probe Angle 90°
Vertical Radius of Guiding Head 48 mm
Maximum driving stroke 17.5 mm / 0.7 inch
Cutoff length (l) 0.25 mm / 0.8 mm / 2.5 mm optional
Driving speed:
Sampling When Length = 0.25 mm, Vt = 0.135 mm/s
When Length = 0.8 mm, Vt = 0.5 mm/s
When Length = 2.5 mm, Vt = 1 mm/s
Returning Vt = 1 mm/s
Resolution 0.001 um, if reading < 10um
0.01 um, if 10um ≤ reading ≤ 100um
0.1 um, if reading ≥ 100um
Evaluation length 1~5 L optional
Auto Power Off
Operating conditions Temperature: 0~50 ℃ Humidity: < 80 %RH
Power Supply 4 x 1.5v AAA size (UM-4) battery
Dimensions: Main Unit 149 x 67 x 29 mm
Measuring Base 185 x 56 x 47 mm
Weight 485 g
carton, via ocean/land/air
Quality assurance for one year,and forever maintainence.
