Help CenterHigh Speed Aluminum Compound Panel Production Line ACP-1600-3
Related Products
-
Aluminum Composite Panel Production Line ACP-1600NegotiableMOQ: 1 Set -
Aluminum Color Coating Line CCE-1600/1300-2US$ 310,000 - 580,000MOQ: 1 Set
-
Aluminum Coil Color Coating Line CCF-1600/1300-1US$ 160,000 - 280,000MOQ: 1 Set
-
Aluminum Sheet Metal Coil Cleaning Line With CEUS$ 160,000 - 280,000MOQ: 1 Set
-
Water Repellent Machine of PEUS$ 70,000 - 300,000MOQ: 1 Set

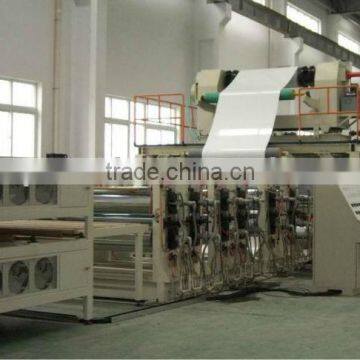

This equipment is designed for continuous extrusion of PE core board composited with upper and lower aluminum coils with high-polymer films, thermo compressed and cut into pieces of Aluminum composite panels with certain size.
Coated aluminum coil is uncoiled by uncoiling device with precise magnetic particle tension control system, which can assure aluminum coil's tension is tight and stabilify aluminium coils to compound.
Composite panel of sandwich shape with fixed-length inductor feedback signal, which makes the circinal sawing unit synchronously move towards panel's working orientation. After the cut of the aluminum panels, the circinal sawing unit soon returns to its primary position.
Design specification:
ACP specification:
Width: 1, 220~1, 575mm
Thickness: 3.0mm(adopt aluminum coil thickness 0.1~0.5mm)
4.0mm/6.0mm(adopt aluminum coil thickness 0.15~0.6mm)
2.0mm (adopt aluminium coil thickness 0.10~0.15mm)
Length: According to production requirement to set
PE coreboard: LDPE( can be the recycled material)
Coated Aluminum coil:
Width: 1, 240 ~ 1, 600 mm
Thickness: 0.10 ~ 0.50 mm
Weight: 5, 000 kg/p
Outer diameter: Φ 1200mm(max)
Inner diameter: Φ 150mm, Φ 405mm, Φ 505mm
Macromolecule film:
Width: 1, 260 ~ 1, 630 mm
Thickness: 30 ~ 50um
Weight: 60 ~ 90 kg/p
Protective film: PE/SOFT
Width: 1, 600m
Thickness: 0.1/0.2 mm
Outer diameter: Φ 300mm
Inner diameter: Φ 75mm
Weight per reel: 60kg
Production velocity: 3.0 ~ 6.0 m/min
Production throughput: (calculate as 300 days/year, 20 hours/day)
Width: 1220mm panel 1800, 000 square meters/ year
Width: 1575 mm panel 2200, 000 square meters/ year
Electric:
Electric source: 3φ -380V-50Hz
Electric power: 500kw(heating) +460 kw (power). Practical power: 520kw
Atmospheric pressure source:
Pressure: 5 ~ 7 kgf/cm2
Gas amount: 0.5 ~ 1 m3/min
Water amount: ( industrial water )
Water pressure: 1 ~ 2 kg/cm2
