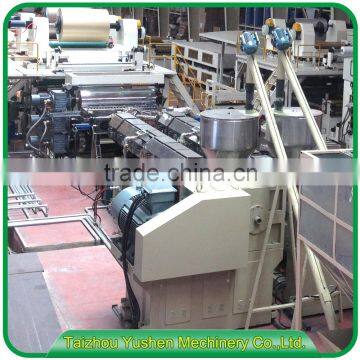

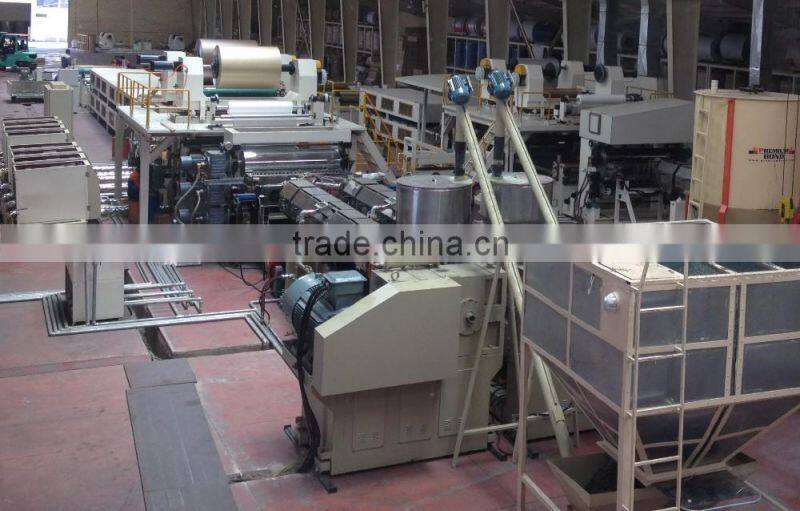

This equipment is designed for continuous extrusion of PE core board composited with upper and lower aluminum coils with high-polymer films, thermo compressed and cut into pieces of Aluminum composite panels with certain size.

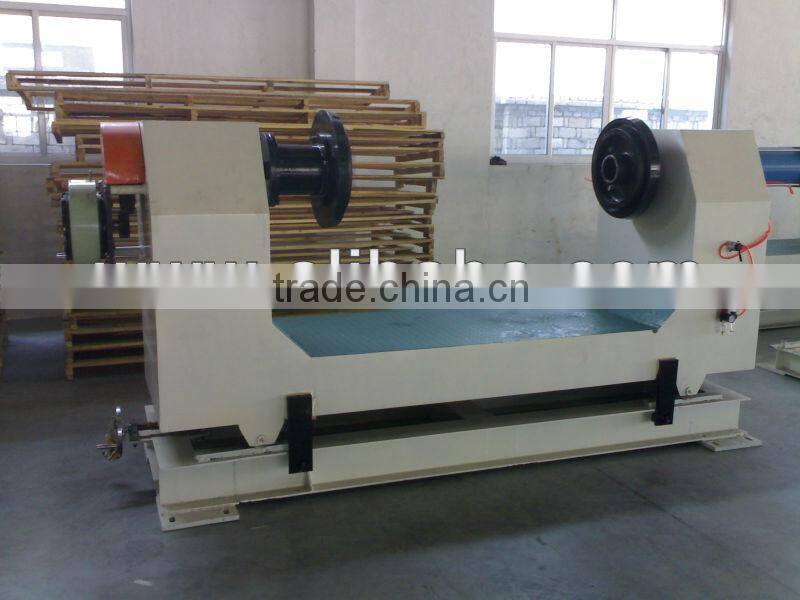

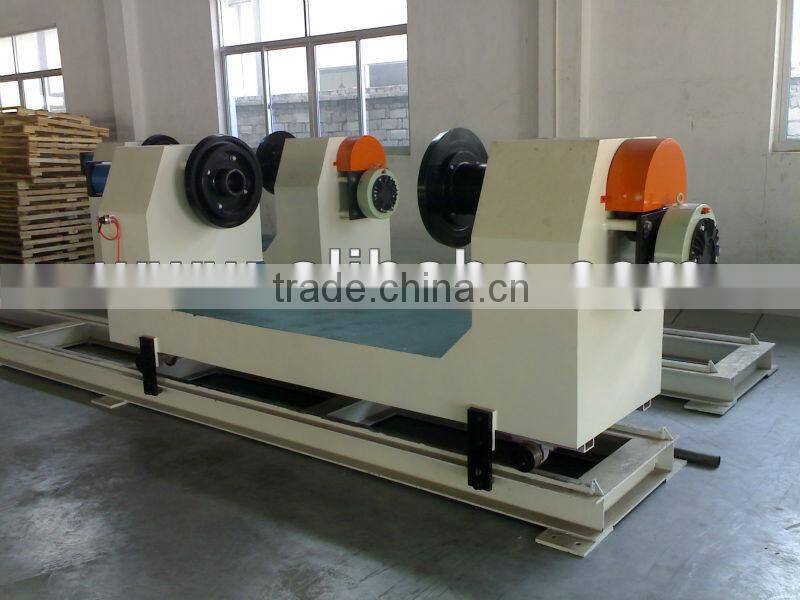

Coated aluminum coil is uncoiled by uncoiling device with precise magnetic particle tension control system, which can assure aluminum coil's tension is tight and stabilify aluminium coils to compound.
Composite panel of sandwich shape with fixed-length inductor feedback signal, which makes the circinal sawing unit synchronously move towards panel's working orientation. After the cut of the aluminum panels, the circinal sawing unit soon returns to its primary position.
Design specification:
ACP specification:
Width: 1, 220~1, 575mm
Thickness: 3.0mm(adopt aluminum coil thickness 0.1~0.5mm)
4.0mm/6.0mm(adopt aluminum coil thickness 0.15~0.6mm)
2.0mm (adopt aluminium coil thickness 0.10~0.15mm)
Length: According to production requirement to set
PE coreboard: LDPE( can be the recycled material)
Coated Aluminum coil:
Width: 1, 240 ~ 1, 600 mm
Thickness: 0.10 ~ 0.50 mm
Weight: 5, 000 kg/p
Outer diameter: Φ 1200mm(max)
Inner diameter: Φ 150mm, Φ 405mm, Φ 505mm
Macromolecule film:
Width: 1, 260 ~ 1, 630 mm
Thickness: 30 ~ 50um
Weight: 60 ~ 90 kg/p
Protective film: PE/SOFT
Width: 1, 600m
Thickness: 0.1/0.2 mm
Outer diameter: Φ 300mm
Inner diameter: Φ 75mm
Weight per reel: 60kg
Production velocity: 3.0 ~ 6.0 m/min
Production throughput: (calculate as 300 days/year, 20 hours/day)
Width: 1220mm panel 1800, 000 square meters/ year
Width: 1575 mm panel 2200, 000 square meters/ year
Electric:
Electric source: 3φ -380V-50Hz
Electric power: 500kw(heating) +460 kw (power). Practical power: 520kw
Atmospheric pressure source:
Pressure: 5 ~ 7 kgf/cm2
Gas amount: 0.5 ~ 1 m3/min
Water amount: ( industrial water )
Water pressure: 1 ~ 2 kg/cm2
Circulating amount: 0.5 ~ 1 m3/d (recycled)
Equipment total weight and square meter:
Equipment total weight: About 110, 000 kg
Equipment dimension: About50, 000 L X 94, 000 W X 4, 100 H (m
This ACP machine has high product speed,less cost,doubel extrude machine.
1.doubel 180/35 extrude machie.
2.three roller's diameter is 500mm.
pound machine roller's diameter is 450mm
4.all the motor choose Simenz or ABB.
5.motor's driver from Janpan or Taiwan
6.it has auto cutting machine.
7.the haul machine is auto too.
8.the oil heating machine has 8 teams
9.this machie is professional produce ACP
10.the speed of machine from 0.5 to 7 meter one minute
11.the extrude machine motor power is 220kw DC
