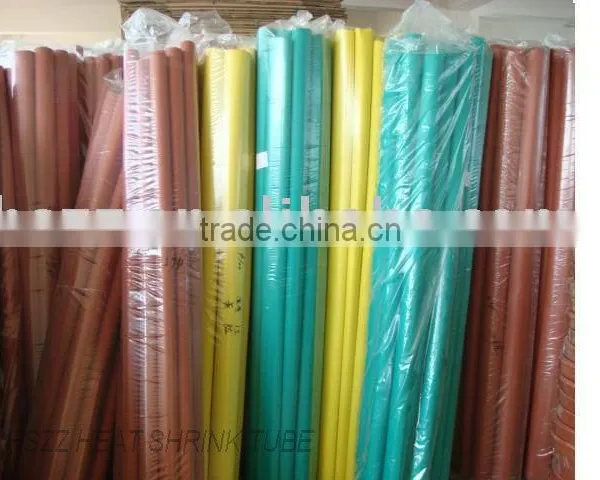

Help Center35kv Heat Shrink Sleeving /protection Sleeve/insulation Sleeve
Related Products
-
Heat Shrink Bus Bar TubeUS$ 0.185 - 12.85MOQ: 500 Meters -
Insulation Material Heat Shrinkable Busbar Protection SleevingUS$ 0.15 - 20MOQ: 500 Meters
-
Heat Shrinkable SleevingNegotiableMOQ: 500 Meters
-
High Voltage Heat Shrinkable Busbar Insulation SleeveNegotiableMOQ: 1000 Meters
-
Heat Shrinkable Busbar Tube Pipe Protection TubeUS$ 1.67 - 15.67MOQ: 500 Meters
Specifications
35kv heat shrink sleevinghigh dielectric strength:25KV/MM
flame retardant
shrink ratio 2:1
35kv heat shrink sleeving have the outstanding insulation performance, it is used to insulate wires, switchgear & bus bars offering abrasion resistance and environmental protection for conductors, connections, joints and terminals. It is typically placed over the connection to be protected and then heated.
Standard color:red, yellow, green, other colors available upon request.
Item |
Indicator |
Hardness |
less than 80 |
Fire resistant: |
Oxygen index more than 30 |
Radial shrinkage |
more than 50% |
Axial shrinkage |
less than 5% |
Tensile strength |
more than12Mpa |
dielectric strength |
more than 25KV/MM |
shrink ratio |
2:1 |
Volume resistivity |
more than 1014Ω.cm |
Operating temkperature |
-50 - +105 degree celsius |
Minimum shrink temperature |
110 degree celsius |
Breakdown elongation |
more than 400% |
Standard color |
Black, Red ,Green ,Yellow |
water absorption |
less than 0.5% |
