Specifications
heat shrink bus bar tube1.Voltage rating10KV-35KV
2.High Dielectric Strength 25kv/mm
3.Flame retardant
Heat shrink busbar tube :
Product Usage:
MPG10 series is widely used in 11KV power distribution system to protect the copper or allumin busbar, wire insulation and keep the the pipe metal from rusting and corrosion.
Product Properties:
1.Operating Temperature:-55~ 125 centi degree;
2.Fire retardant: oxygen index>30
3.Good flexibility: easily installation, suitable for complicated busbar shape.
4. Easily distinguish: in standard color green, red and yellow.
5.High security: prevent the short circuit caused by animals or casually accident by personal contact.
Specification Catalogue
Specification |
Before shrinkage(mm) |
After shrinkage(mm) |
Packaging |
|
Inner Diameter-D |
Inner diameter-d |
Thickness-t |
m/roll |
|
φ15 |
15±2.0 |
<7.5 |
2.0±0.1 |
25 |
φ20 |
20±2.0 |
<10 |
2.0±0.1 |
25 |
φ25 |
25±2.0 |
<13 |
2.0±0.1 |
25 |
φ30 |
30±2.0 |
<15 |
2.1±0.1 |
25 |
φ35 |
35±2.0 |
<18 |
2.1±0.1 |
25 |
φ40 |
40±2.0 |
<20 |
2.1±0.1 |
25 |
φ45 |
45±2.0 |
<23 |
2.1±0.1 |
25 |
φ50 |
50±2.0 |
<25 |
2.1±0.1 |
25 |
φ60 |
60±2.0 |
<30 |
2.1±0.1 |
25 |
φ70 |
70±2.0 |
<35 |
2.1±0.1 |
25 |
φ80 |
80±2.0 |
<40 |
2.1±0.1 |
25 |
φ100 |
100±2.0 |
<50 |
2.1±0.1 |
25 |
φ120 |
120±2.0 |
<60 |
2.1±0.1 |
25 |
φ150 |
150±2.0 |
< 75 |
2.1±0.1 |
25 |
φ180 |
180±2.0 |
<90 |
2.1±0.1 |
25 |
Notes: Other specifications can be offered as requested. | ||||

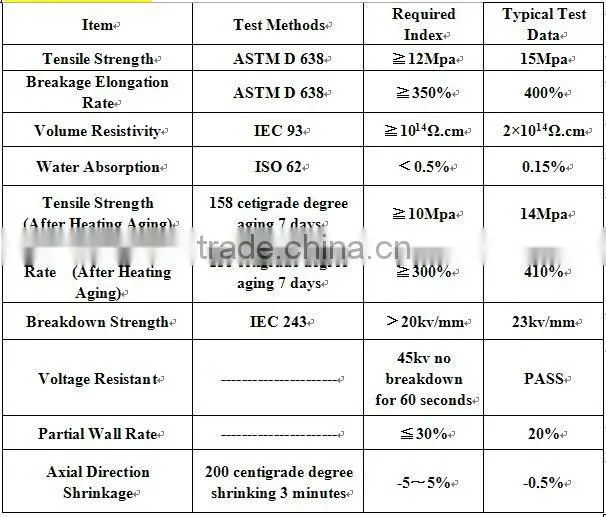

Technical Data Sheet:
Packaging and shipping:
Packaging: 200m/roll, 100m/roll, 50m/roll, 1.22m/roll etc. (Can be packed or cutted as request)
Shipping:By express(Samples), by air, by sea(Large volume)
Our Services:
1.Payment Terms:T/T transfer, Paypal, Western Union.
2.Delivery time: 10-15 days upon quantity.
3. Samples could be offered free withn 1-5 meters, but the express charge is on the customer’s side.
Company Information:
We are manufactuer of heat shrink tubes for more than 15 years. Our products are widely exported to Asia, North America and Europe etc. We promise to supply you our products in great quality and competitive price.
FAQS:
Things needs to be confirmed before quotation:
1. What type of the heat shrink tube do you need?
1.) Single wall flame retardant heat shrink tube 2.)Adhesive lined double wall heat shrink tube 3.)1KV/11KV/36KV Busbar protection heat shrink tube 4.) Medium wall heat shrink tubes (You can visit our product catergories in our website on alibaba.)
2. What size (inner diameter of the tube)?
Look at the Specification chart.
3. What Color?
Color available: black,white,red,yellow,green,blue, more colors available upon request
4.Shrink ratio?
2:1, 3:1, 4:1
