Specifications
heat shrinkable sleevinghigh dielectric strength 25KV/MM
flame retardant
shrink ratio 2:1/2.5:1
excellent insulating

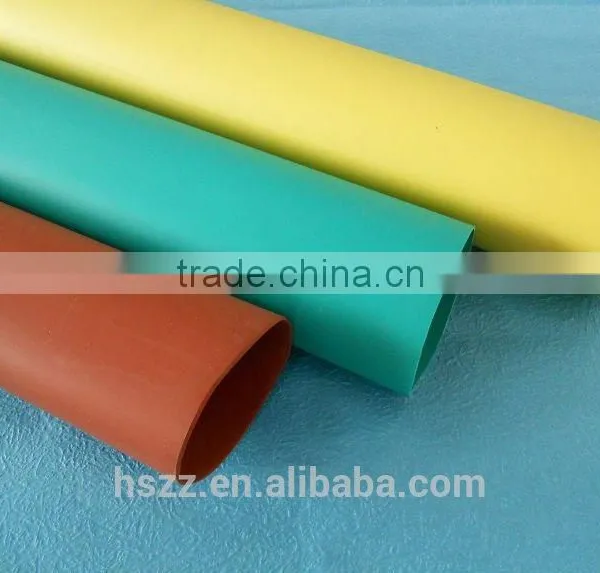

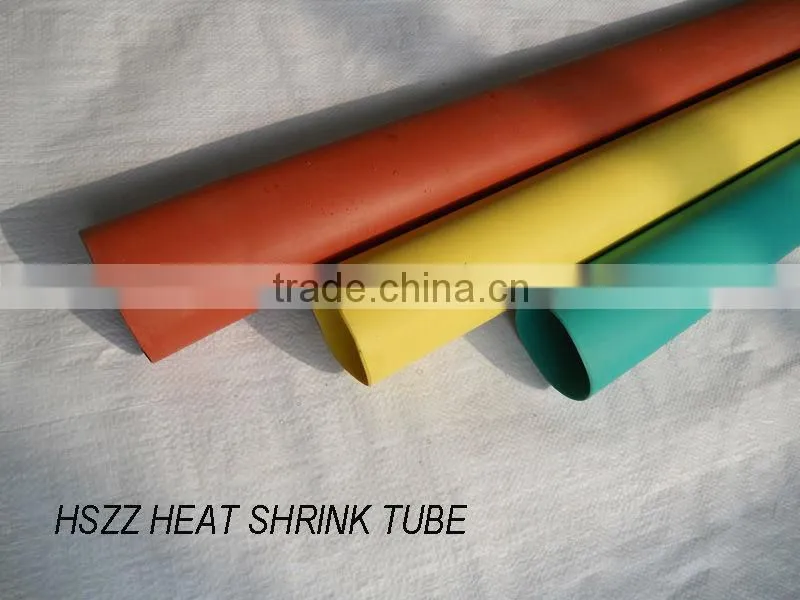

insulation material heat shrinkable busbar protection sleeving
Introduction:
Heat shrinkable sleeving have the outstanding insulation performance, it is used to insulate wires, switchgear & bus bars offering abrasion resistance and environmental protection for conductors, connections, joints and terminals. It is typically placed over the connection to be protected and then heated.
Standard color:red, yellow, green, other colors available upon request.
Technical Data:
Item |
Indicator |
Hardness |
less than 80 |
Fire resistant: |
Oxygen index more than 30 |
Radial shrinkage |
more than 50% |
Axial shrinkage |
less than 5% |
Tensile strength |
more than12Mpa |
dielectric strength |
more than 25KV/MM |
shrink ratio |
2:1/2.5:1 |
Volume resistivity |
more than 1014Ω.cm |
Operating temkperature |
-50 - +105 degree celsius |
Minimum shrink temperature |
110 degree celsius |
Breakdown elongation |
more than 400% |
Standard color |
Black, Red ,Green ,Yellow |
water absorption |
less than 0.5% |
Sizes: Available in differentsizes upon customer's request.
Packaging and shipping:
Packaging: 200m/roll, 100m/roll, 50m/roll, 1.22m/roll etc. (Can be packed or cutted as request)
Shipping:By express(Samples), by air, by sea(Large volume)
Our Services:
1.Payment Terms:T/T transfer, Paypal, Western Union.
2.Delivery time: 10-15 days upon quantity.
3. Samples could be offered free withn 1-5 meters, but the express charge is on the customer’s side.
Company Information:
We are manufactuer of heat shrink tubes for more than 15 years. Our products are widely exported to Asia, North America and Europe etc. We promise to supply you our products in great quality and competitive price.
FAQS:
Things needs to be confirmed before quotation:
1. What type of the heat shrink tube do you need?
1.) Single wall flame retardant heat shrink tube 2.)Adhesive lined double wall heat shrink tube 3.)1KV/11KV/36KV Busbar protection heat shrink tube 4.) Medium wall heat shrink tubes (You can visit our product catergories in our website on alibaba.)
2. What size (inner diameter of the tube)?
Look at the Specification chart.
3. What Color?
Color available: black,white,red,yellow,green,blue, more colors available upon request
4.Shrink ratio?
2:1, 3:1, 4:1
