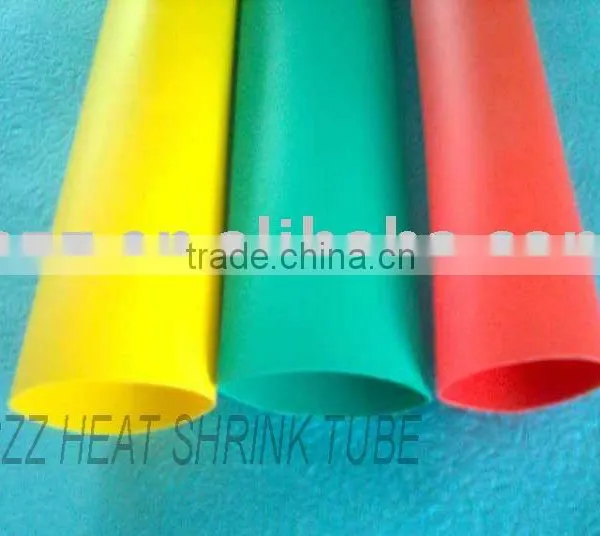

Flame Retardant Heat Shrink Tube

Name: Flame Retardant Heat Shrink Tube
Brand: ZHIZHENG
SKU: 128887987

Negotiable MOQ: 500 Meters (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Hubei, China

Brand Name:

ZHIZHENG

Model Number:

DZRS ID2-180mm

Huangshi Zhizheng Rubber & Plastic New Material Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai;Ningbo or any port in china

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Hubei, China

Brand Name ZHIZHENG

Model Number DZRS ID2-180mm

Type Insulation Sleeving

Material Other, crosslinking polyolefin

Application Low Voltage

Rated Voltage 600V

Tensile Strength more than 12MPA

flame retardant heat shrink tube

Features:

1 Operating Temperature:-55~ 125 centi degree;
2.low shrinking Temperature:Start at 70 centi degree, and shrunk totally at 110 centi degree

3.flexible,flame retardant;
4.standard color:black,white,red,yellow,green,blue, more colors available upon request

Applications:

· Wire splices and terminations

· Wire harnesses

· Mechanical protection and fire-resistant covering

· Insulation and strain relief of terminals and connections

Properties:

Heat Shrink Tube(DZRS ID1-180mm)(Shrink ratio:2:1)
Description		Test Methods	Values
Physical	Tensile strength(Mpa)	GB/T1040	≥12
	Breakage elongation rate(%)		≥200
	Tensile strength(Mpa)	UL224 158°C*168hr	≥10
	Breakage elongation rate(%)		≥200
	Low temperature flexibility	(-40°C x 4h)	No cracking
Electrical	dielectric strength(KV/mm)	GB/T1408	≥15
	Voltage resistant	UL224	2.5KV No breakdown
	volume resistivity(ohm.cm)	GB/T1410	≥1*10¹⁴
Chemical	Anti-corrosive performance	UL224 158°C*168hr	Pass
	Copper stability		Pass
	Fire resistant	UL224	VW-1
