Fire Retardant Heat Shrinkable Tubing
Negotiable
MOQ: 500 Meters (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Hubei, China
Brand Name:
Zhizheng
Model Number:
ID1~ID180 mm
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo; Shanghai or any port in China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
2:1 Fire Resistant Heat Shrink TubingNegotiableMOQ: 3000 Meters -
GOOD QUALITY Flexibility PE AND EVA Heat Shrink TubeUS$ 0.018 - 0.05MOQ: 1000 Meters
-
Polyolefin Halogen-Free Heat Shrink Tube Sleeving 5 Color and 8 SizeUS$ 0.02 - 0.08MOQ: 1000 Meters
-
2:1 Polyolefin Halogen-Free Heat Shrink Tube/Sleeve 5 Color and 8 SizeUS$ 0.02 - 0.08MOQ: 1000 Meters
-
Cheap Price Low Temperature Flame Resistant Heat Shrinkable Tube and SleevesUS$ 0.018 - 0.05MOQ: 1000 Meters
Place of Origin
Hubei, China
Brand Name
Zhizheng
Model Number
ID1~ID180 mm
Type
Insulation Sleeving
Material
Other, crosslinking polyolefin
Application
Low Voltage
Rated Voltage
600V
Tensile Strength
more than 12Mpa

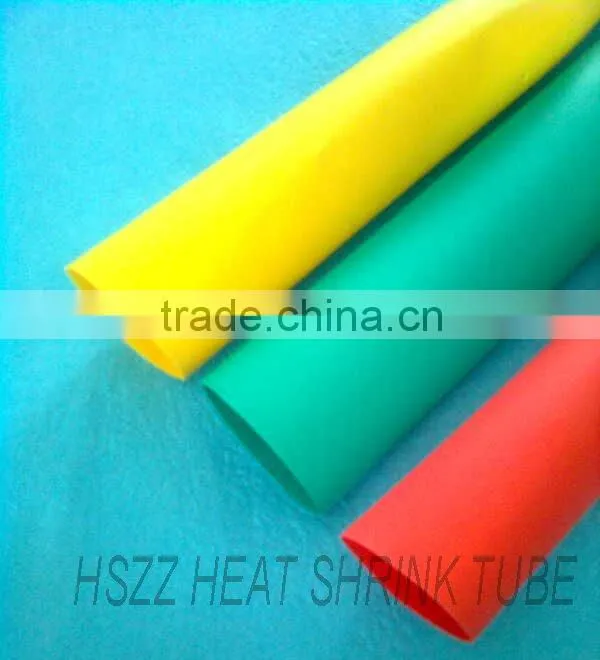

fire retardant heat shrinkable tubing
Features
1 Operating Temperature:-55~ 125 centi degree;
2.low shrinking Temperature:Start at 70 centi degree
3.flexible,flame retardant;
4.standard color:black,white,red,yellow,green,blue, more colors available upon request
Applications:
· Wire splices and terminations
· Wire harnesses
· Mechanical protection and fire-resistant covering
· Insulation and strain relief of terminals and connections
Properties:
| Heat Shrink Tubing(DZRS ID1-180mm)(Shrink ratio:2:1) | ||||
| Description | Test Methods | Values | ||
| Physical | Tensile strength(Mpa) | GB/T1040 | ≥12 | |
| Breakage elongation rate(%) | ≥200 | |||
| Tensile strength(Mpa) | UL224 158°C*168hr | ≥10 | ||
| Breakage elongation rate(%) | ≥200 | |||
| Low temperature flexibility | (-40°C x 4h) | No cracking | ||
| Electrical | dielectric strength(KV/mm) | GB/T1408 | ≥15 | |
| Voltage resistant | UL224 | 2.5KV No breakdown | ||
| volume resistivity(ohm.cm) | GB/T1410 | ≥1*1014 | ||
| Chemical | Anti-corrosive performance | UL224 158°C*168hr | Pass | |
| Copper stability | Pass | |||
| Fire resistant | UL224 | VW-1 | ||
Specifications:

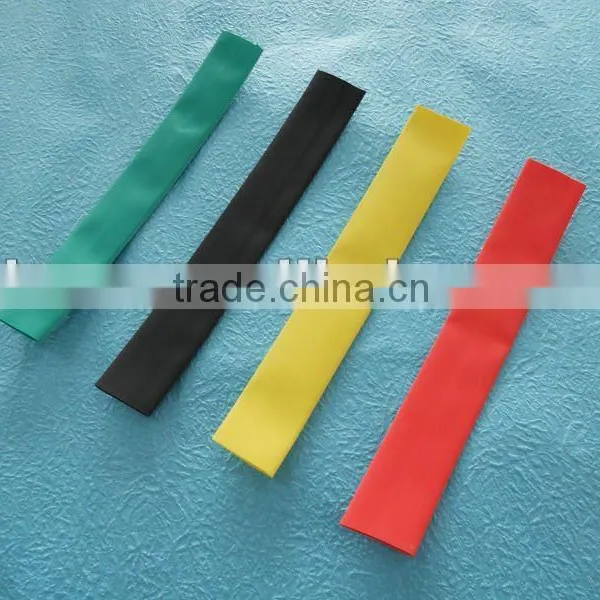

Pictures:
