Hydrology Drilling Machine Portable Water Well Drilling Machine

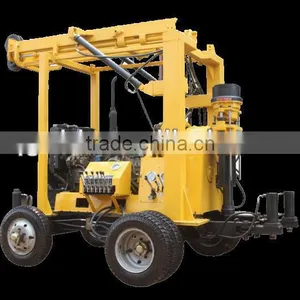

Hydrology Drilling Machine Portable Water Well Drilling Machine thumbnail-1

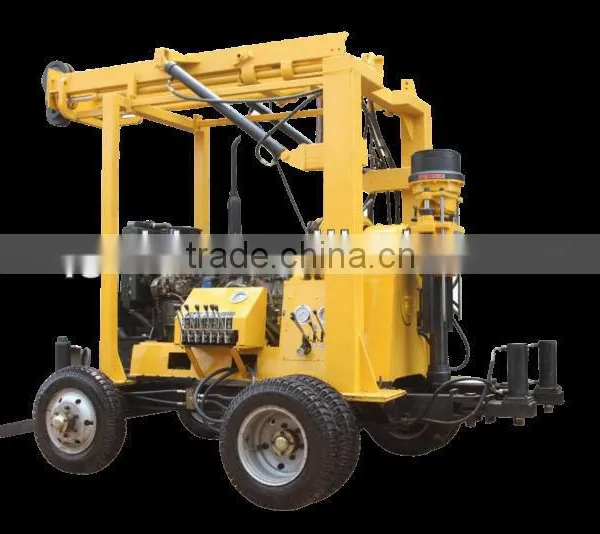

Hydrology Drilling Machine Portable Water Well Drilling Machine photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, Hydrology Drilling Machine
Power Type:
Diesel
Contact Supplier Request Quote Chat Now
Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
chongqing
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Other, Hydrology Drilling Machine
Power Type Diesel
Place of Origin Chongqing, China
Brand Name Gold
Model Number Farm Drilling GD
Usage Water Well
Voltage 220v
Power(W) 19.85KW
Dimension(L*W*H) 2250*950*1850
Weight 1200kg
Certification Iso
Warranty 1 year
After-sales Service Provided Engineers available to service machinery overseas

Farm Drilling GD Series Water Well Drilling Machine

Purpose:

CD-2 drilling machine is an important project of "the Ninth five" of original Ministry of Geology and Mineral Resources of China, is a newly designed medium-shallow deep core drilling rig, this kind of drilling machine has three typies, one is base CD-2, one is CD-2B with variable motor, another is CD-2L having large inner diameter

APPLICATIONS:

    Mainly used in geology drilling, also engineering geology drilling, water well drilling, hydrographic drilling and large diameter, grouting hole drilling. Compact structure, lightweight, easy to operate. The machine is equipped with upper and lower hydraulic chucks automatically running back without stopping in drilling. Drilling efficiently, decrease accidents
l Digital meter for speeds, drilling rate, drilling pressure, mud pressure, directly observed.
l Dished spring-lever hydraulic chuck, working safely, long working life.


Technical Specifications

drilling capacity (m) 500
spindle speed (r/min) forward 69;120;189;261;326;567;895;1235
reverse 54;255
max torque (Nm)  3210
angle range  0-90°
spindle max pull force (KN)  70
spindle max push force (KN)  50
spindle stroke (mm)  400
hoist max lift capacity with single rope (KN)  30
Oil pump  CBK1012-8-B3F
power unit electric motor Y180L-4 22KW
diesel engine 395K2 19.85KW
overal dimensions (L×W×H)(mm) 2250×950×1850
drill body weight(excluding power)(kg) 1200
