Product Details
| Place of Origin | Chongqing, China | Brand Name | Gold | |
| Model Number | GX-50 | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

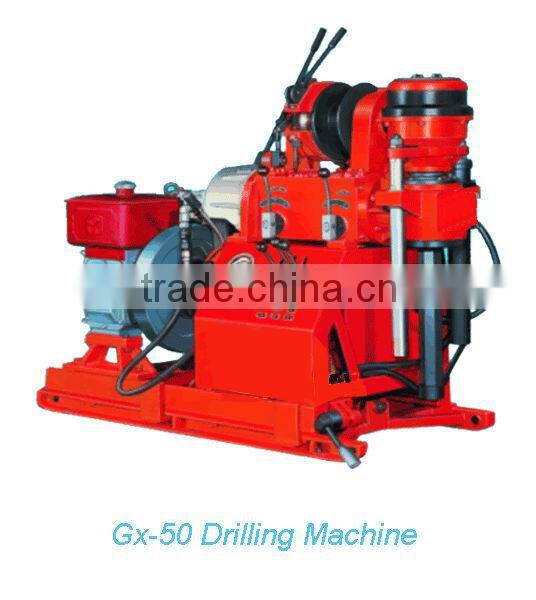

GX-50 Spindle Type Hydraulic Feed Core Drilling Machine
APPLICATIONS:
Geological drilling for railroad, highway, bridge tunnel, foundations of power station, Civil and industrial buildings, also drilling anchoring hole and blasting hole etc.
FEATURES:
1.Spindle type mechanical transmission, hydraulic feed.
2. Hydraulic retracting lets drill body away from the drilling hole.
3. Hydraulic chuck, hand-powered chuck and hand-powered cylinder chuck, they are exchangeable.
4.Friction hoist, percussion drilling, easy to pull and push casing if equipped with vibrator.
5.Advanced design, reasonable arrangement, compact structure, beautiful looking.
6. Light weight, good detachability, easy to operate.
7. Equipped with special 6mA type derrick for user ordering.
Technical Specifications
final hole dia (mm) | 150;130;110;91;75 | |
drilling capacity (m) | 20;30;50;70;100 | |
angle range | 0-90° | |
spindle speeds (r/min) | 99;236;378 | |
max torque (Nm) | 620 | |
spindle max pull force (KN) | 15 | |
spindle stroke (mm) | 400 | |
max hoist lift force with single rope (KN) | 10 | |
Oil pump | CB3-10-CFPL gear oil pump | |
Power unit | diesel engine | Changchai diesel 195 2000r/min 8.8KW |
electric motor | Y130M-4;1440r/min 7.5KW | |
drill body weight(Excluding power) | 360 | |
overal dim (L×W×H)(mm) | 1360×620×1080 | |
