Help CenterDiesel High Performance Water Well Drilling Rig for Sale
Related Products
-
MGY-80 Anchoring Drilling RigUS$ 1 - 2MOQ: 1 Set -
XY-2BL Crawler Mounted Portable Water Well Drilling Rig and Used Drilling RigUS$ 1 - 2MOQ: 1 Set
-
GX-50 Portable Drilling Rig and Water Well Rig Drilling Machine PortableUS$ 1 - 2MOQ: 1 Set
-
KDY-30G Multi-Function Hydraulic Tunnel Drilling Rig With Diamond BitUS$ 1 - 2MOQ: 1 Set
-
Portable Borehole Drilling MachineNegotiableMOQ: 1 Set
ISO9001 test passed
Manufacturer
Vendor for many national projects in china
Several decades experience
1. Specification
Specifications | ||
Unity machine parameter | ||
Drilling depth |
30--200m |
|
End hole caliber |
500-75mm |
|
Drill rod caliber |
50mm |
|
Drilling angle |
90°~75° |
|
Drill weight (No include power) |
910kg |
|
Unity machine dimensions |
2.5×1×1.3 2.5×0.9×1.3m |
|
Spindle | ||
spindle speed |
64,128,287,557r/min |
|
Spindle stroke |
450mm |
|
Hoist | ||
Max.single line hoisting capacity |
2500kg |
|
Single line lifting speed |
17,35,75,151r/min |
|
Tightrope caliber |
12.5mm |
|
Tightrope cubic measure |
35m |
|
Hug floodgate caliber |
254mm |
|
Hug folldgate belt width |
70mm |
|
Distance between drill and hole |
400mm |
|
Mud pump - Specifications | ||
Type |
Horizontal single urn twin-action |
|
Displacement |
170L/min |
|
Diesle engine |
S1115 model 22HP |
|
Electric motor |
Y160M—4 15kw 1440r/min |
|
Maximum pressure |
1.5Mpa |
|
Work pressure |
0.7Mpa |
|
Water inlet caliber |
40mm |
|
Water to exit caliber |
30mm |
|
Triangle conveyer belt |
B1728mm |
|
Come to our factory and learn the usage of the advanced product is highly welcomed!
2. Products
(1) HZ-200YY water well drilling machine
The drilling rig is mainly used for geological general investigation and exploration, road and tall buliding foundation exploration, kinds of hole in concrete structure, river levees, subgrade grounting hole, drilling and driect grouting, civil wells and earth temperature central air-conditioner,etc.

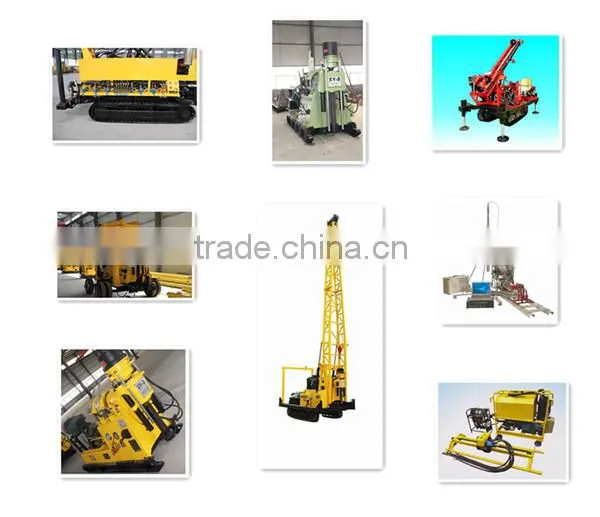

(2)Other types:
3. About us
(1) Company profile:
Chongqing Gold Mechanical & Electrical Equipment Co.,Ltd is a high-tech enterprise for researching, designing, developing and producing which is specialized in geological detector, including Well Camera, Drilling Rig, inclinometer, Seismograph, Well Logging, Geophysical Exploration Equipment.
With a lot of national projects applied for many decades. Also, we can develop new items according to your requirement.
(2) Product certificate passed:
(3) Our team services:
4. Packaging and Delivery
Packaging Detail: Normally one set per wooden case, or as your requirement.
Depend on the design and final quantity.
5. Why You Choose Us
High quality and moderate price are the superiority. Durable and Practical in use makes it economical in the end.
We are specialized in this particular line of business for many decades.
Our top service can make the fast and prompt delivery possible.
6. Our Service:
Getting the requirements from you--->make suggestions for your approval--->confirm the equipments--->confirm the order--->make the products accordingly--->QC--->Packing--->arrange shipment--->after-sale service.
WELCOME TO VISIT US AND BUILD A RELATIONSHIP.
