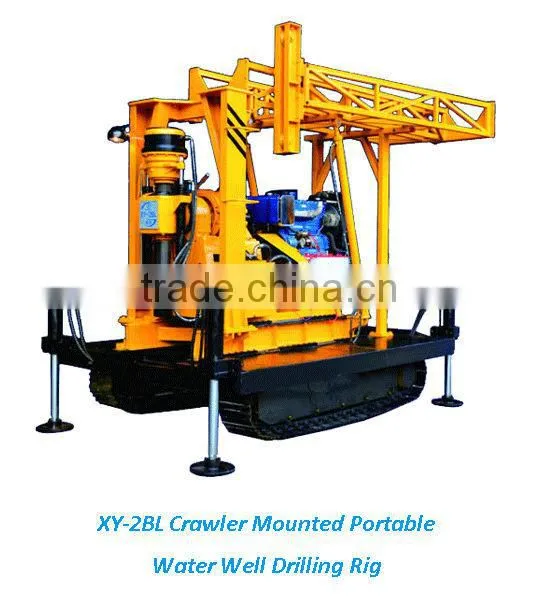

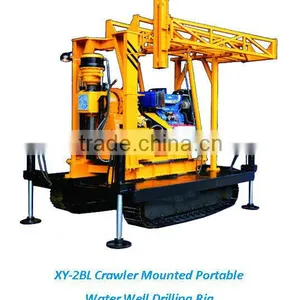

XY-2BL Crawler Mounted Portable Water Well Drilling Rig
Applications:
XY-2BL rig is developed based on our XY-2 core drilling rig , integrating drilling rig, crawler, mud pump, console rack and other devices into the integral one. It is mainly targeted at the shallow-medium hole of geology core drilling, and where the mobility is important. It is modular and integral drilling rig.
Features:
- Integrated crawler, rig, mud pump, console racks;
- Crawler, the whole support rigs and tower with ups and downs are controlled by the hydraulic system of the rig, easy to operate and transport;
- The whole set of equipment can move to relocate, improve drilling efficiency, reduce labor intensity;
- The tower has the function of ups and downs , folding , easy walking and transportation;
- Rig with more (8 block) the speed of progression and reasonable speed range, and the relatively large low-speed torque, wide range of application.
- Rig has two reverse gear speeds, easy to deal with incidents;
- Rig has longer feed stroke as long as 600mm, will help improve drilling efficiency and reduce blocking drill, burning accidents;
- Rig has double oil pump, less power consumption, lower oil temperature of hydraulic system;
- Rig has few control levers, rational layout, flexible and reliable operation;
- In addition there is a normally closed upper hydraulic chuck on , but also with lower mechanical man-powered chuck.
Technical Specifications
1 |
Drilling depth (NQ drill rod) |
Approximately 500m |
|
||
2 |
Spindle speed |
Forward |
57; 99; 157; 217; 270; 470; 742; 1024 |
|
|
Reverse |
45; 212 r/min |
|
|||
3 |
Spindle Maximum torqu |
3200 N·m |
|
||
4 |
Spindle max pulling force |
60 KN |
|
||
5 |
Spindle stroke |
600 mm |
|
||
6 |
Max. lifting force of the hoist with single rope |
30 KN |
|
||
7 |
Inner diameter of the spindle |
96 mm |
|
||
8 |
Retraction distance |
305 mm |
|
||
|
Retraction distance for the host drill rig |
330 mm |
|
||
|
Retraction distance for both drill rig and tower |
160 mm |
|
||
10 |
Oil pump |
SCB32/12 double gear pump |
|
||
11 |
|
engine power |
30 KW 1500 r/min |
|
|
electric motor |
22KW 1470 r/min |
|
|||
12 |
Crawler maximum walking speed |
1.2 km/h |
|
||
13 |
Crawler Climbing capacity |
25°, no more than 25 ° |
|
||
14 |
Tracked Ground pressure |
0.042 MPa |
|
||
15 |
Rig height |
8 m |
|
||
16 |
Hook load of the tower |
29.4 kN |
|
||
17 |
Max.static load of crown block beam |
58.8 kN |
|
||
18 |
Quantity of pulley |
2 |
|
||
19 |
Angle range of tower ups and downs |
0°~ 90° |
|
||
20 |
Rig Dimensions ( tower horizontal position ) |
(L*W*H) 4450×2166×3080 mm |
|
||
21 |
Total weight |
about 5500 kg |
|
||
